Lesson 6: Creating Pipe Markers
Delete a Label File
Lesson 6: Creating Pipe Markers
In this lesson, you will learn how to create, save, open and delete a standard pipe
marker label.
Note: To create a rollform or symbol/arrow pipe marker, see the user manual.

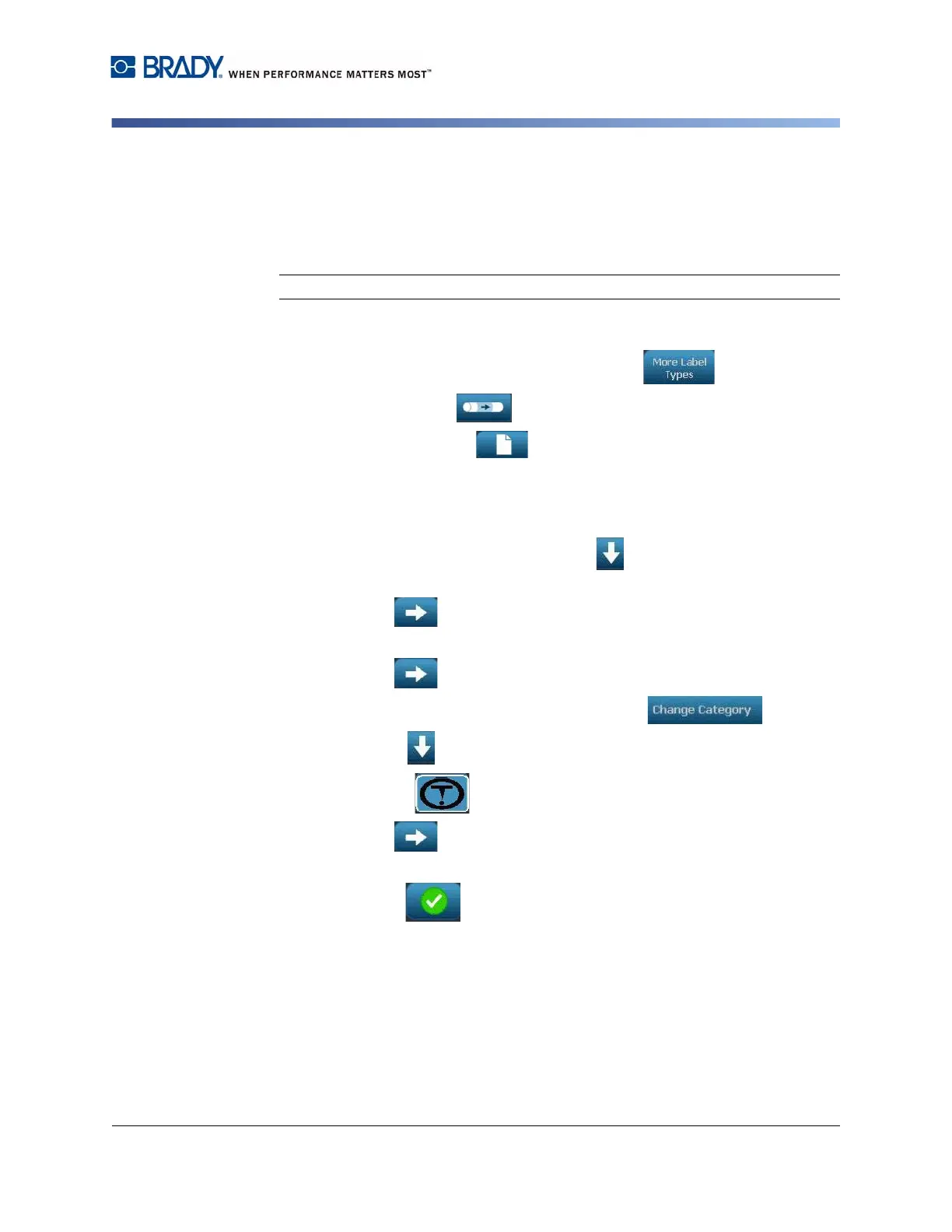

To create a standard pipe marker:
1. From the Home page, select More Label Types .
2. Select Pipe Markers . The Pipe Marker application will load.
3. Select Create New File .
4. From the Pipe Marker Style dialog, select Standard
5. In the Dimensions dialog, choose: 4 in (>10 in).
6. Select Next.
7. In the Pipe contents dialog, use the down arrow to scroll to the category
Other.
8. Select Next .
9. In Legend line 1, enter: TOXIC.
10. Select Next .
11. In the Graphics dialog, select Change Category .
12. Use the down arrow to scroll to the category WHMIS.
13. Select the icon .
14. Select Next .
15. In the Arrows dialog, select Left.
16. Select Finish . The new pipe marker is displayed in the Editor.
