DCen mini DIGIMIC®
10 Copyright by BRÄHLER ICS AG

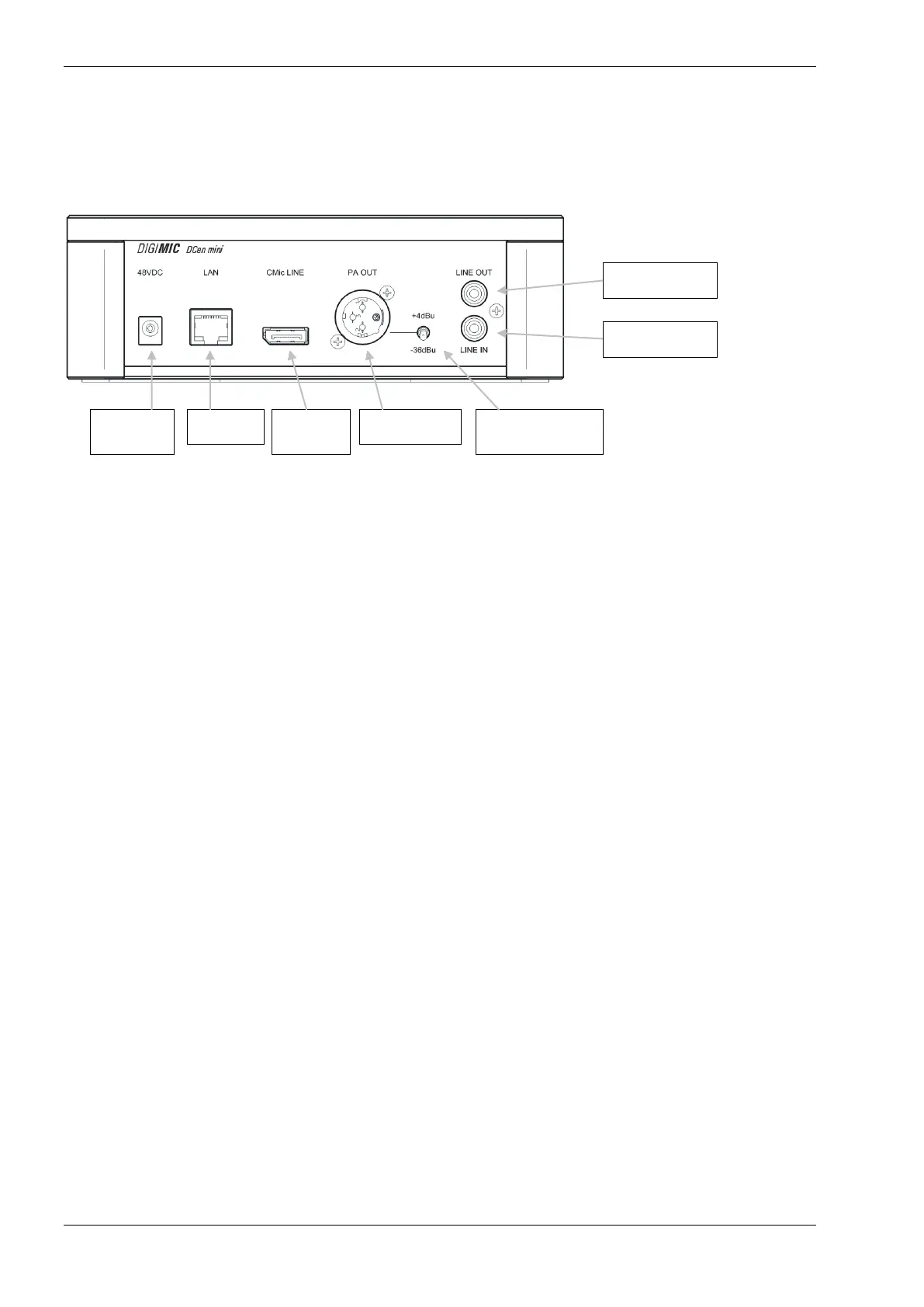

Connections (rear side)
The digital central unit DCen mini is designed for easy handling without complex settings.
The connections are shown below:
1. 48VDC (Power Supply)
Connection for the included AC adapter. Please use this certified power supply only.
2. LAN (RJ45)
LAN connection for integration into your network to operate by remote control via software (DHCP client)
3. CMic LINE (Displayport®)
Connection for up to 25 units of the type CMic, CChair, CMic CSV, CChair CSV or DMic, DChair via adapter
cable
4. PA OUT (XLR)
Controlled, balanced Output for an external PA system
5. Toggle switch
Switch for different level at PA OUT:
microphone level (-36 dBu)
line level (+4 dBu)
6. LINE OUT (Cinch)
Line Out asymmetric unregulated: Cinch connector for signal transfer to external devices such as mixers.
7. LINE IN (Cinch)
Line Input (-12 to +14 dBu): Cinch connector for input of signals from external devices
1. power
supply
2. network
3. delegate
units
4. PA Output
5. toggle switch,
Mic/Line level
6. Line Output
7. Line Input
