Application examples

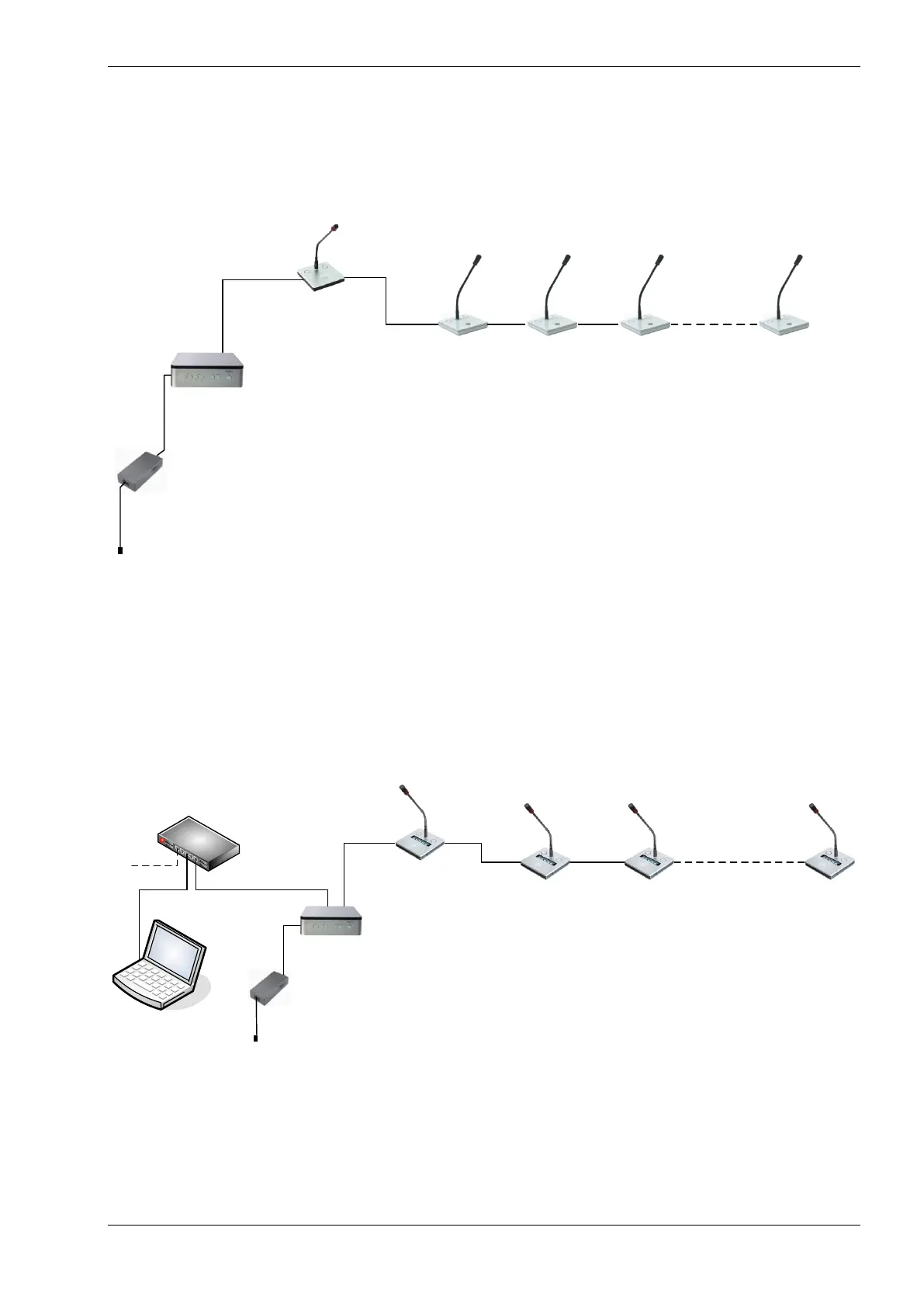

The cabling is limited to connecting the external power supply, and the delegate units with each other. Here
are shown some of the many possibilities.
Microphone units Classic:
CChair
DCen mini
CMic CMic CMic
CMic
100 – 240 VAC
Power Supply
The chain consists of Chairpersons’ microphone CChair and delegate units CMic. The connections are done
via lockable DisplayPort® connectors. Appropriate extension cables are available in different lengths.
Microphone units Classic CSV (voting)
For operation in a LAN, you may use CMic CSV units for voting purpose. Using the PC software DIGIVOTE
basic interactive several opinion polls or voting are done.
CMic CSV
DCen mini
CMic CSV CMic CSV
CChair CSV
LAN
Switch /
Hub
PC Software
• DV basic interactive
• DMicControl
100 – 240 VAC
Power Supply
With the PC software DMicControl the connected microphones can be controlled very easy. Using this
software more microphone modes such as MAN (manual control) are available.
