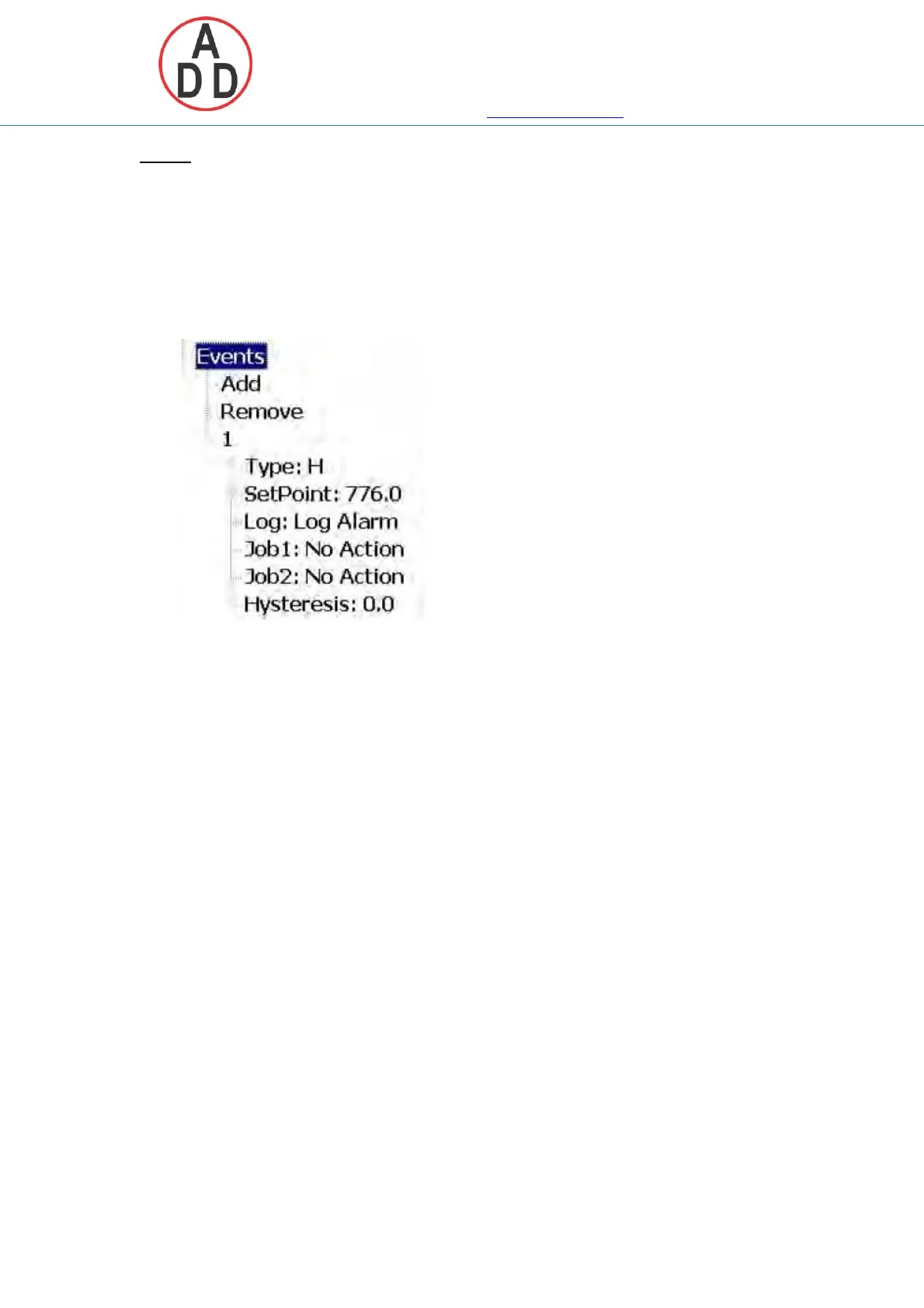

Events
The Event is frequently used for Alarm purpose. Event can also be used for digital
output DO, Timer, Totalizer, Counter or Report.
Maximum five events are possible to set for each Analog Input
Press “Add” to add new event
Press “Remove” to remove selected event
Type: There are various types of H, L, HH, LL, Dev+, Dev-, Error to be selected for
job or
Alarm purpose
H: High limit. When the process is over high limit, the alarm or job is actuated.
L: Low limit. Any the process is lower than low limit, the alarm or job is
actuated
HH: High high limit, to set up another limit higher than high limit for double
warning.
LL: Low low limit, to set up another limit lower than low limit for double
warning.
Dev+: Trigger event on positive deviation of process value. The job or alarm is
activated when process value is deviated by greater than (set point) earlier
process value.
For ex: Set point, Type: Dev +, Value: 10
At 10.00.01 Hrs, Tag1=40
At 10.00.02 Hrs, Tag1 = 51
Then, job or alarm is activated
65
