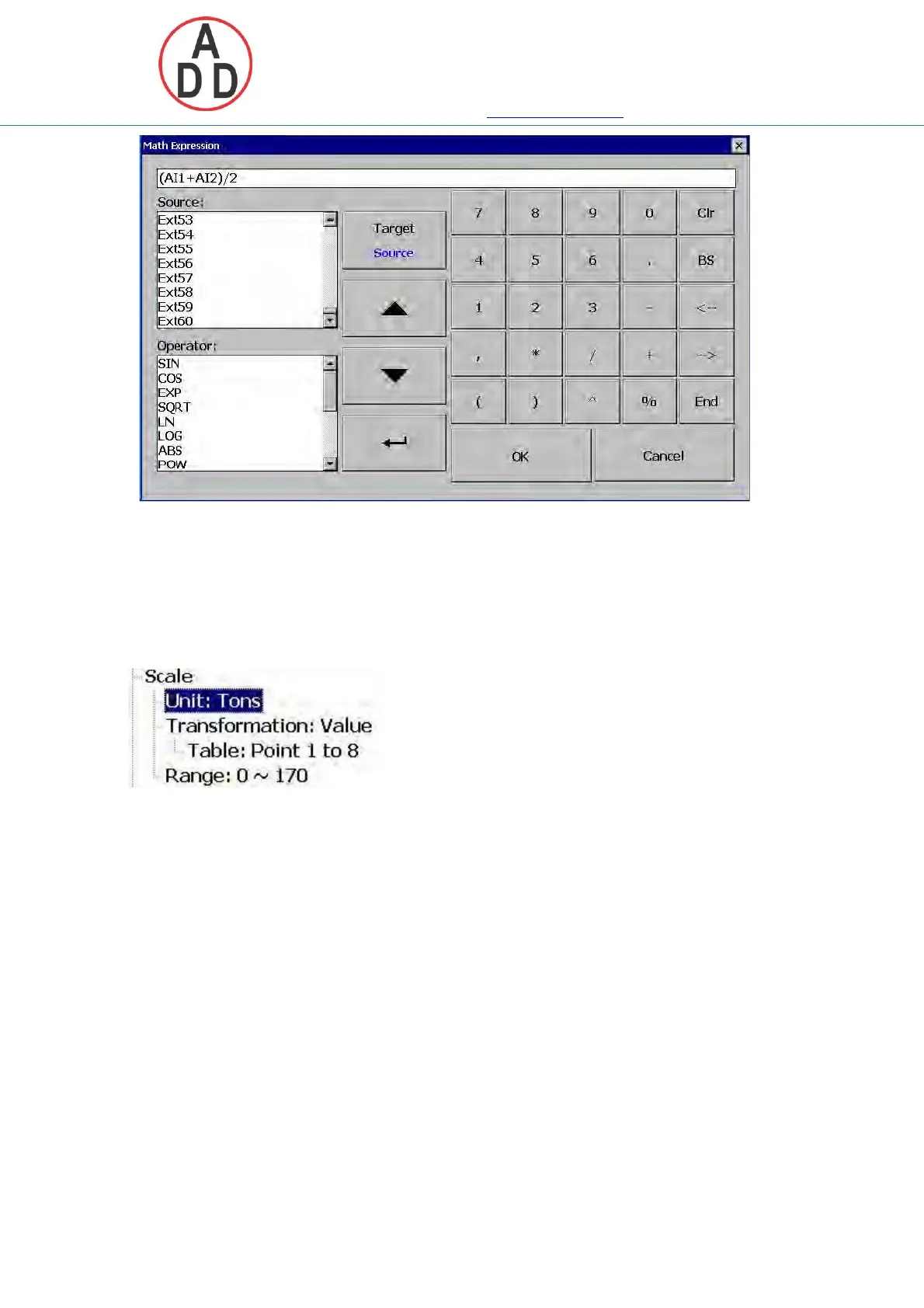

The Source covers all available Analog inputs, Digital Inputs, Math inputs,
external channels.
The Operators are Mathematics expressions described below.
Use Source, Operator and keyboard to define the Math equation.
Transformation: Select disable, value or Math channel. This function mainly used to
display process values obtained from Non-linearization table
Table: Select disable, value or Math channel
Maximum 64 rows can be entered in the Transformation table
Ex: A chemical tank is with non-linear shape. Level is 0 to 1400 cms. The
Recorder should display 0 to 170 Tons as per following table
71
