Example 3: Communicate recorder with mobile phone through SMS
Mobile receiving process value and alarm messages from recorder via GSM8000
By using analog output card AO 183I and GSM controller GSM8000, it is able to retrieve process values
and get alarms from the recorder to your Mobile via SMS through GSM system.
Hardware requirements
1. Paperless recorder VR06
2. Analog output card AO 183I
3. GSM 8000 controller (8 AI, 8 DI & 8 DO)
Set up at paperless recorder
Ex: RTD is connected at channel 1 in the recorder. (AI1)
Retransmission is required for Analog input1 say AI1
Use AO183I – Analog output card for Re transmission purpose. It is 3-channel analog output card.

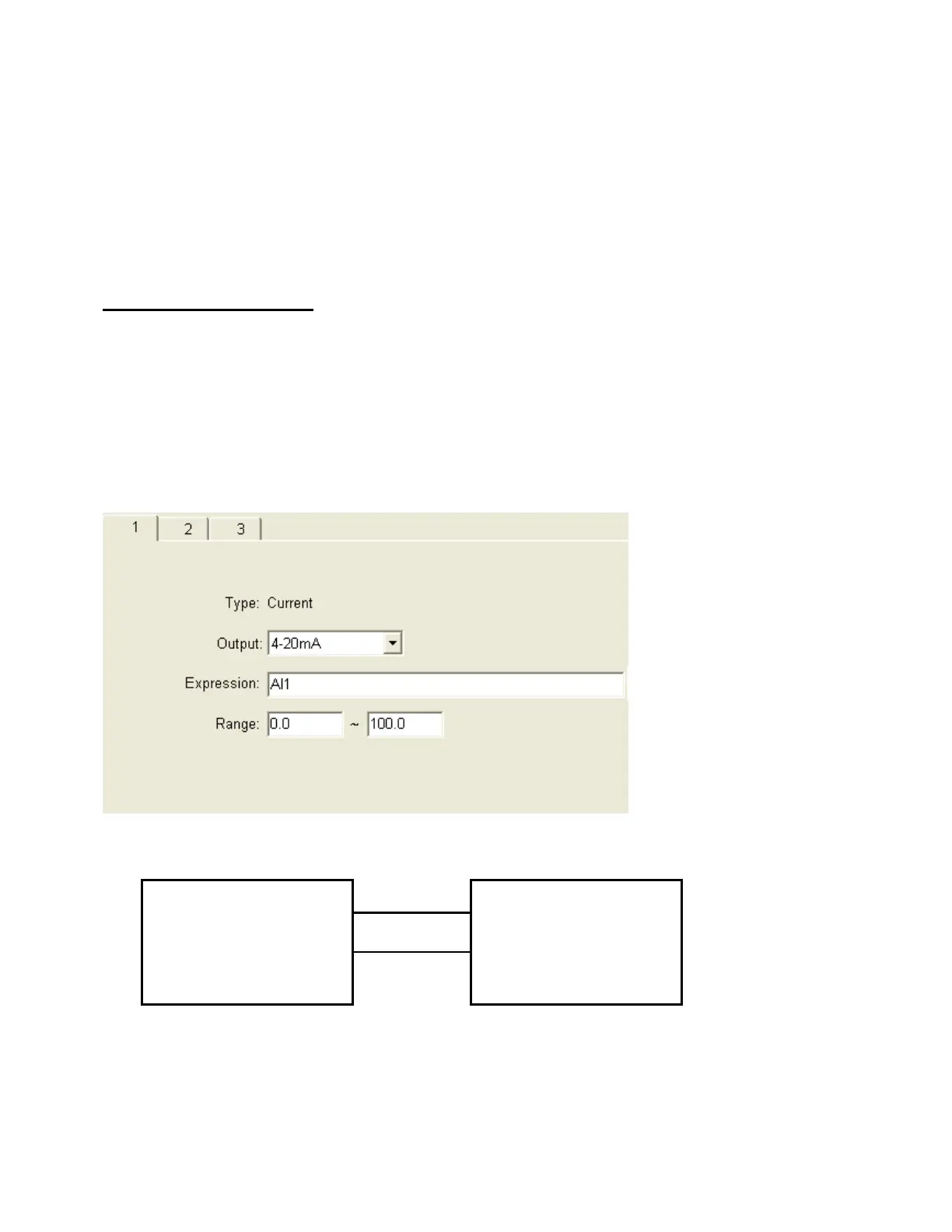

Configuration of Analog output card
Channel 1:
4-20 mA
AO 183I: 3 channel analog output retransmission card
GSM 8000 controller: 8 Analog inputs, 4-20 mA
GSM 8000 controller set up
Insert SIM card in GSM controller, set up the controller as per user manual
AO 183I +
Paperless Recorder
-
+ GSM 8000
Controller
-
