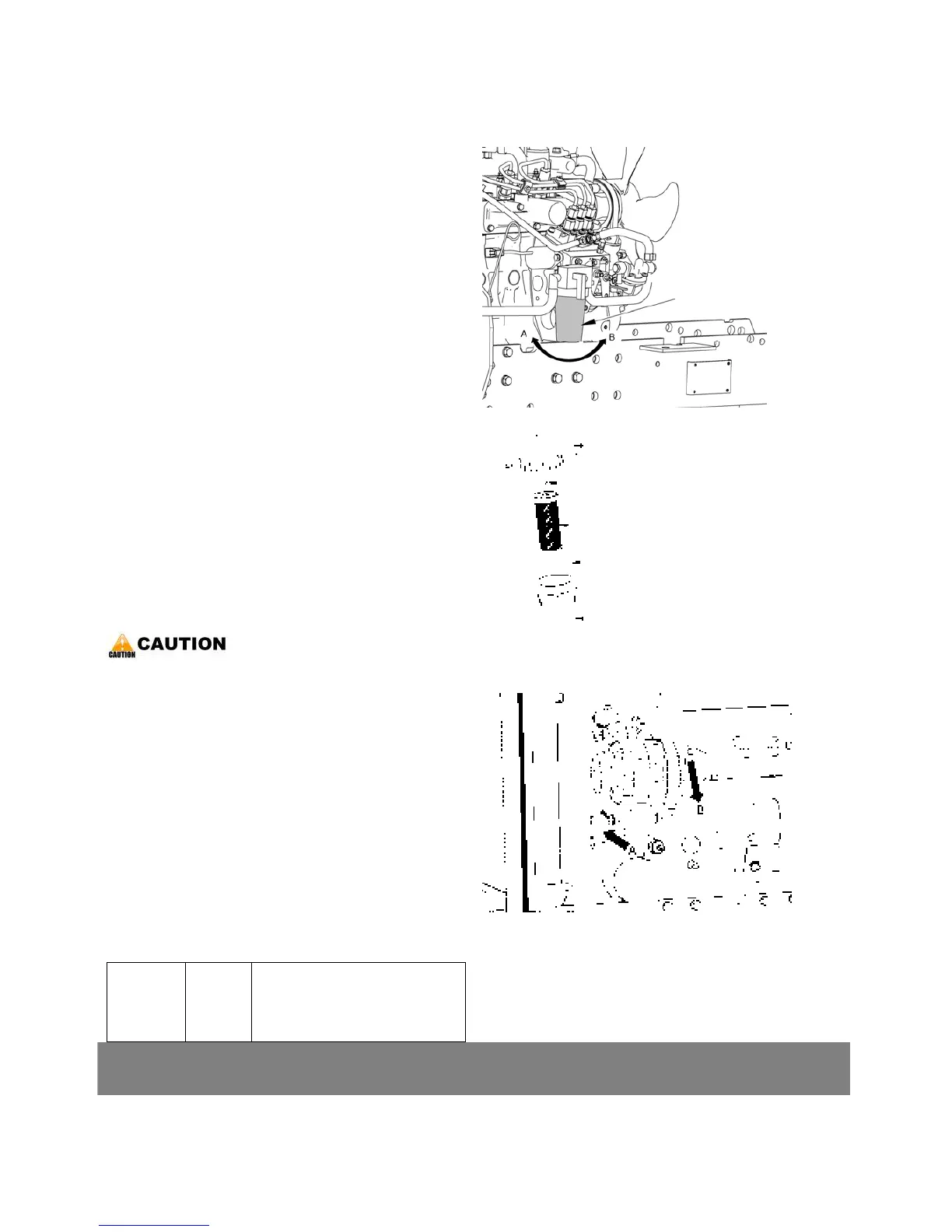

*. PART NAME
1) Filter bracket
2) Fuel filter bowl
3) O-ring
4) Filter element
5) O-ring
A) Loosen
B) Tighten
< Cleaning fuel filter >
This job should not be done in the field, but in a
clean place.
1. Loosen and remove the fuel filter bowl(2), and
rinse the inside with kerosene.
2. Take out the filter element(4) and dip it in the
kerosene to rinse.
3. After cleaning, reassemble the fuel filter, keeping
out dust and dirt.
4. Bleed the fuel system.
▶ NOTE
1) When the fuel filter bowl has been removed, fuel
stops flowing from the fuel tank. If the fuel tank
is almost full, however, the fuel will flow back
from the fuel return pipe to the fuel filter. Before
checking the above, mark sure the fuel tank is
less than half-full.
< Checking fan belt tension >
▶ Be sure to stop engine before checking belt
tension.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to the belt
between pulleys.
3. If the tension is incorrect, loosen the alternator
mounting bolts and, using a lever placed
between the alternator and the engine block,
pull the alternator out until the deflection of the
belt falls within acceptable limits.
4. Replace fan belt if it is damaged.
Fan belt
tension
Factory
spec.
A deflection of between 7 to 9mm
(0.28 to 0.34 in.) when the belt is
pressed in the middle of the span.
*. PART NAME
1) Adjusting screw 2) Tension bolt
A) Check the belt tension B) To tighten
