TRANSMISSION
KUKJE MACHINERY CO., LTD.
67

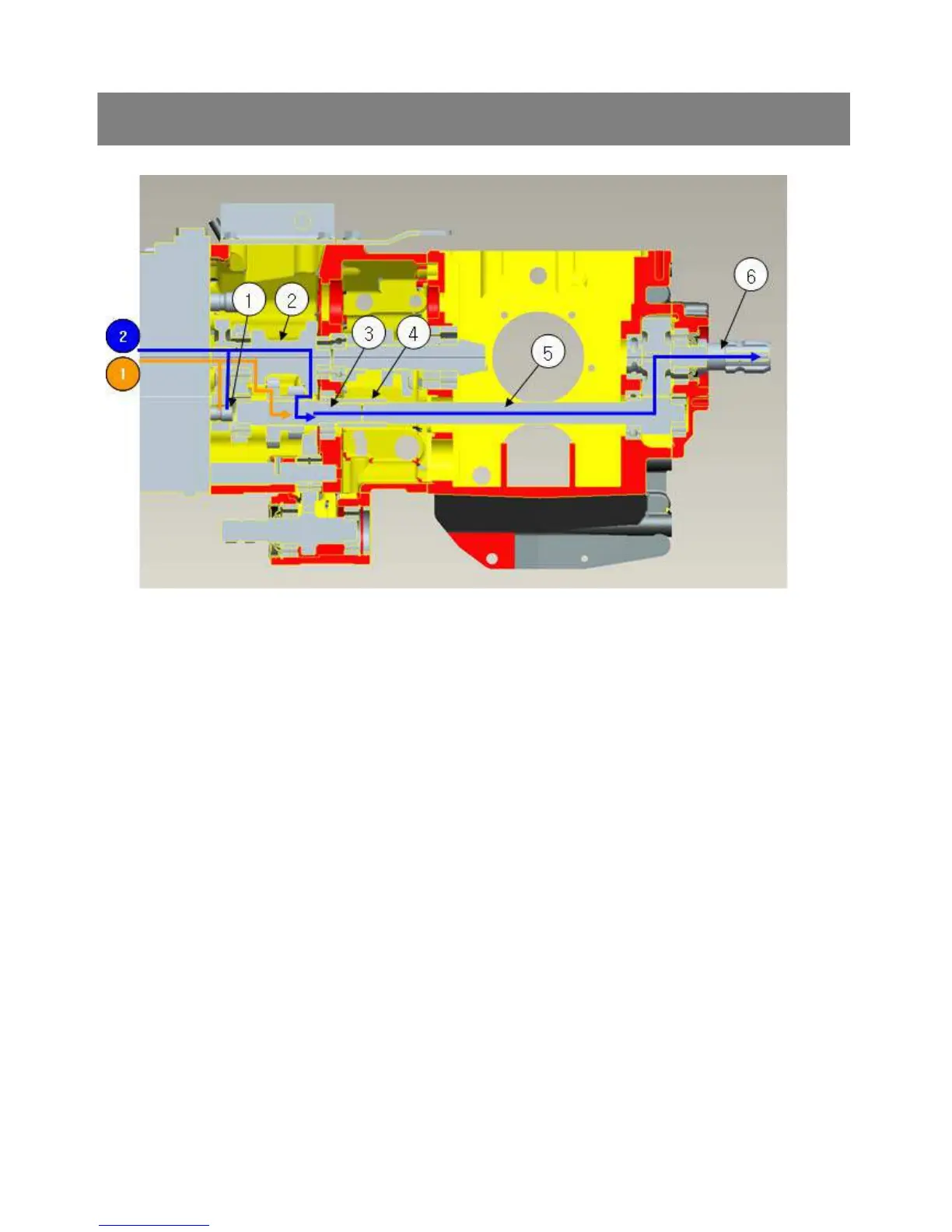

2. POWER TRAIN FOR PTO GEAR
2) HST Type
1) HST pump shaft 2) Gear shaft 3) Shaft
4) Coupling 5) Gear shaft 6) Shaft PTO
① : Low (540 rpm) ② : High (960 / 2500 rpm)
