CLUTCH
KUKJE MACHINERY CO., LTD.
44
4. CHECKING, DISASSEMBLING AND SERVICING

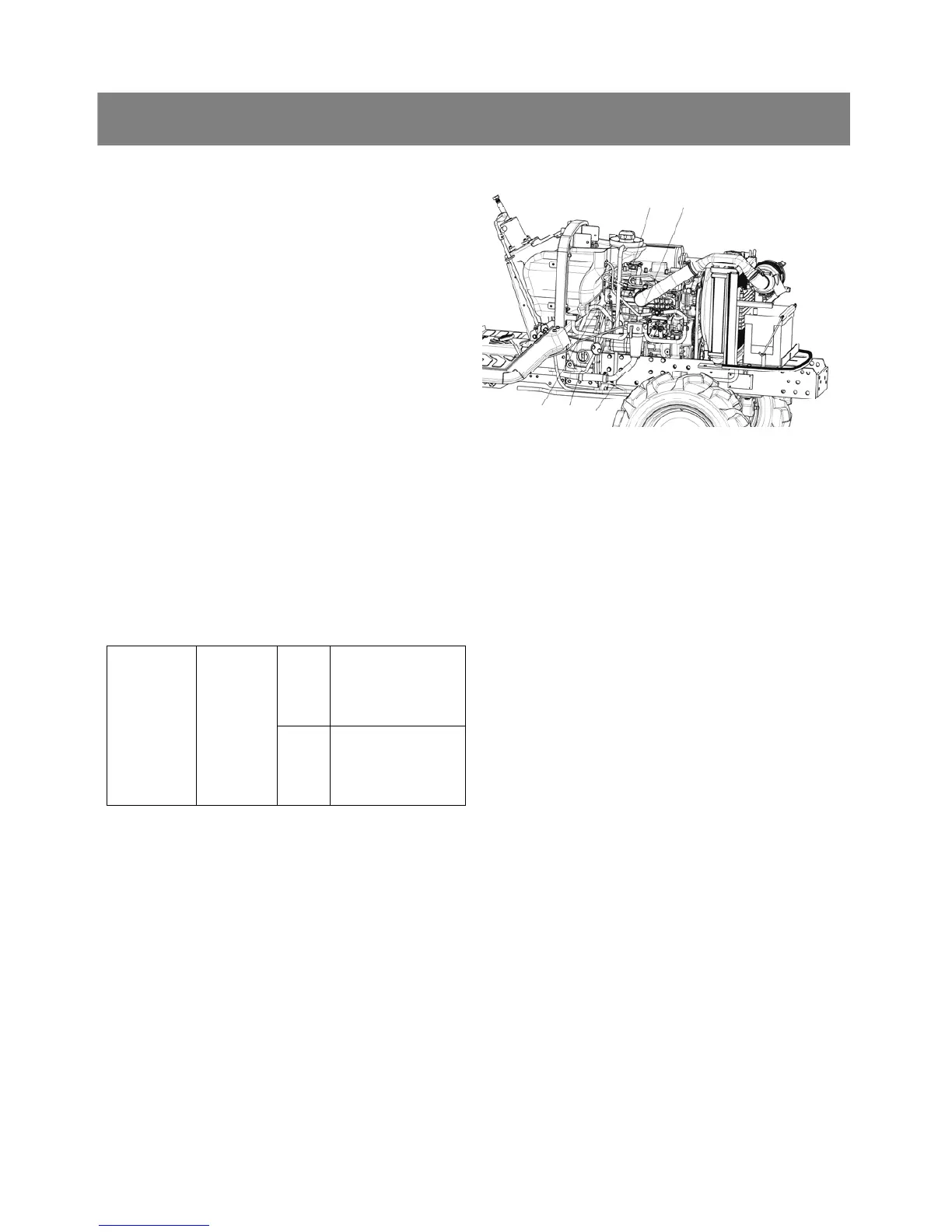

*. PART NAME
1) Power steering delivery pipe
2) Suction hose
3) Delivery pipe
4) Engine stop solenoid
5) Accelerator rod
< Separating the engine from clutch housing >
1. Disconnect the connector for the engine stop
solenoid(4)
2. Disconnect the three point hitch delivery pipe(3),
suction house(2) and PST delivery pipe(1).
3. Disconnect the glow plug lead wire and thermo
sensor lead wire. And then disconnect the
connector for dynamo and starter motor lead
wire.
4. Disconnect the accelerator rod(5).
5. Place the jack under the center frame.
6. Hoist the engine by the chain at the engine
hook.
7. Remove the engine mounting screws and
separate the engine from the clutch housing.
▷ Reassembling
9 Apply liquid gasket to join face of the engine
and clutch housing.
M8
17.7 to 26.6 Nm
1.8 to 2.1 kgfm
13.0 to 15.2 ft-lbs
Tightening
Torq ue
Engine
mounting
screw
M10
48.1 to 55.8 Nm
4.9 to 5.7 kgfm
35.5 to 41.2 ft-lbs
(1)
(3)
(2)
(5)
(4)
