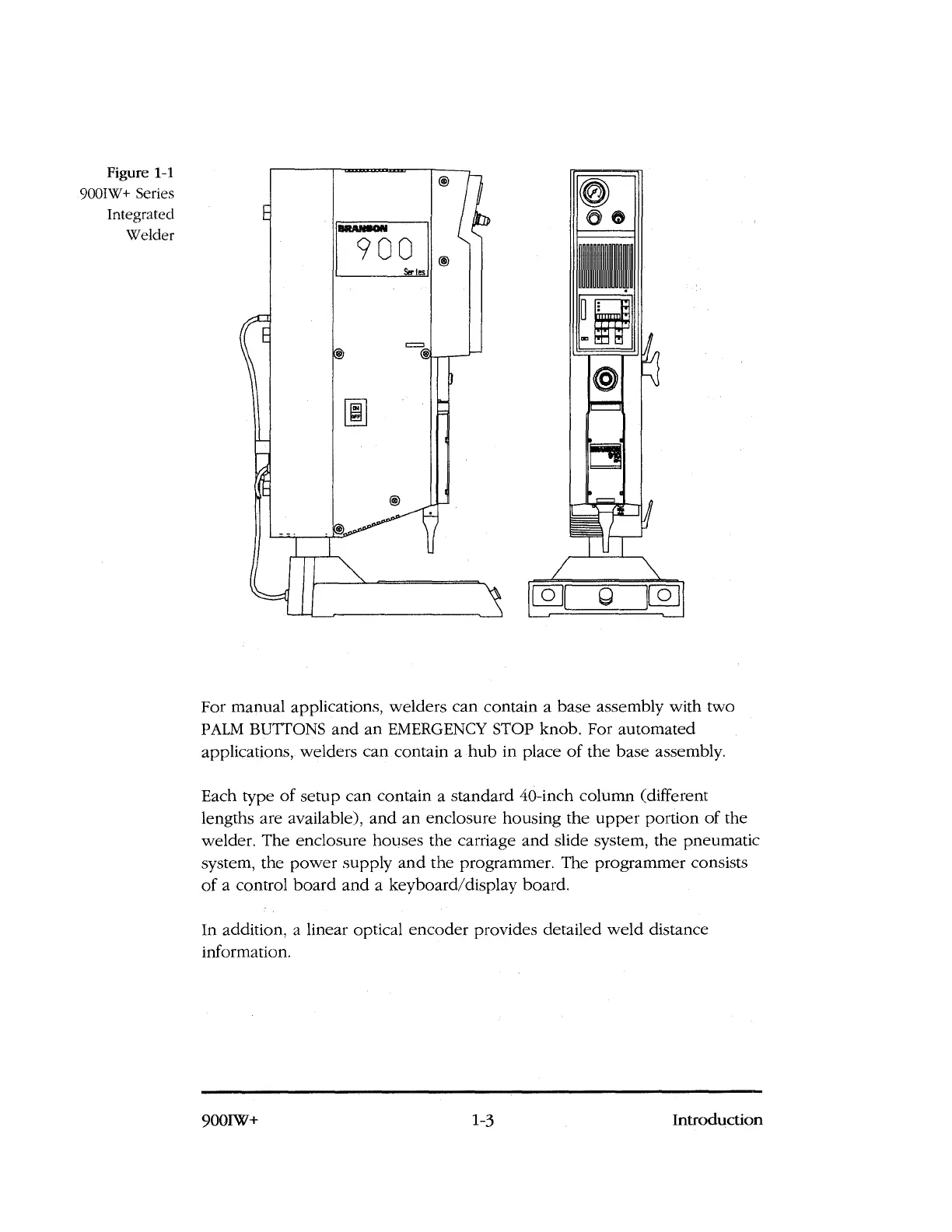

Figure 1-1
900IW+ Series
Integrated
Welder
0
For manual applications, welders can contain a base assembly with two
PALM BUTTONS and an EMERGENCY STOP knob. For automated
applications, welders can contain a hub in place of the base assembly.
Each type of setup can contain a standard 40-inch column (different
lengths are available), and an enclosure housing the upper portion of the
welder, The enclosure houses the carriage and slide system, the pneumatic
system, the power supply and the programmer. The programmer consists
of a control board and a keyboard/display board.
In addition, a linear optical encoder provides detailed weld distance
information.
9001W+
1-3
Introduction
