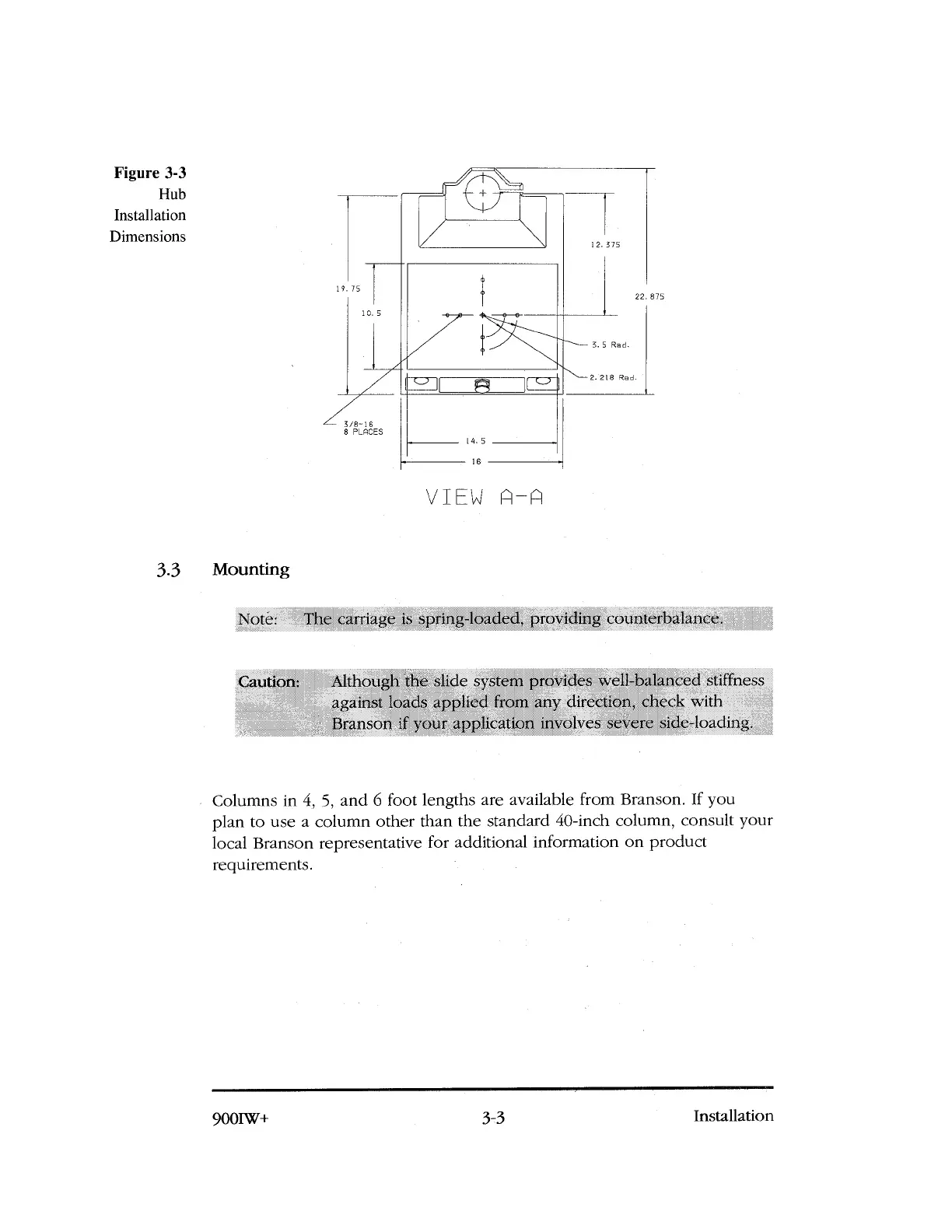

Figure 3-3
Hub
Installation
Dimensions
c=
,
/ \
19.75
22 875
12. 375
10.5
3. 5 Rad.
2.218 Red.
3/8
-
16
8 PLOCES
14 5
16
VI
EllAl A
-
A
3.3
Mounting
Note:
The carriage is spring-loaded, providing counterbalance.
Caution:
Although the slide system provides well-balanced stiffness
against loads applied from any direction, check with
Branson if your application involves severe side-loading.
Columns in 4, 5, and 6 foot lengths are available from Branson. If you
plan to use a column other than the standard 40-inch column, consult your
local Branson representative for additional information on product
requirements.
900IW+
3-3
Installation
