Branson 900IW+ Series - Using Weld Modes

\ /
\/
COLLAPSE + LIMIT- __
/
ABSOLUTE + LIMIT -
TOP OF STROKE
ULS
TOP OF STROKE
ULS
TRS
TRS
- ABSOLUTE - LIMIT -
END OF WELD TIME
END OF WELD TIME
END OF HOLD TIME
END OF HOLD TIME
Figure 4-4
Time Mode
TOP OF STROKE
ULS
TRS
COLLAPSE-LIMIT_ __
END OF WELD TIME
END OF HOLD TINE

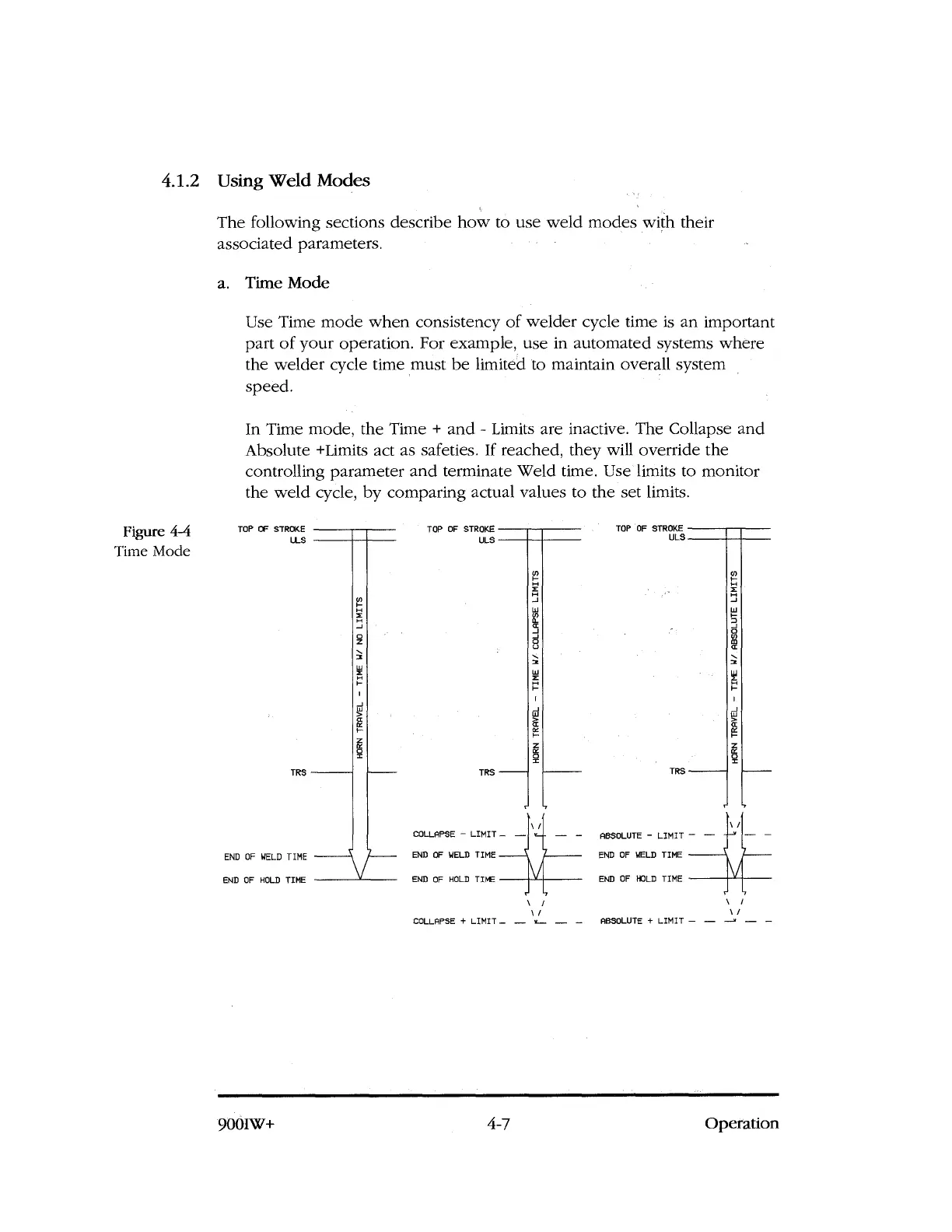

4.1.2 Using Weld Modes
The following sections describe how to use weld modes with their
associated parameters.
a. Time Mode
Use Time mode when consistency of welder cycle time is an important
part of your operation. For example, use in automated systems where
the welder cycle time must be limited to maintain overall system
speed.
In Time mode, the Time + and - Limits are inactive. The Collapse and
Absolute +Limits act as safeties. If reached, they will override the
controlling parameter and terminate Weld time. Use limits to monitor
the weld cycle, by comparing actual values to the set limits.
