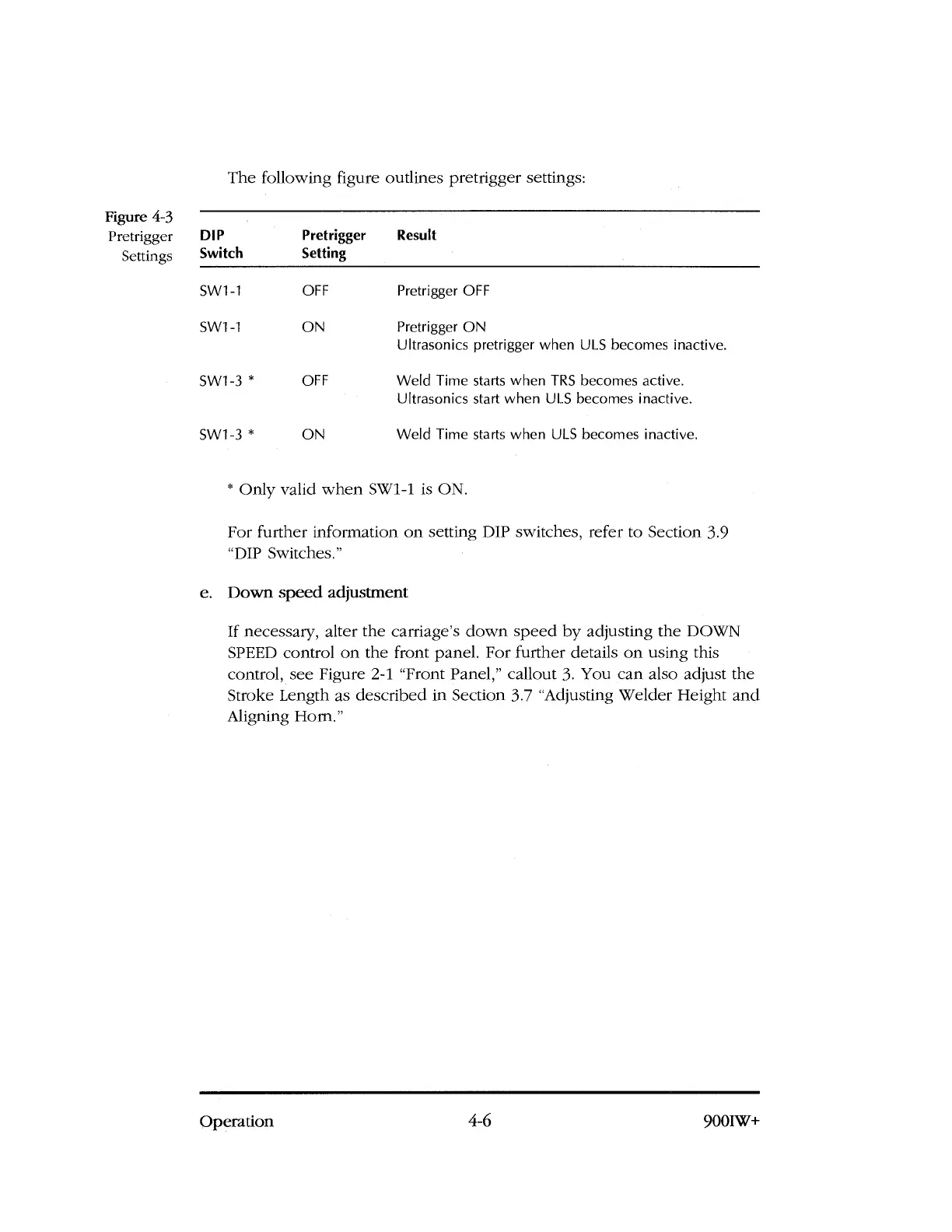

The following figure outlines pretrigger settings:
Figure
4-3
Pretrigger
DIP
Pretrigger Result
Settings
Switch
Setting
SW1
-1
OFF
Pretrigger OFF
SW1-1
ON
Pretrigger ON
Ultrasonics pretrigger when ULS becomes inactive.
SW1-3 *
OFF
Weld Time starts when TRS becomes active.
Ultrasonics start when ULS becomes inactive.
SW1-3 *
ON
Weld Time starts when ULS becomes inactive.
* Only valid when SW1-1 is ON.
For further information on setting DIP switches, refer to Section 3.9
"DIP Switches."
e. Down speed adjustment
If necessary, alter the carriage's down speed by adjusting the DOWN
SPEED control on the front panel. For further details on using this
control, see Figure 2-1 "Front Panel," callout 3. You can also adjust the
Stroke Length as described in Section 3.7 "Adjusting Welder Height and
Aligning Horn."
