TOP OF STROKE
ULS
TOP OF STROKE
ULS
END OF WELD TIME
END OF HOLD TIME
COLLAPSE/ABSOLUTE - LIMIT -
COLLAPSE DISTANCE
END OF HOLD TIME
TRS
TOP OF STROKE
ULS
TRS
TIME - LIMIT - --
COLLAPSE DISTANCE
END OF HOLD TIME

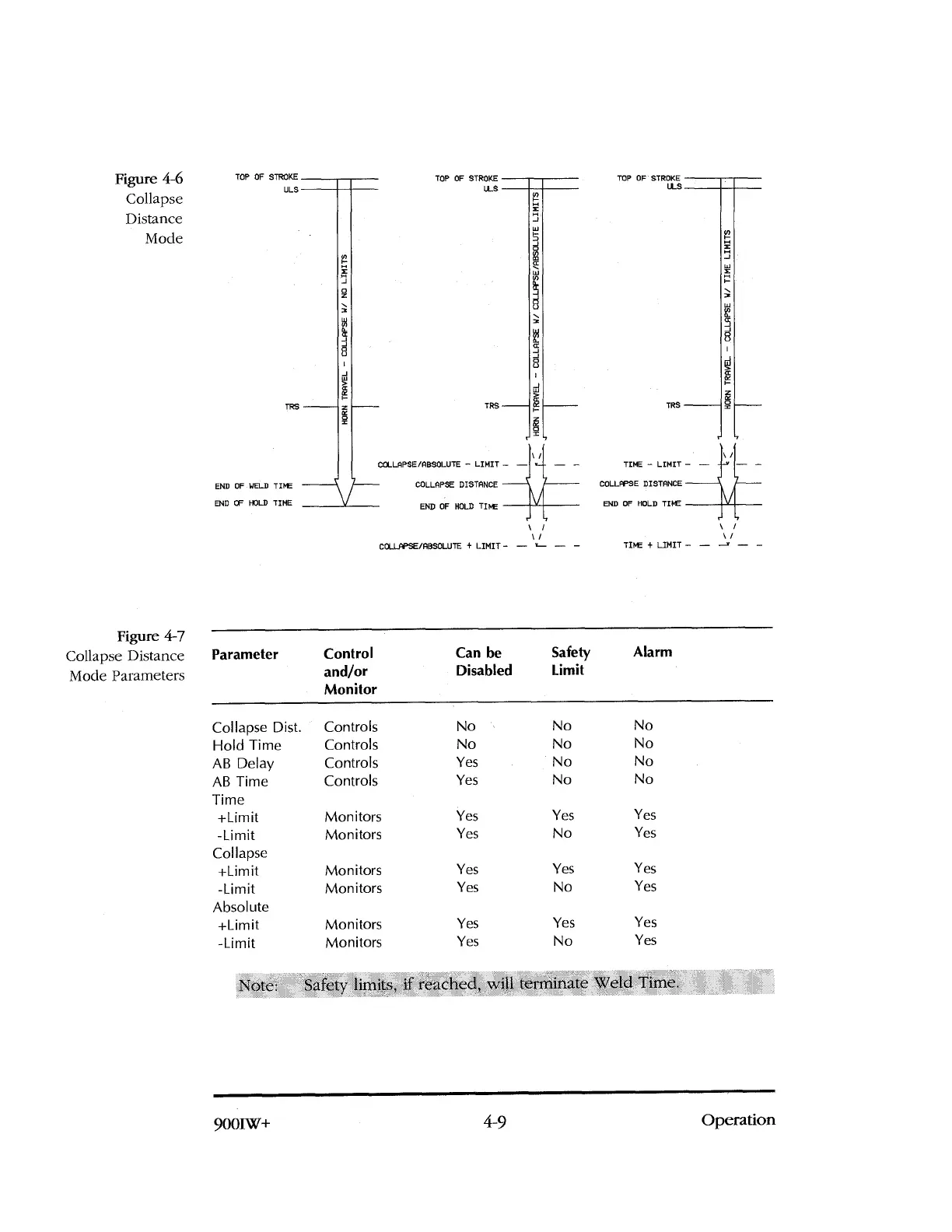

Figure 4-6
Collapse
Distance
Mode
/
COLLAPSE/ABSOLUTE + LIMIT-
 --
-
\  /
\ /
TIME 1. LIMIT-  --  -
Figure 4-7
Collapse Distance 
Parameter
Mode Parameters
Control
and/or
Monitor
Can be
Disabled
Safety
Limit
Alarm
Collapse Dist.
Controls
No
No
No
Hold Time
Controls
No
No
No
AB Delay
Controls
Yes
No
No
AB Time
Controls
Yes
No
No
Time
+Limit
Monitors
Yes
Yes
Yes
-Limit
Monitors
Yes
No Yes
Collapse
+Limit
Monitors
Yes
Yes
Yes
-Limit
Monitors
Yes
No
Yes
Absolute
+Limit
Monitors
Yes
Yes
Yes
-Limit
Monitors
Yes
No
Yes
Note: 
Safety limits, if reached, will terminate Weld. Time.
9001W+

4-9 
Operation
