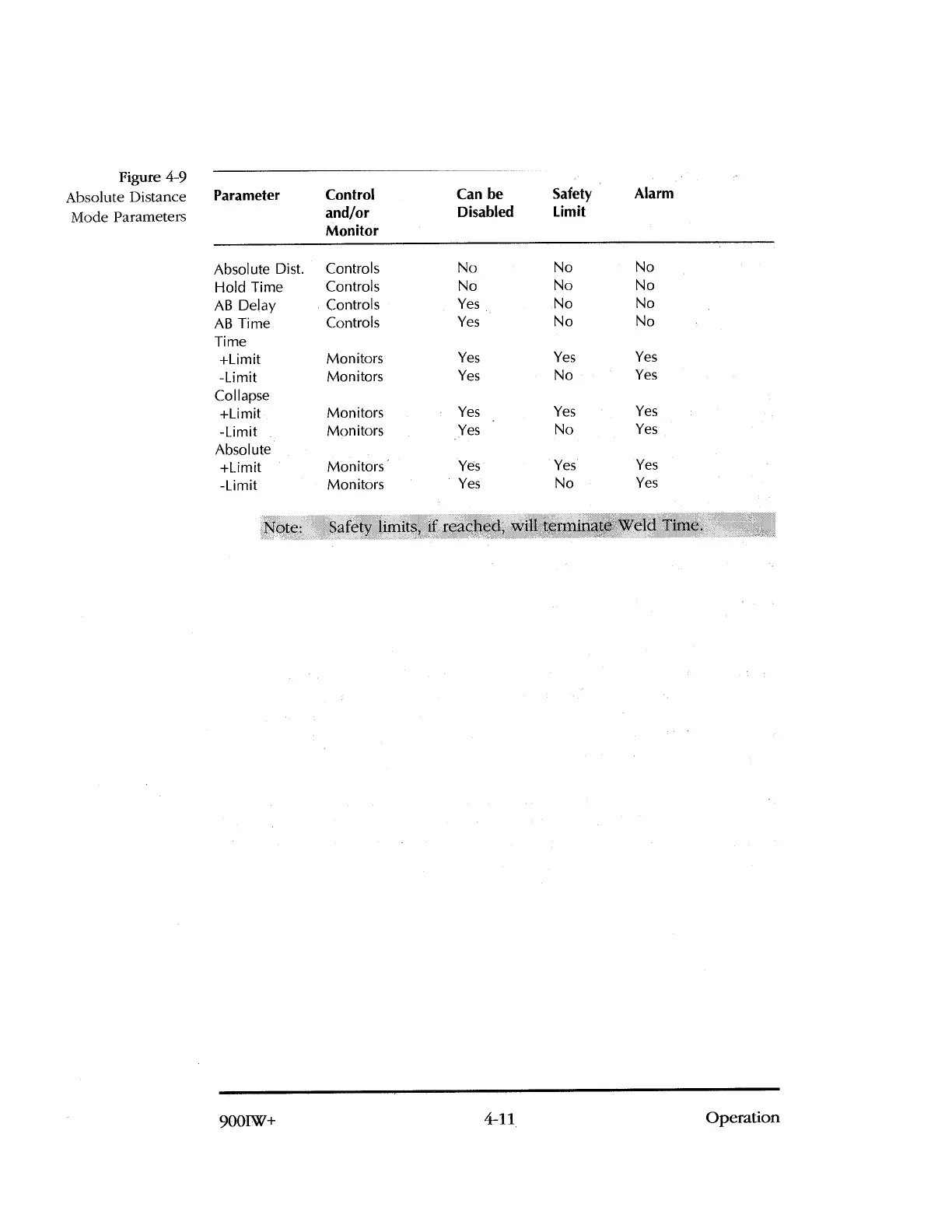

Figure
4-9
Absolute Distance

Parameter
Mode Parameters
Control
and/or
Monitor
Can be
Disabled
Safety
Limit
Alarm
Absolute Dist.
Controls
No
No
No
Hold Time
Controls
No
No No
AB Delay
Controls
Yes
No
No
AB Time
Controls
Yes
No
No
Time
+Limit
Monitors
Yes
Yes
Yes
-Limit
Monitors
Yes
No
Yes
Collapse
+Limit
Monitors
Yes
Yes
Yes
-Limit
Monitors
Yes
No
Yes
Absolute
+Limit
Monitors
Yes
Yes
Yes
-Limit
Monitors
Yes
No
Yes
Note:

Safety limits, if reached, will terminate Weld Time.
