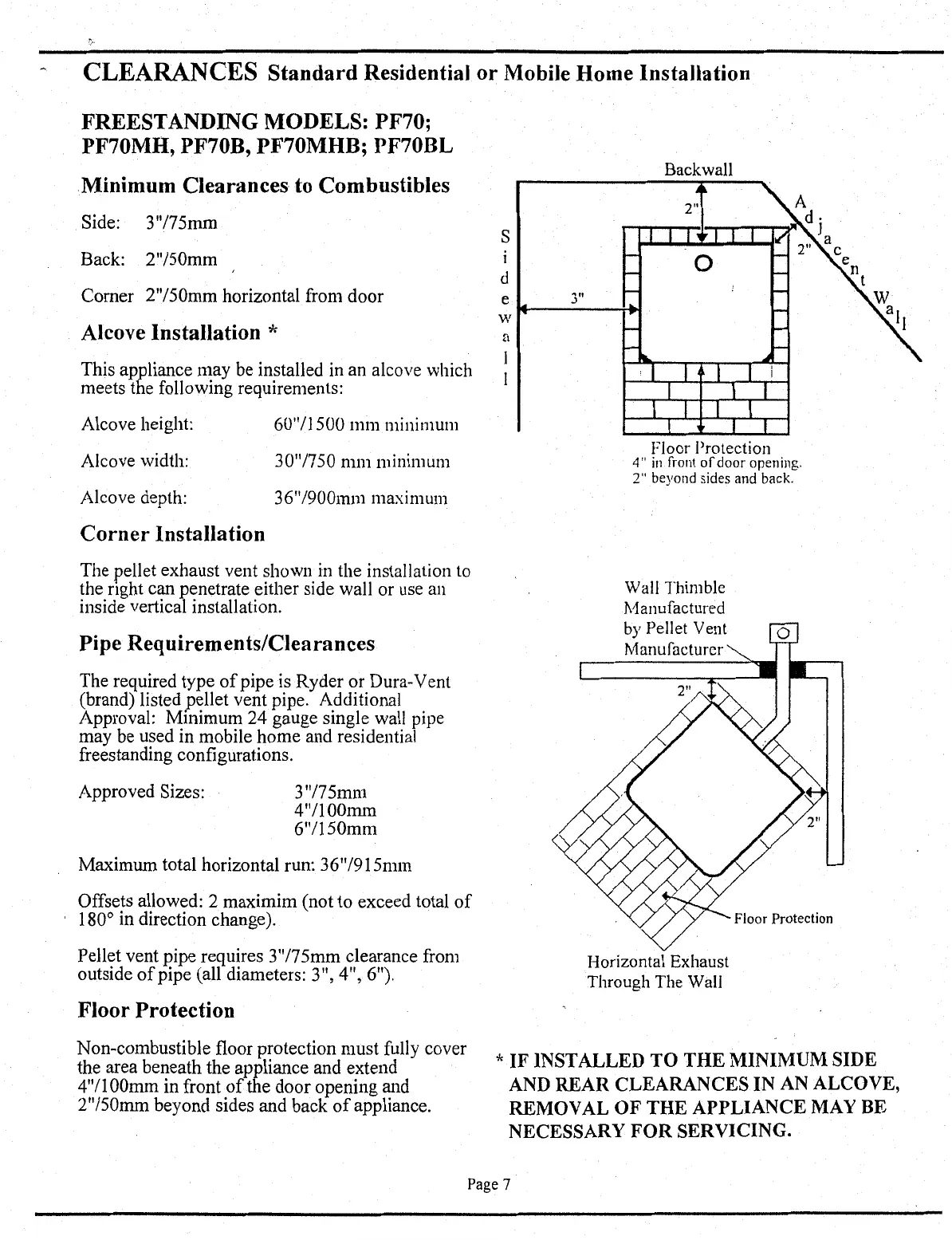

CLEARANCES
Standard
Residential
or
Mobile Home Installation
FREESTANDING MODELS: PF70;
PF70MH, PF70B, PF70MHB; PF70BL
Minimum Clearances to Combustibles
Side: 3"/75mm
Back: 2"/50mm
Comer 2"/50mm horizontal from door
Alcove Installation *
This appliance may be installed in an alcove which
meets the following requirements:
Alcove height:
60"/1500
mm
minimum
Alcove width:
30"/750
mm
minimum
Alcove depth:
36"/900mm maximum
Corner
Installation
The pellet exhaust vent shown in the installation
to
the
nght
can penetrate either side wall or use an
inside vertical installation.
Pipe Requirements/Clearances
The required type
of
pipe is Ryder or
Dura-
Vent
(brand) listed pellet vent pipe. Additional
Approval: Minimum 24 gauge single wall pipe
may be used in mobile home and residential
freestanding configurations.
Approved Sizes:
3"/75mm
4"/lOOmm
6"/150mm
Maximum total horizontal run: 36"/9
I 5mm
Offsets allowed: 2 maximim (not to exceed total
of
180° in direction change).
Pellet vent pipe requires 3"/75mm clearance from
outside
of
pipe (all diameters: 3", 4", 6").
Floor Protection
Non-combustible floor protection must fully cover
the area beneath the appliance and extend
4"/lOOmm in front
of
the door opening and
2"/50mm beyond sides and back
of
appliance.
s
d
e
w
a
Back
wall
3"
M------i-+1
Floor Protection
4"
in
front
of
door
opening.
2" beyond sides and back.
Wall Thimble
I'v1anufactured
by
Pellet Vent
Manufacturer
Horizontal Exhaust
Through The Wall
Floor Protection
*IF
INSTALLED
TO
THE
MINIMUM SIDE
AND
REAR CLEARANCES IN
AN
ALCOVE,
REMOVAL
OF
THE
APPLIANCE MAY BE
NECESSARY
FOR
SERVICING.
Page 7
