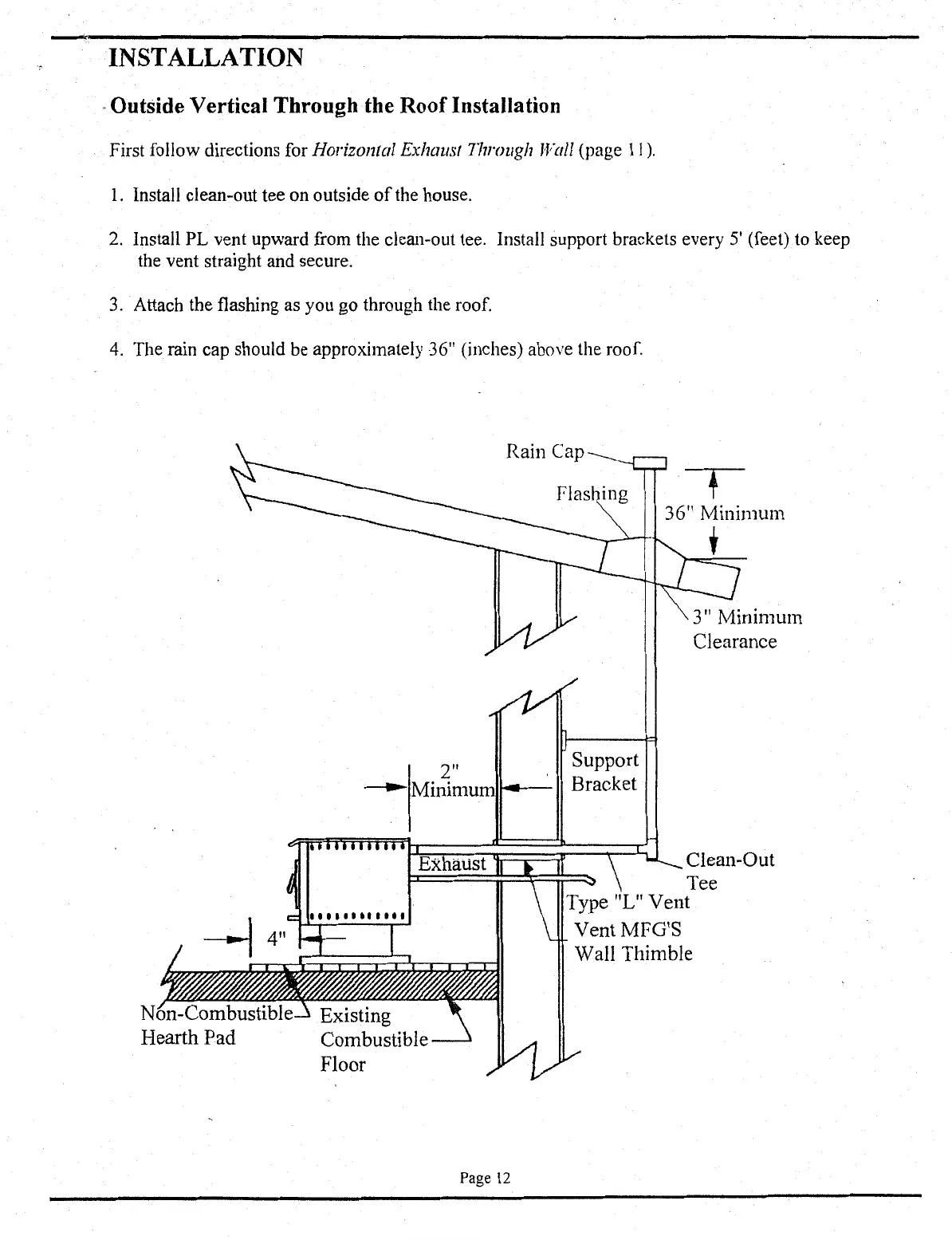

INSTALLATION
. Outside Vertical Through the Roof Installation
First follow directions for Horizontal Exhaust
77mJUgh
1Fall
(page
II).
1.
Install clean-out tee on outside
of
the house.
2.
Install PL vent upward from the clean-out tee. Install support brackets every 5' (feet) to keep
the vent straight and secure.
3.
Attach the flashing as you go through the roof.
4.
The rain cap should be approximately 36" (inches) above the roof.
N
Existing
Combustible
Floor
Page
12
T
36" Minimum
Support
Bracket
'
Clean-Out
Tee
Type
"L"
Vent
Vent MFG'S
Wall
Thimble
To Next Page
