OPERATION

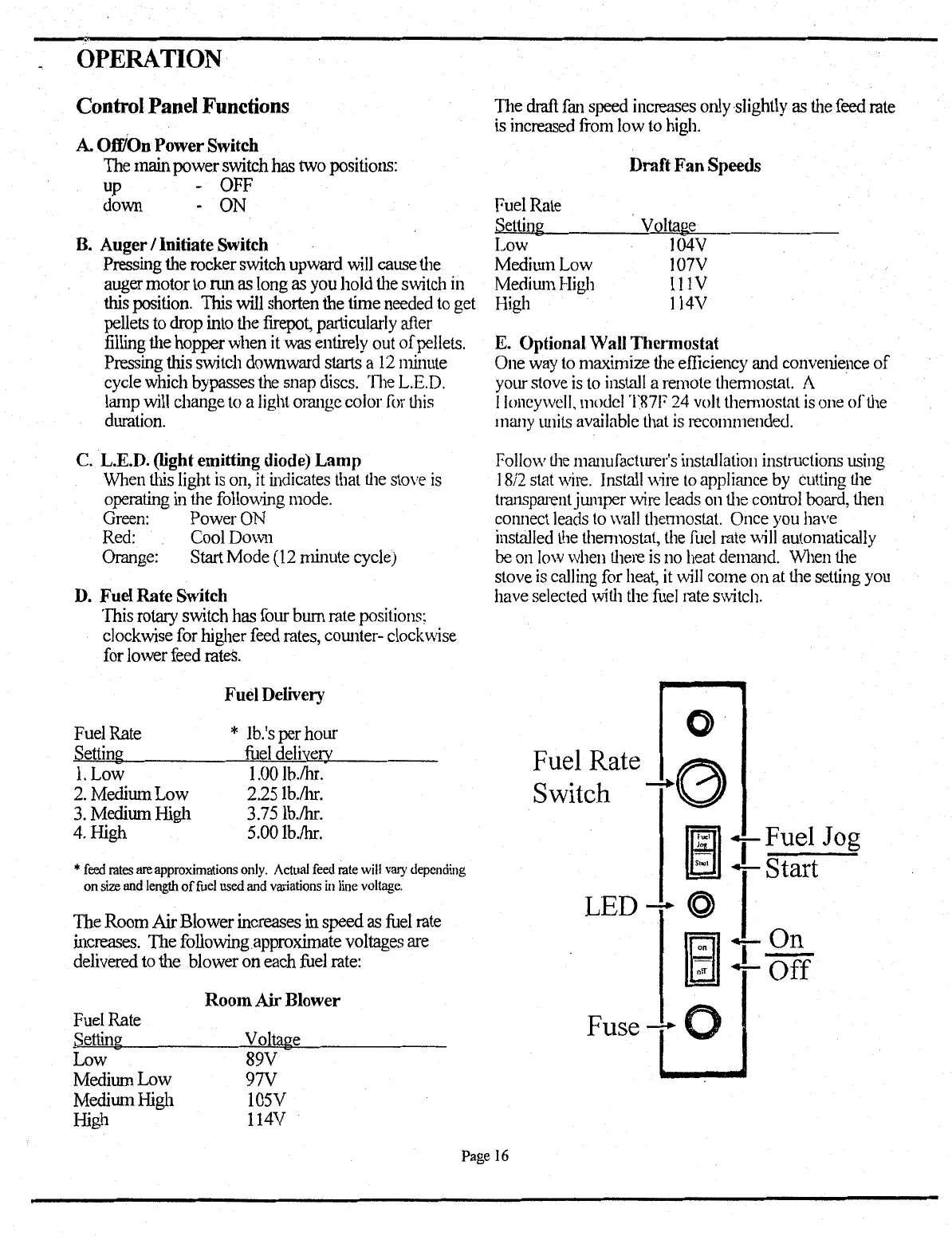

Control Panel Functions
A. Off/On Power Switch
The main power switch has two positions:
up - OFF
down - ON
B. Auger I Initiate Switch
Pressing the rocker switch upward will cause the
auger motor to nm as long as you hold the switch in
this position. This will shorten the time needed to get
pellets to drop into the frrepot, particularly after
filling the hopper when it was entirely out of pellets.
Pressing this switch downward starts a 12 minute
cycle which bypasses the snap discs. ·n1e L.E.D.
lamp will change to a light orange color for this
duration.
C. L.E.D. (light emitting diode) Lamp
When this light is on, it indicates that the stove is
operating in the following mode.
Green: Power ON
Red: Cool Down
Orange: Start Mode (12 minute cycle)
D. Fuel Rate S""itch
This rotary switch has four bum rate positions:
clockwise for higher feed rates, cow1ter- clockv.~se
for lower feed rates.
Fuel Rate
Setting
l.Low
2. Medium Low
3. Medium High
4.High
Fuel Delivery
* lb.'s per hour
fuel delivecy
1.00 lb./hr.
2.25 lb./hr.
3.75lb./hr.
5.00 lb./hr.
* feed rates are approximations only. Actual feed rate will vary depending
on size and length of fuel used and variations in line voltage.
The Room Air Blower increases in speed as fuel rate
increases. TI1e following approximate voltages are
delivered to the blower on each fuel rate:
Fuel Rate
Setting
Low
Medium Low
Medium High
High
Room Air Blower
Voltage
89V
97V
105V
114V
l11e draft fan speed increases only slightly as the feed rate
is increased from low to high.
Fuel Rate
Setting
Low
MediwnLow
Mediwn
High
High
Draft Fan Speeds
Voltage
104V
107V
IllY
114V
E. Optional Wall Thermostat
One way to maximize the efficiency and convenience of
your stove is to install a remote thermostat. A
Iloncywell,
model T87F 24 volt thennostat is one ofthe
many tmilc; available that is recommended.
Follow the m<mufacturer's installation instructions using
18/2 stat wire. Install \\~re to appliance by cutting the
transparent jwnper wire leads on the control board, then
connect leads to wall thennostat. Once you have
installed the thennost.at, the fuel rate will automatically
be on low when there is no heat demand. When the
stove is calling for heat, it ''~II come on at the setting you
have selected \vith the fuel rate S\vitch.
Fuse~O
