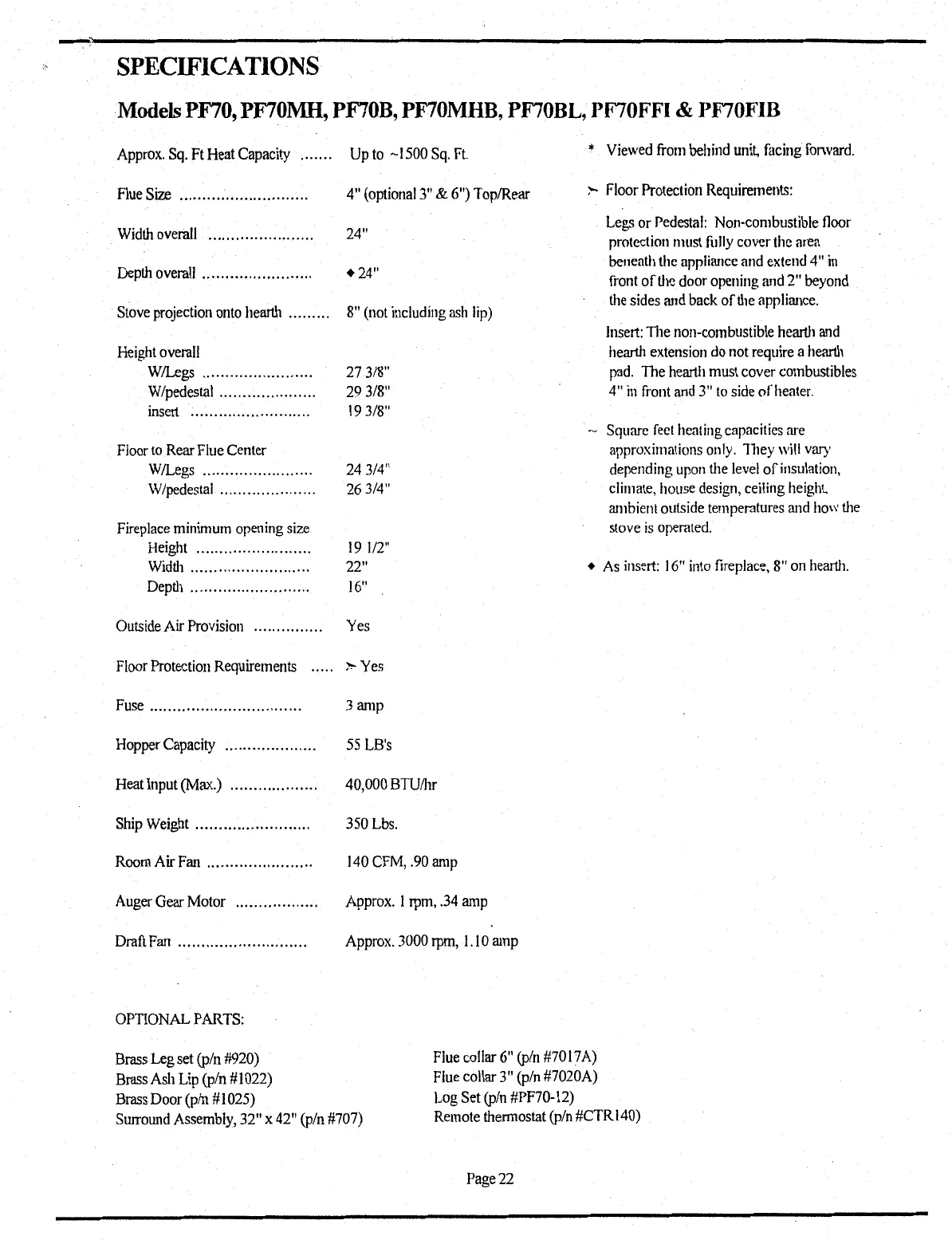

SPECIFICATIONS
Models PF70, PF70MH, PF70B, PF70MHB, PF70BL, PF70FFI & PF70FIB
Approx. Sq. Ft Heat Capacity .... .. . Up to -I 500 Sq. Ft.
Flue Size ............................ 4" (optional3" & 6") Top/Rear
Width overall .. .. .. .. .. .. .. .. .. .. .. . 24"
Depth overall .. .. .. .. .. .. .. .. .. .. .. .. • 24"
Stove projection onto heart11 ......... 8" (not including ash lip)
Height overall
W/Legs ...................... ..
W /pedestal .................... .
insert ........................ ..
Floor to Rear Flue Center
W/Legs ...................... ..
W /pedestal .................... .
Fireplace minimum opening size
Height ........................ .
Width ........................ ..
Depth ........................ ..
27 3/8"
29 3/8"
19 3/8"
24 3/4"
26 3/4"
19 112"
22"
16"
Outside Air Provision .. .. .. .. .. .. .. . Yes
Floor Protection Requirements :-.- Yes
Fuse .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . 3 runp
Hopper Capacity .... .. .. .. .. .. .... .. 55 LB's
Heat Input (Max.) .. .... .. .... ...... . 40,000 BTU/hr
Ship Weight ...... ............ ....... 350 Lbs.
Room Air Fan ....... .... .. .... .... .. I 40 CFM, .90 an1p
Auger Gear Motor .. .. .. .. .. .. .. .. .. Approx. I rpm, .34 amp
Draft Fan ............................ Approx. 3000 rpm, 1.10 runp
OPTIONAL PARTS:
* Viewed from behind unit, facing forward.
:--- Floor Protection Requirements:
Legs or Pedestal: Non-combustible floor
protection must fully cover the area
beneath the appliance and extend 4" in
front of the door opening and 2" beyond
the sides and back of the appliance.
Insert: TI1e non-combustible heart11 and
heartl1 extension do not require a heartl1
pad. The heart11 must cover combustibles
4" in front and 3" to side of heater.
·- Square feet heating capacities are
approximations only. ll1ey will vary
depending upon the level of insulation,
climate, house design, ceiling heighl
ambient outside temperatures and how the
stove is operated.
+ As insert: 16" into fireplace, 8" on heartl1.
Brass Leg set (p/n #920)
Brass Ash Lip (p/n # 1 022)
Brass Door (p/n # 1 025)
Flue collar 6" (p/n #7017A)
Flue collar 3" (p/n #7020A)
Log Set (p/n #PF70- 12)
Surround Assembly, 32" x 42" (p/n #707)
Remote thermostat (p/n #CTRI40)
