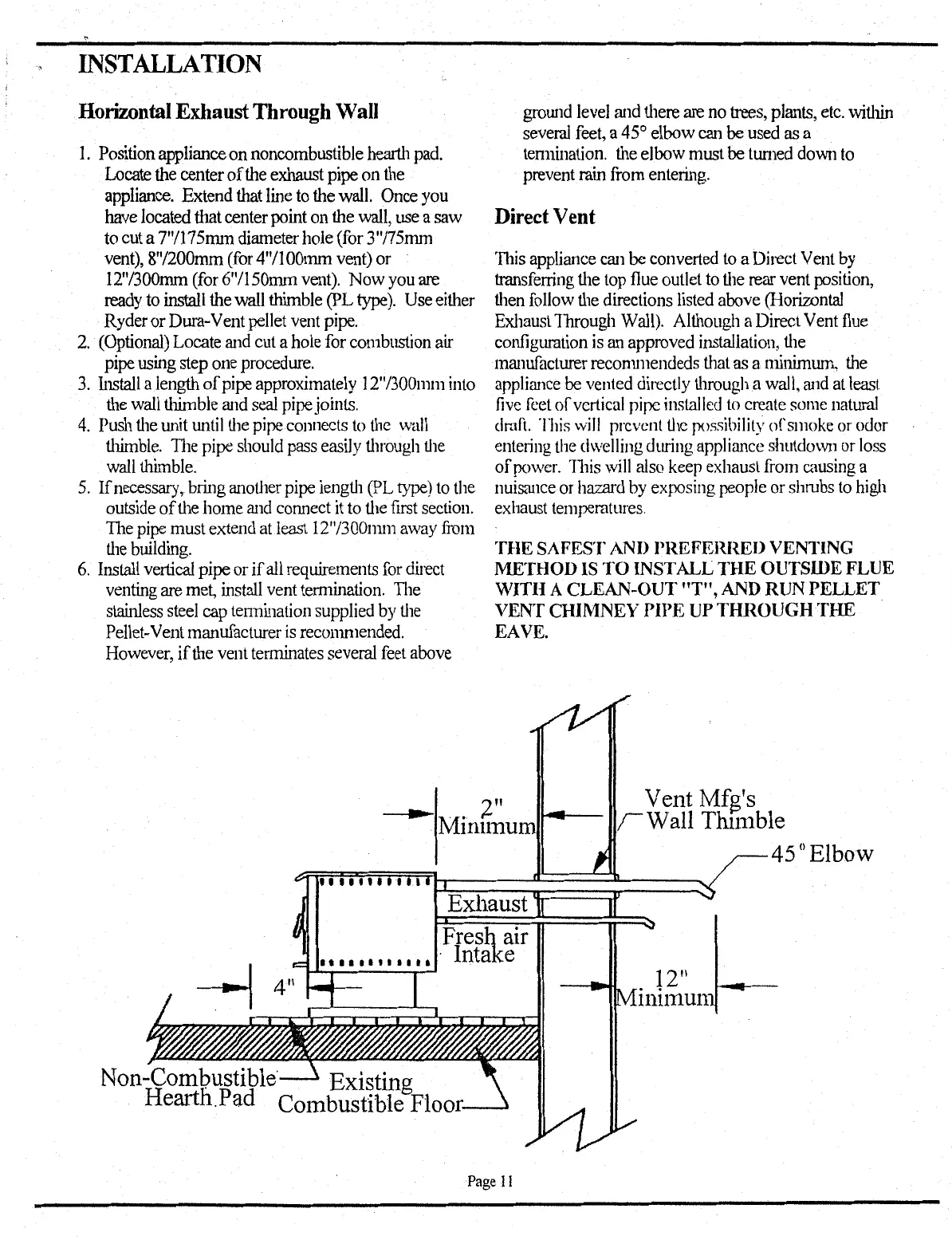

INSTALLATION
Horizontal Exhaust Through Wall
I. Position appliance on noncombustible hearth pad.
Locate the center of the exhaust pipe on the
appliance. Extend that line to the wall. Once you
have located that center point on the wall, use a saw
to cut a 7"/175mm diameter hole (for 3"/75mm
vent), 8"/200mm (for 4"/IOOmm vent) or
12"/300mm (for 6"/150mm vent). Now you are
ready to install the wall thimble (PL type). Use either
Ryder or Dura- Vent pellet vent pipe.
2. (Optional) Locate and cut a hole for combustion air
pipe using step one procedure.
3. Install a length of pipe approximately 12"/300mm into
the wall thimble and seal pipe joints.
4. Push the lll1it lll1til the pipe connects to the wall
thimble. 1l1e pipe should pass easily through the
wall thimble.
5. If necessary,. bring another pipe length (PL type) to the
outside of the home and connect it to the first section.
1l1e pipe must extend at least 12"/JOOmm away from
the building.
6. Install vertical pipe or if all requirements for direct
venting are met, install vent termination. 1l1e
stainless steel cap tennination supplied by the
Pellet-Vent manufacturer is recommended.
However, if the vent tenninates several feet above
Non-Combustible
Hearth.Pad Cmnbustible
grow1d level and there are no trees, plants, etc. within
several feet, a 45° elbow can be used as a
tennination. the elbow must be tW11ed down to
prevent rain from entering.
Direct Vent
This appliance can be converted to a Direct Vent by
transferring the top flue outlet to the rear vent position,
then follow the directions listed above (Horiwntal
Exhaust 1brough Wall). Although a Direct Vent flue
configuration is an approved installation, the
manufacturer recommendeds that as a minimum, the
appliance be vented directly through a wall, <md at least
five feet of vertical pipe installed to create some natural
dmfl. This will prevent the possibility of smoke or odor
entering the dwelling during appliance shutdown or loss
of power. 'J11is will also keep exhaust from causing a
nuisance or hazard by exposing people or shrubs to high
exhaust temperatures.
THE SAFEST AND PREFERRED VENTING
METHOD IS
TO INSTALL THE OUTSIDE FLUE
'WITH A CLEAN-OUT
"T", AND RUN PELLET
VENT CHIMNEY
PIPE UP THROUGH THE
EAVE.
Vent Mfg's
Wall Thunble
45°Elbow
