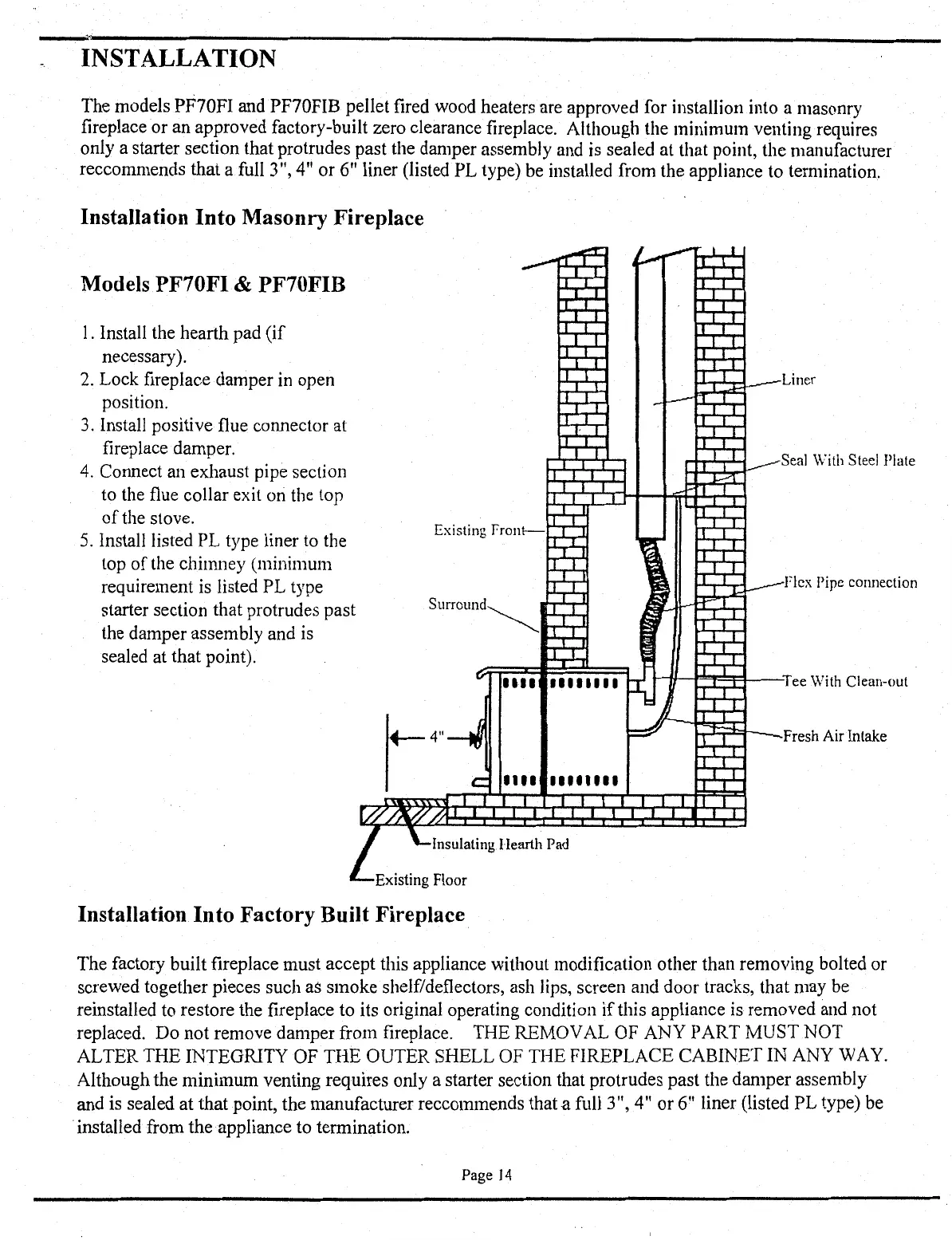

INSTALLATION
The models PF70FI and PF70FIB pellet fired wood heaters are approved for installion into a masonry
fireplace or an approved factory-built zero clearance fireplace. Although the minimum venting requires
only a starter section that protrudes past the damper assembly and is sealed at that point, the manufacturer
reccommends that a full3", 4" or 6" liner (listed PL type) be installed from the appliance to termination.
Installation Into Masonry Fireplace
__,..,..~
Models PF70FI & PF70FIB
1. Install the hearth pad (if
necessary).
2. Lock fireplace damper in open
position.
3. Install positive flue connector at
fireplace damper.
4. Connect an exhaust pipe section
to the flue collar exit on the top
of the stove.
5. Install listed PL type liner to the
top
of the chimney (minimum
requirement is listed PL type
starter section that protrudes pas
the damper assembly and is
sealed at that point).
t
I
I
I l
I
I I
I
Existing Front--
Surround~
I
I
v
1111 IIIII III
*-4"--tl
c:
....
11111111
I I
w~h"
I I I I I
L . \_In,ula6ng Hearth Pad
Extstmg Floor
Installation Into Factory Built Fireplace
~~
I I
I I
I I
I
I I
I I
Liner -I
-
--
I
I I
I I
I
Seal With Steel Plate
-
I l
I
I
i
r----·
--- H' I
Flex Pipe connection
I I
J I
=\)
_j_ _l
d
"T'-4-
I I
-.
Tee With Clean-out
Fresh Air Intake
J
_j_ l
I I I I
The factory built fireplace must accept this appliance without modification other than removing bolted or
screwed together pieces such as smoke shelf/deflectors, ash lips, screen and door tracks, that may be
reinstalled to restore the fireplace to its original operating condition
if this appliance is removed and not
replaced. Do not remove damper from fireplace. THE REMOVAL OF ANY PART MUST NOT
ALTER THE INTEGRITY OF THE OUTER SHELL OF THE FIREPLACE CABINET IN ANY WAY.
Although the minimum venting requires only a starter section that protrudes past the damper assembly
and is sealed at that point, the manufacturer reccommends that a full 3
11
, 4
11
or 6
11
liner (listed PL type) be
·installed from the appliance to termination.
