Brass Flame PF70 - Venting Requirements

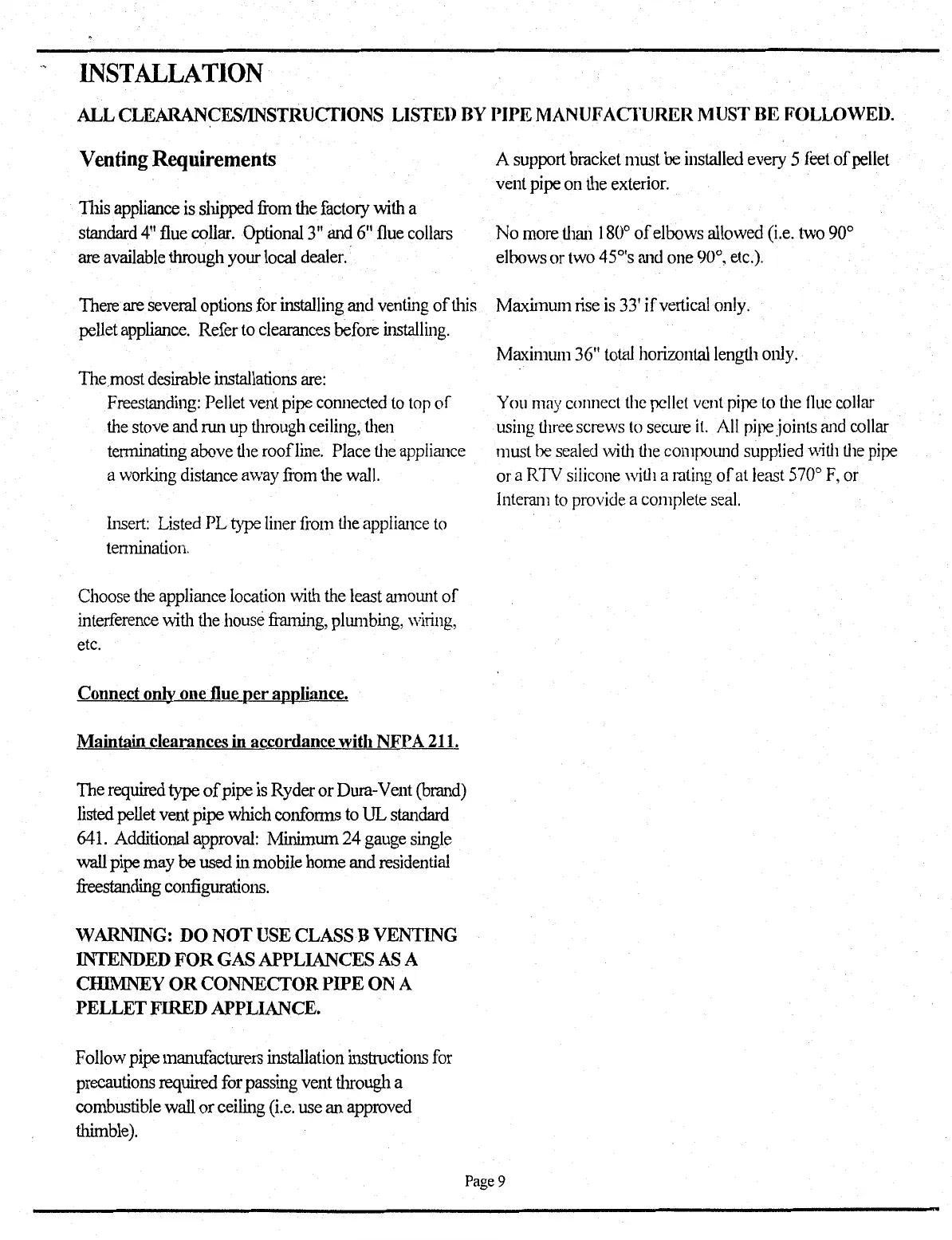

INSTALLATION
ALL CLEARANCESIINSTRUCfiONS LISTED BY PIPE MANUFACI'URER MUST BE FOLLOWED.
Venting Requirements A support bracket must be installed every 5 feet of pellet
vent pipe on the exterior.
111is appliance is sllipped from the factory with a
standard 4" flue collar. Optional 3" and 6" flue collars No more than 180° of elbows allowed (i.e. two 90°
are available through your local dealer.· elbows or two 45°'s and one 90°, etc.).
There are several options for installing and venting of this Maximum rise is 33' if vertical only.
pellet appliance. Refer to clearances before installing.
The.most desirable installations are:
Freestanding: Pellet vent pipe connected to top of
the stove and run up through ceiling, then
temlinating above the roofline. Place the appliance
a working distance away from the wall.
Insert: Listed PL type liner fi"om the appliance to
tennination.
Choose the appliance location with the least runow1t of
interference with the house frruning, plumbing, wiring,
etc.
Connect only one flue per appliance.
Maintain clearances in accordance with
NFP A 211.
The required type of pipe is Ryder or Dura- Vent (brand)
listed pellet vent pipe which conforms to UL stru1dard
641. Additional approval: Minimum 24 gauge single
wall pipe may be used in mobile home and residential
freestru1ding configurations.
WARNING: DO NOT USE CLASS B VENTING
INTENDED
FOR GAS APPLIANCES AS A
CHIMNEY
OR CONNECTOR PIPE ON A
PELLET FIRED APPLIANCE.
Follow pipe manufacturers installation instructions for
precautions required for passing vent through a
combustible wall or ceiling (i.e. use an approved
thin1ble).
Maximwn 36" total horiwntallength only.
You may connect the pellet vent pipe to the flue collar
using three screws to secure it. All pipe joints and collar
must he sealed with the compmmd supplied vvith the pipe
or a RTV silicone with a rating of at least 570° F, or
Interam to provide a complete seal.
Page9
