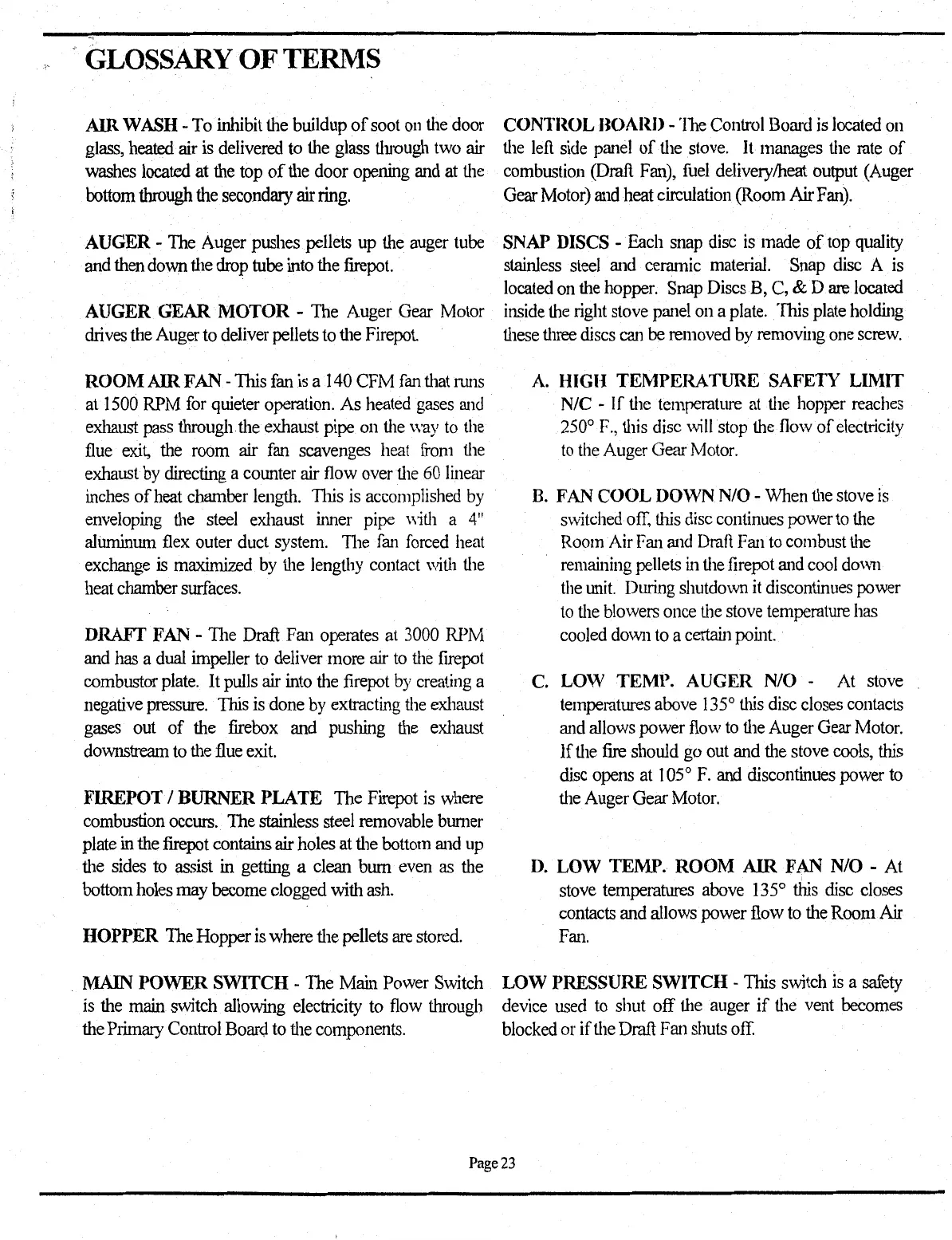

GLOSSARY
OF
TERMS
AIR WASH - To inhibit
the
buildup
of
soot
on
the
door
glass,
heated
air
is
delivered
to
the glass
through
two
air
washes
located
at
the
top
of
the door opening
and
at
the
bottom
through
the secondary
air
ring.
AUGER -
The
Auger pushes pellets
up
the
auger
tube
and
then
down
the
drop
tube
into
the
frrepot.
AUGER GEAR MOTOR - The Auger
Gear
Motor
drives
the
Auger
to
deliver pellets
to
the
Firepot.
ROOM AIR FAN - This
fan
is
a I
40
CFM
fan
that
nms
at
1500
RPM
for
quieter operation.
As
heated
gases
and
exhaust
pass
through
the
exhaust pipe
on
the
way
to
the
flue
exit,
the
room
air
fan
scavenges
heat
from
the
exhaust
by
directing
a counter
air
flow
over
the
60
linear
inches
ofheat chamber
length.
Tilis
is
accomplished
by
enveloping
the
steel
exhaust inner pipe \\ith a
4"
alumimun
flex
outer duct
system.
TI1e
fan
forced
heat
exchange
is
maximized
by
the lengthy
contact
with
the
heat
chamber
surfaces.
DRAFT
FAN-
The
Draft Fan operates
at
3000
RPM
and
has
a
dual
impeller
to
deliver more
air
to
the
flrepot
combustor
plate.
It
pulls
air
into
the
firepot
by
creating
a
negative
pressure.
This
is
done
by
extracting
the
exhaust
gases
out
of
the
firebox
and
puslling
the
exhaust
downstream
to
the
flue
exit.
FIREPOT I BURNER PLATE The Firepot
is
where
combustion
occurs.
The
stainless steel removable burner
plate
in
the
firepot
contains
air
holes at
the
bottom
and
up
the
sides
to
assist in getting a clean bum
even
as
the
bottom holes may become clogged with
ash.
HOPPER The Hopper
is
where the pellets
are
stored.
CONTROL HOARD -
'Il1e
Control
Board
is
located
on
the
left
side
panel
of
the
stove.
It
manages
the
rnte
of
combustion (Draft Fan),
fuel
delivery/heat
output
(Auger
Gear
Motor)
and
heat circulation (Room Air
Fan).
SNAP DISCS -
Each
snap
disc
is
made of
top
quality
stainless
steel
and
cernmic
material.
Snap
disc
A
is
located
on
the
hopper.
Snap
Discs
B,
C,
& D
are
located
inside
the
right
stove
panel
on
a
plate.
'This
plate
holding
these
three
discs
can
be
removed
by
removing
one
screw.
A.
HIGH TEMPERATURE SAFETY LIMIT
N/C
- If
the
temperature
at
the
hopper
reaches
250°
F.,
this
disc
will
stop
the
flow
of
electricity
to
the
Auger Gear
Motor.
B.
FAN
COOL
DOWN
N/0-
When
the
stove
is
switched
off,
this
disc
continues power
to
the
Room
Air
Fan
and
Drnfl
Fan
to
combust
the
remaining
pellets
in
the
flrepot
and
cool
down
the
unit.
During shutdown
it
discontinues
power
to
the
blowers
once
the
stove
temperature
has
cooled
dmvn
to
a
certain
point.
C.
LOW TEMP. AUGER
N/0
-
At
stove
temperatures above
135°
tllis
disc
closes
contacts
and
allows
power
flow
to
tl1e
Auger
Gear
Motor.
If
tl1e
frre
should
go
out
and
the
stove
cools,
this
disc
opens
at
105°
F.
and
discontinues power
to
the
Auger Gear
Motor.
D.
LOW TEMP. ROOM AIR FAN
N/0
-
At
stove
temperatures above
135°
this
disc
closes
contacts and allows power
flow
to
the
Room Air
Fan.
MAIN
POWER
SWITCH - The Main Power
Switch
LOW
PRESSURE SWITCH - This
switch
is
a
safety
is
the
main
switch allowing electricity
to
flow
through
device
used
to
shut off
the
auger
if
tl1e
vent
becomes
the
Primary Control Board
to
the components.
blocked
or
iftl1e
Draft
Fan
shuts
off.
Page23
