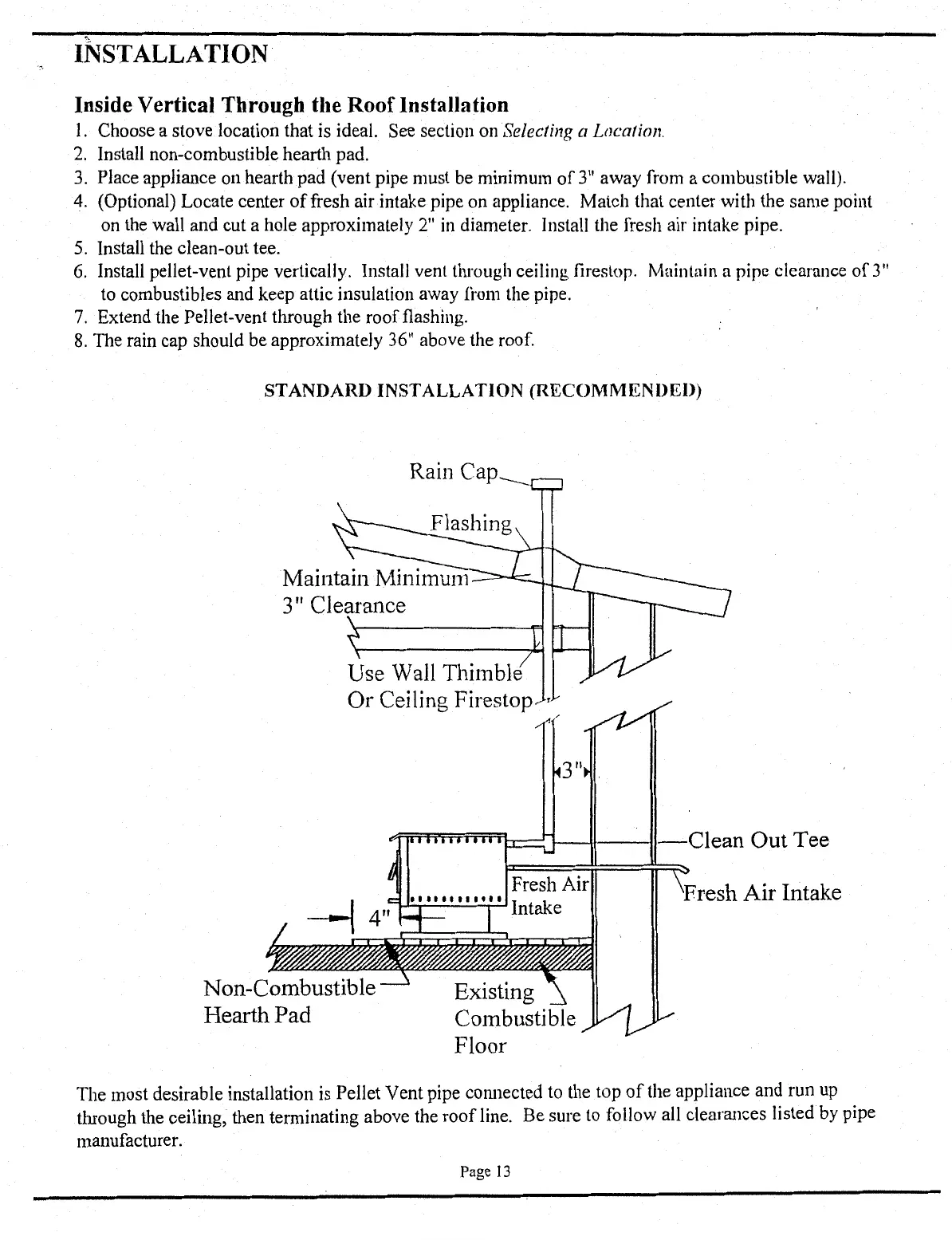

INSTALLATION
Inside Vertical Through the
Roof
Installation
I. Choose a stove location that is ideal. See section on Selecting a Location
2.
Install non-combustible hearth pad.
3.
Place appliance on hearth pad (vent pipe must be minimum
of3"
away from a combustible wall).
4. (Optional) Locate center
of
fresh air intake pipe on appliance. Match that center with the same point
on the wall and cut a hole approximately 2" in diameter. Install the fresh air intake pipe.
5.
Install the clean-out tee.
G.
Install pellet-vent pipe vertically. Install vent through ceiling firestop. Maintain a pipe clearance
of
3"
to combustibles and keep attic insulation away from the pipe.
7.
Extend the Pellet-vent through the roof flashing.
8.
The rain cap should be approximately 36" above the roof.
STANDARD
INSTALLATION
(RECOMMENDED)
Rain Cap
___
3"
Clearance
Use Wall Thimble
Or
Ceiling
Firestop---
r
Non-Combustible
Hearth Pad
Existing
Cmnbustible
Floor
resh Air Intake
The most desirable installation is Pellet Vent pipe connected
to
the top
of
the appliance and run up
through the ceiling, then terminating above the roofline. Be sure to follow all clearances listed by pipe
manufacturer.
Page
13
