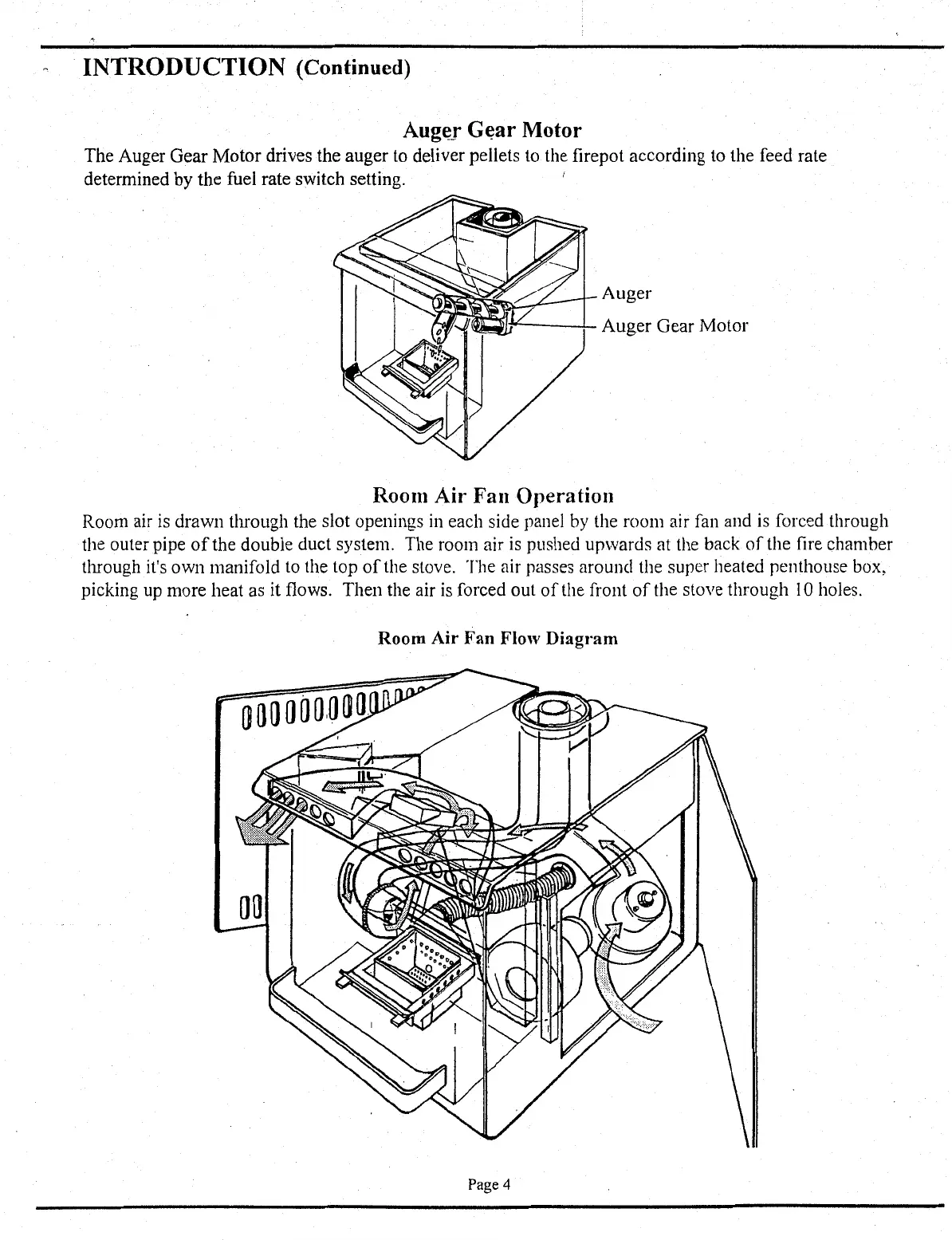

INTRODUCTION (Continued)
Aug~.r
G~ar
Motor
The Auger Gear Motor drives the auger
to
deliver pellets to the firepot according to the feed rate
determined by the fuel rate switch setting.
Auger
~JJ..JIIt-"----~
Auger
Gear
Motor
Room
Air
Fan
Operation
Room air is drawn through the slot openings
in
each side panel by the room air fan and is forced through
the outer pipe
of
the double duct system. The room air is pushed upwards at the back
of
the fire chamber
through it's own manifold
to
the top
of
the stove. The air passes around the super heated penthouse box,
picking up more heat as it flows. Then the air is forced out
of
the front
of
the stove through I 0 holes.
Room
Air
Fan
Flow Diagram
Page4
