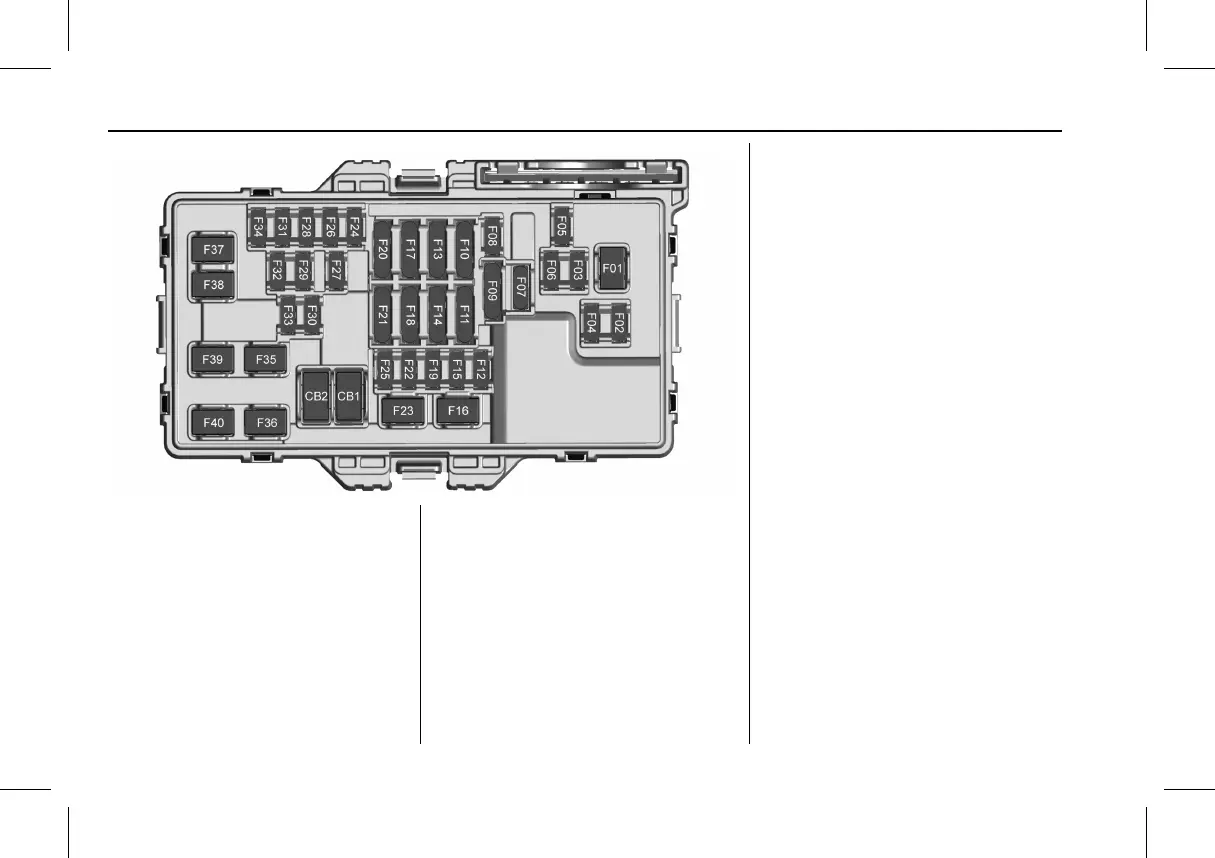

Fuses Usage
F01 DOOR PANELS SWS – Door
Panel Switches
F02 –
F03 HVSL – High Voltage
System Lockout
F04 BCM 1 – Body Control
Module 1
F05 ELM 1 – Exterior Lighting
Module
Fuses Usage
F06 BCM 2 – Body Control
Module 2
F07 SWC SWITCHES – Steering
Wheel Control Switches
F08 CGM – Central Gateway
Module
F09 –
Fuses Usage
F10 DLC/VECM 2 – Data Link
Connector/Vehicle
Extension Control Module
F11 –
F12 –
F13 TPIM 1/SPARE – Traction
Power Inverter Module 1/
Spare
F14 –
F15 –
F16 –
F17 SDM – PFA/PA – Sensing
and Diagnostic Module/
Pedestrian Friendly Alert
Module/Park Assist Module
F18 MISC 1 & MISC 2 R/C –
Miscellaneous 1 and
Miscellaneous 2 Run/Crank
F19 MISC 3 RUN/CRANK
Miscellaneous 3 Run/Crank
F20 ONSTAR/MISC 4 – OnStar/
Miscellaneous 4
