Instrument Panel Fuse Block

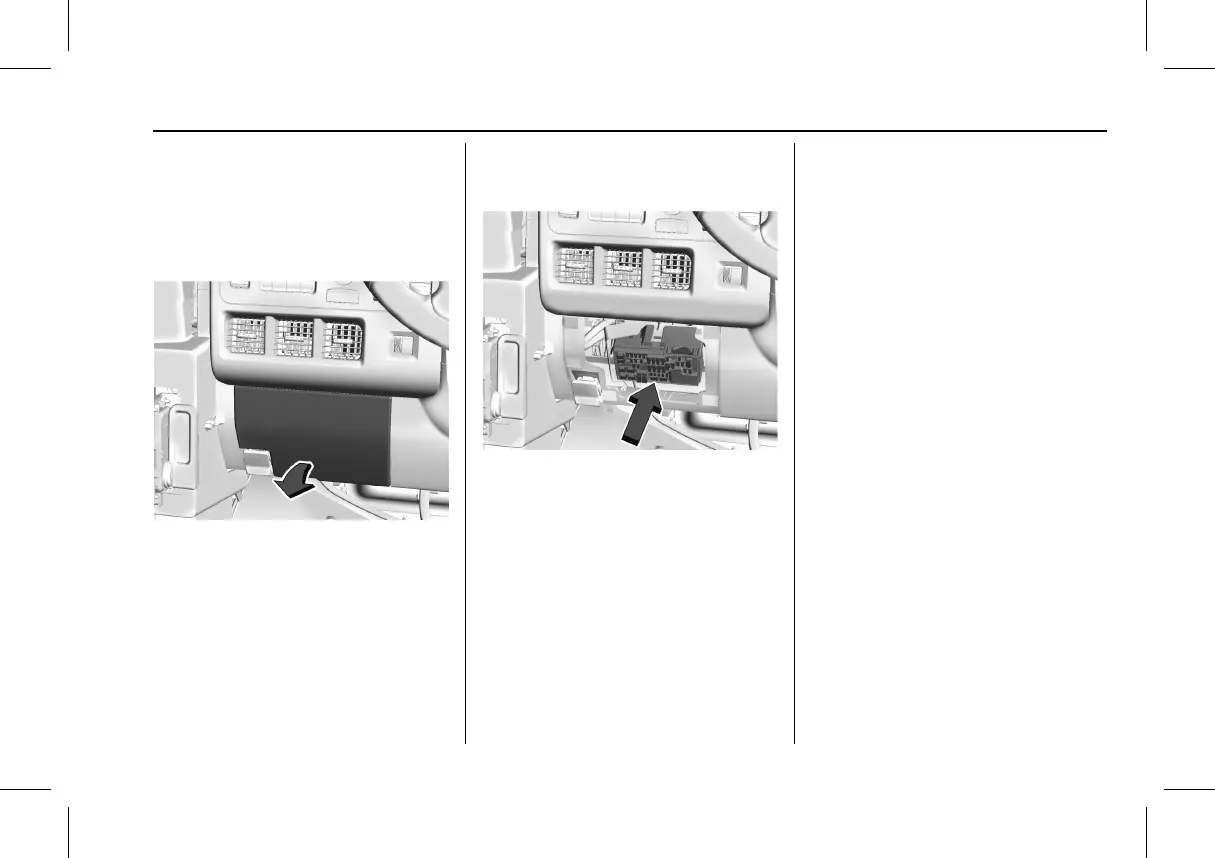

The instrument panel fuse block is on the
driver side of the instrument panel, between
the steering wheel and the door. To access
the fuses, remove the panel, starting at the
bottom. Once clips are disengaged, the tabs
along the top of the door can be disengaged
from the instrument panel to remove
the door.
To reinstall the door, place the top tabs into
the slots, and rotate the door into position,
engaging the clips.
There is a fuse label in the top right pocket.
Unfold it for individual fuse usage and
locations. Fuse amperage ratings are shown
on the fuse label. Fold label and put it back
into the top right pocket.
The vehicle may not be equipped with all of
the fuses, relays, and features shown.
