188 Vehicle Care
Tire Changing

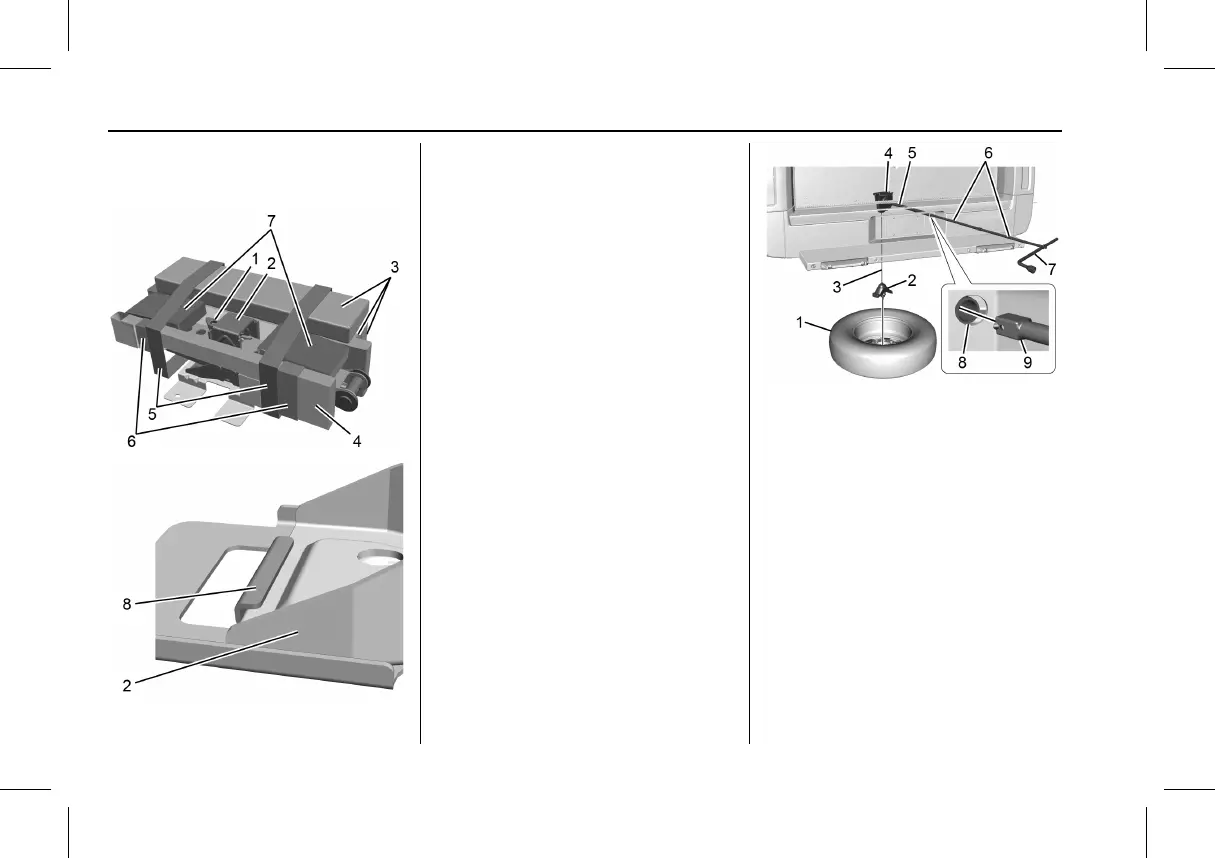

Removing the Spare Tire and Tools
1. Jack Retention Bolt
2. Jack
3. Warning Triangles
4. Tool Kit
5. Warning Triangle Retention Straps
6. Tool Kit Retention Straps
7. Wheel Blocks
8. Jack Bracket
The equipment is under the driver seat.
1. Release the warning triangle retention
straps and remove the warning triangles.
2. Release the tool kit retention straps and
remove the tool kit from the jack.
3. Turn the jack retention bolt
counterclockwise to remove the bolt.
4. Remove the jack from the jack bracket
by sliding it rearwards, then lifting it out
of the bracket.
Use the jack handle extensions and the
wheel wrench to remove the
underbody-mounted spare tire.
1. Spare Tire (Valve Stem Pointed Down)
2. Tire/Wheel Retainer
3. Hoist Cable
4. Hoist Assembly
5. Hoist Shaft
6. Jack Handle Extensions
7. Wheel Wrench
8. Hoist Shaft Access Hole
9. Hoist End of Extension Tool
