7
◆ Push out → page 11
◆ Push in → page 11
20 - Hexagon flange bolt M12×1.25×82
◆ Tightening torque: 90-100Nm
◆ Replace it after each diamantling
21 – Flange bolt M12×1.25×65
◆ Tightening torque: 90-110Nm
22 - Torque arm assembly
23 – Flange bolt M12×1.25×65
◆ VReplace it after each diamantling
24 – Flange bolt M8×1.25×25
◆ Tightening torque: 30-41Nm
◆ Replace it after each diamantling
25 - Flange locknut M12×1.25
◆ Tightening torque: 90-110Nm
◆ Replace it after each diamantling
26 - Torque arm bracket at transmission side
27 - Front suspension beam assembly
◆ Do not repair thread of projection weld nut
on mounting bracket of rocker arm

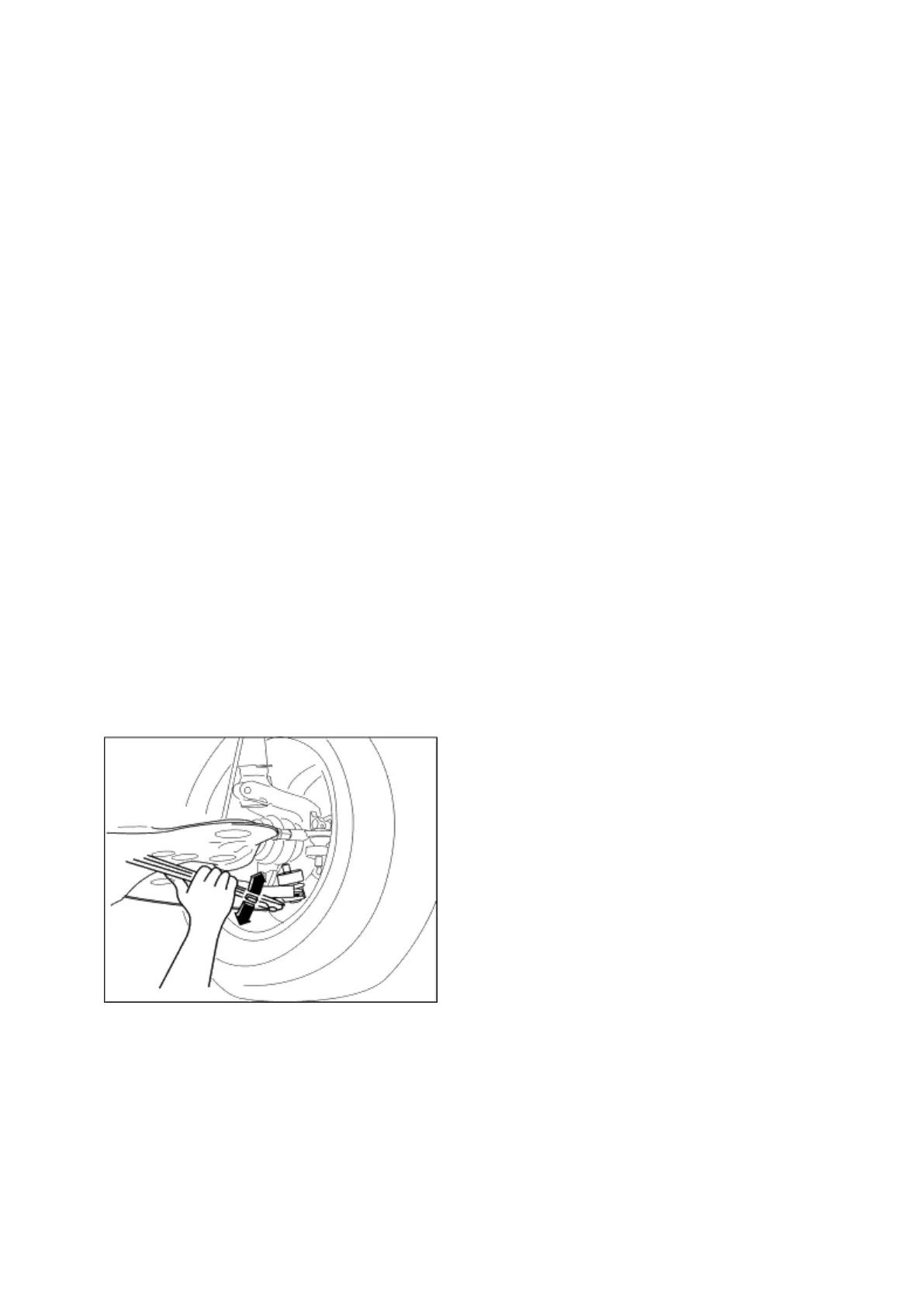

Check rocker arm spheric hinge
Check axial play
Pull down rocker arm spheric hinge and then
push it up.
