Brink Innosource Sonair - Display Indicators and Symbols

19

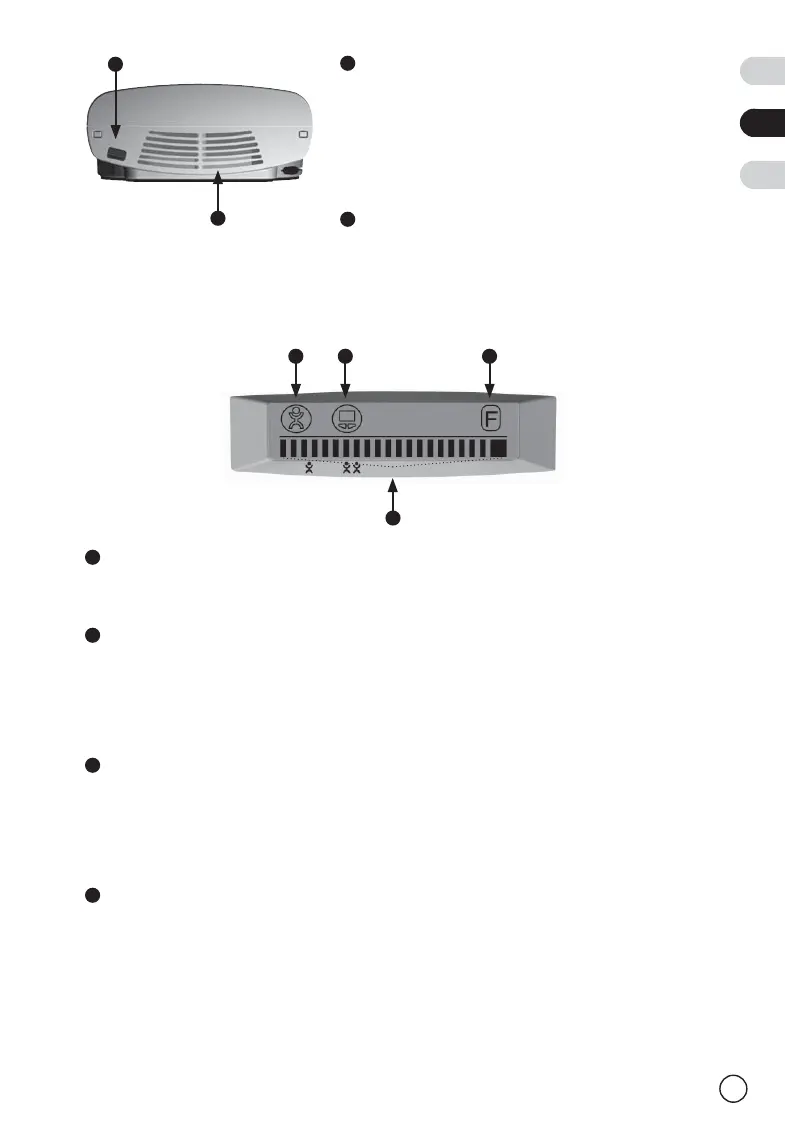

Power cable / Power cable connector
Your Sonair may be fitted with a loose or fixed
cable. Connect the fixed power cable to a
nearby power socket. The connector allows
you to connect the loose power cable.
Recirculation opening (Sonair A
+
only)
The fan sucks indoor air into the Sonair
through this opening.
2.2 The display
Power indicator
This icon is shown when the Sonair has power.
ACC icon (Sonair A
+
ACC and F
+
ACC only)
This icon is shown when the Sonair is controlled by the central control panel of
the ACC ventilation system. See page 18 for more information about manual
and automatic operation.
Indicator bar
This bar shows the current ventilation rate when you operate the Sonair
manually. The two buttons allow you to adjust the ventilation rate manually.
See page 20 for more information about ventilation rates.
System Error indicator
This icon is shown when a system error occurs. If a system error occurs,
the fan will be stopped automaticly. See page 25 for more information about
systems errors and how to solve them.
