3.7 CLASSIC 2PWN MODEL GUIDELINES
Diagram 4.
Table 2.
Model
Dimension (mm)
A B C D E F G H I J K L M øN øRa øSa
2PW15N 704 1147 412 723 115 160 385 491 200 269 747 791 1187 125 300 300
2PW20N 704 1147 412 723 115 160 385 491 200 269 747 791 1187 125 300 300
2PW20N XA 704 1147 412 723 115 160 385 491 200 269 747 791 1187 125 350 350
H
A
B
C
D
J
K
G
L
E
F
øN
I
øRa
øSa
M
Overheat
Switch
Flue Terminal
Gas Inlet

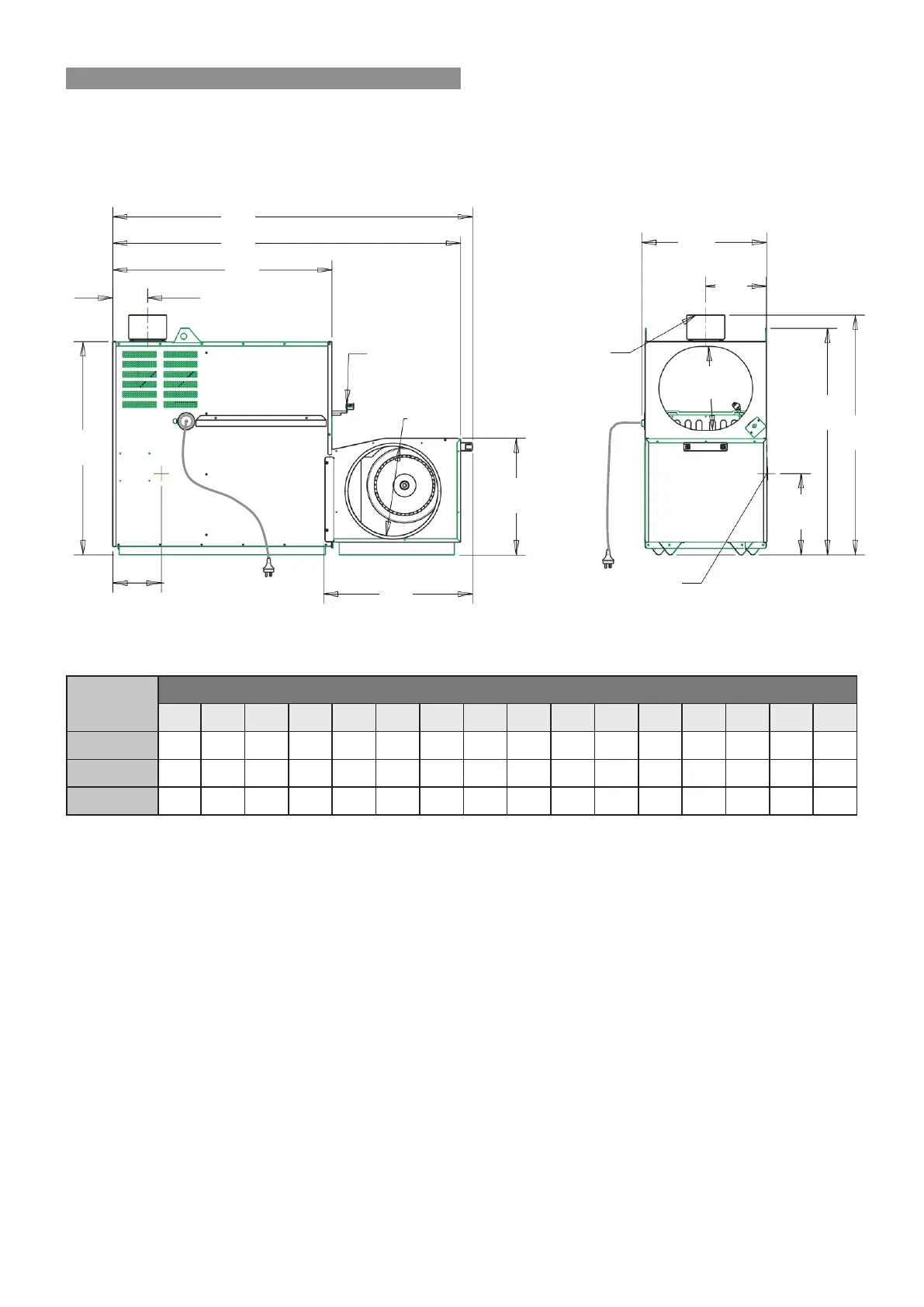

HEATER DIMENSIONS AND CLEARANCES
