3. HEATER DIMENSIONS AND CLEARANCES
3.1 CLASSIC BX3C MODEL GUIDELINES
Install the heater in a position that allows adequate and safe access for service as per guidelines in this manual
and applicable standards. The cost of any equipment and additional labour involved in accessing such heater
installations will not be accepted by the manufacturer.

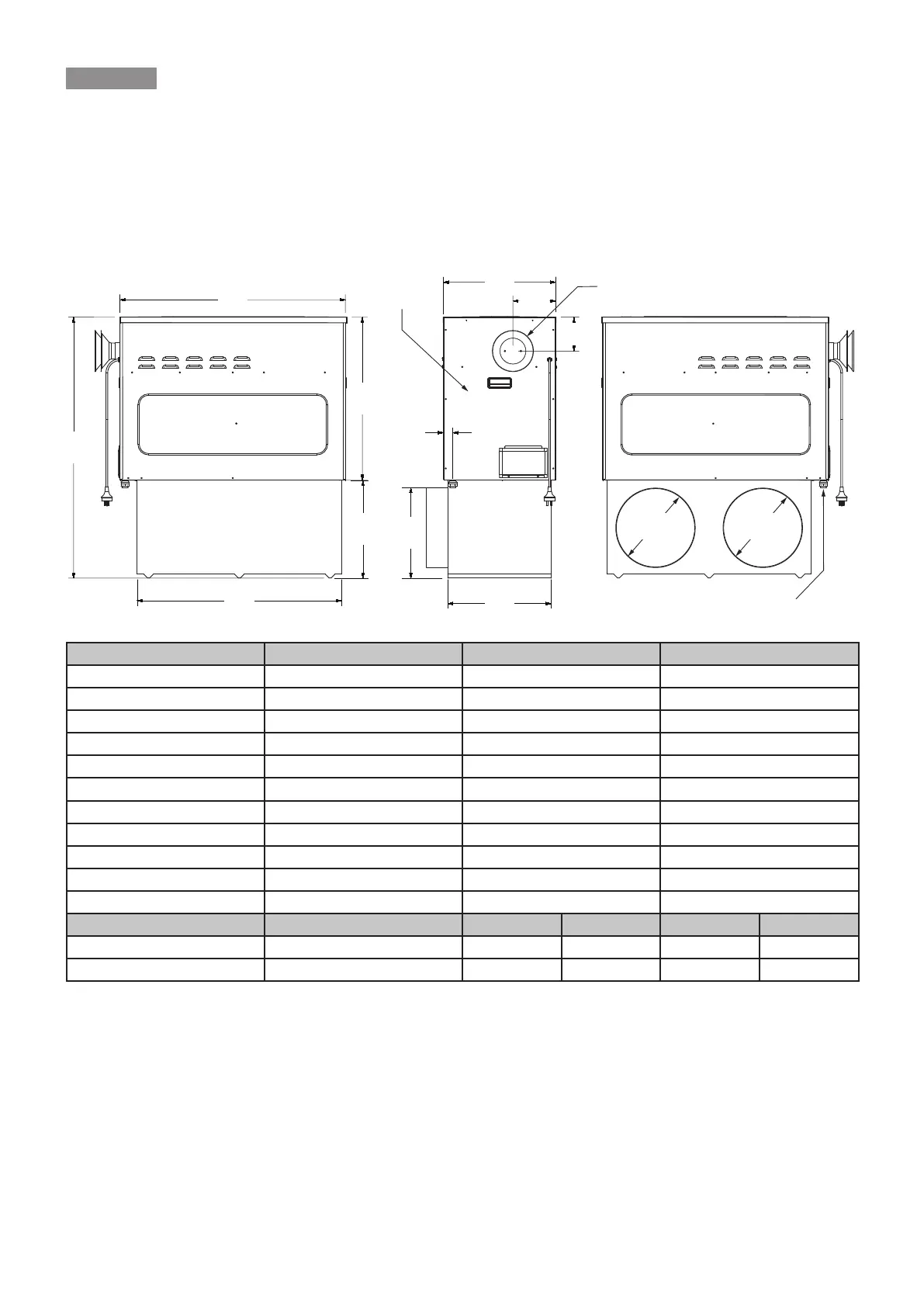

Diagram 1.
Dimension [mm] BX315C BX320C BX326C
A 985 985 1120
B 852 852 1028
C 616 616 706
D 370 370 415
E 772 772 952
F 342 342 388
G 36 36 42
H 426 426 588
I 162 162 244
J 126 126 126
K 392 392 558
Base Box Std Std XA Std XA
øSa 300 300 350 350 400
øRa 300 300 350 350 400
H
I
J
G
F
K
B
C
A
E
D
FLUE TERMINAL
GAS INLET
HEATER
END
øSa øRa
