Rinnai 26 Ducted Gas Heater IM
8.2 WIRING THE BRIVIS PROGRAMMABLE THERMOSTAT
(
ADD
-
ON & FAN ONLY
)
The Classic control board does not have provision for “Add-On” cooling or “Fan Only” operation. For “Add-On”
cooling or “Fan Only” operation the unit must be configured.
To facilitate Add-On Cooling or Fan Only operation an additional accessory, ‘ACC LOOM ADD-ON RELAY CLASSIC’
(Brivis Part No. B063283) must be fitted.
To configure a BX3C or 2PWN unit for “Add-On” cooling refer to Diagram 10.
To configure a BX3C or 2PWN unit for “Fan Only” operation refer to Diagram 10 and omit the “Y” connection. For
more information regarding connection of the Add-On relay refer to the installation instructions supplied with ‘ACC
LOOM ADD-ON RELAY CLASSIC’ (Brivis Part No. B063283).

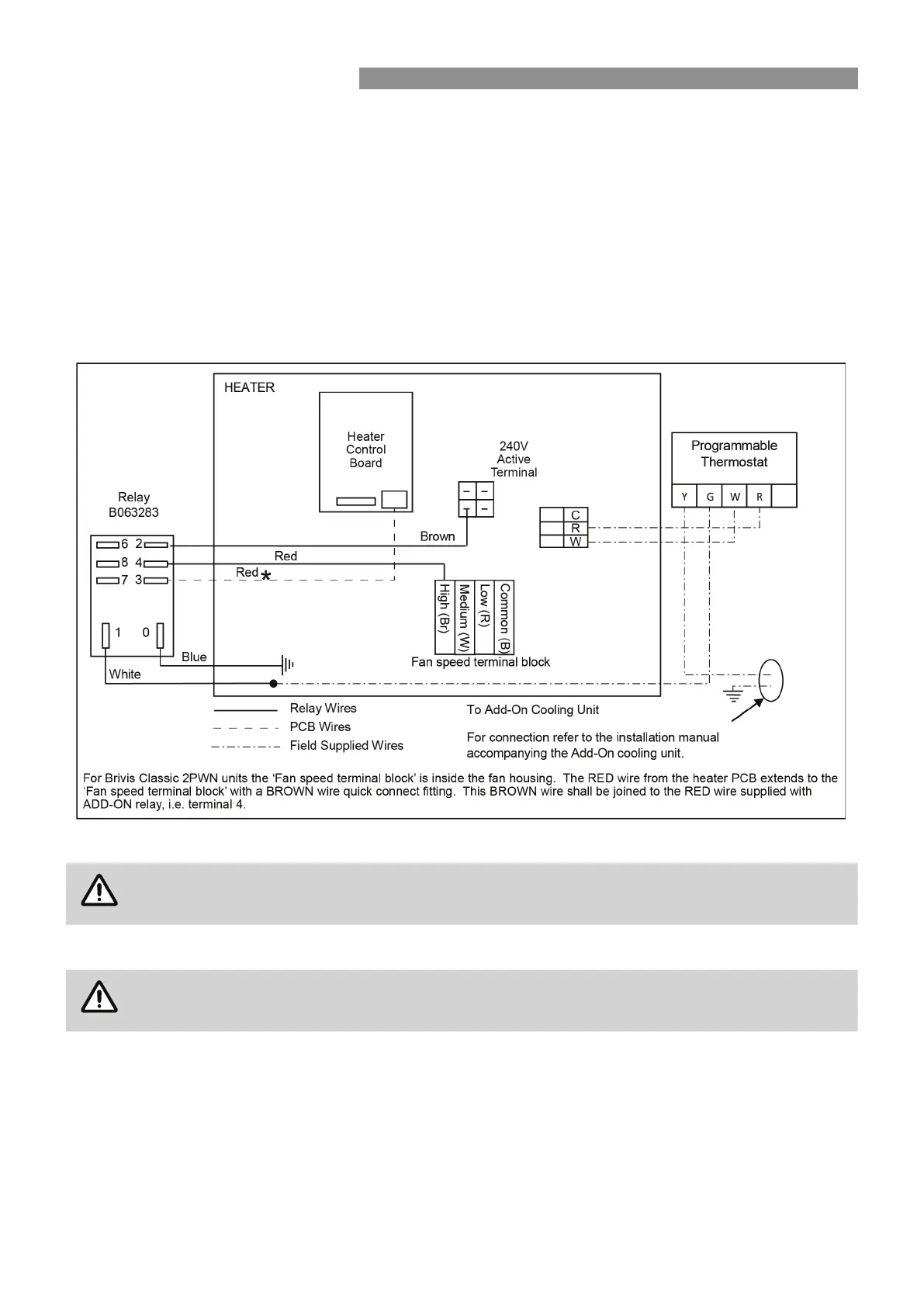

Diagram 10. BX3C & 2PWN Brivis Ice Add-On Schematic - Typical
For Brivis ICE Add-On connection to a Brivis Classic heater (CC3, 2PWN, or BX3C) an additional
relay ‘ACC LOOM ADD-ON RELAY CLASSIC’ (Brivis Part No. B063283) must be tted.
Contact Technical Support for information on superseded Brivis Heaters.
All electrical works to comply with relevant regulations.
Requires Brivis programmable Thermostat.
THERMOSTAT INSTALLATION
