Rinnai 18 Ducted Gas Heater IM

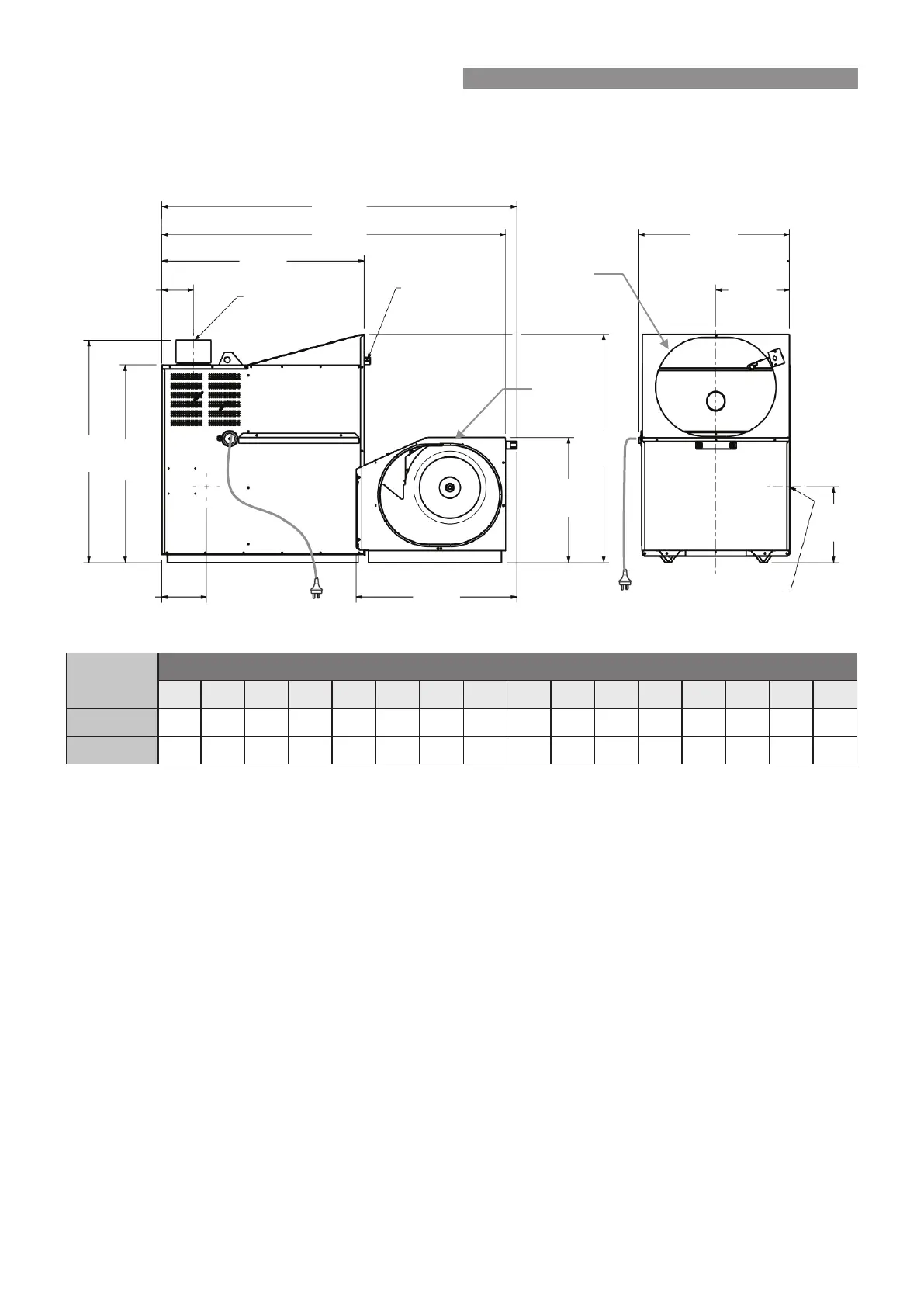

3.8 HEATER DIMENSIONS 2PW26N & 2PW26N XA
Diagram 5.
Table 3. 2PW26N & 2PW26N XA unit dimensions
Model
Dimension (mm)
A B C D E F G H I J K L M øN øRa øSa
2PW26N 704 1226 538 722 113 160 445 572 263 269 813 791 1266 125 350 350
2PW26N XA 704 1226 538 722 113 160 445 572 263 269 813 791 1266 125 400 400
øRa
øSa
C
A
B
D
E
F
G
H
I
J
L
K
øN
M
Overheat
Switch
Flue Terminal
Gas Inlet
HEATER DIMENSIONS AND CLEARANCES
