33
Chapter 4:
Video Connections
This section describes the inputs and outputs of the various cards that can be installed in the ES-2000 Expansion
system.
Personal TBC III Connectors

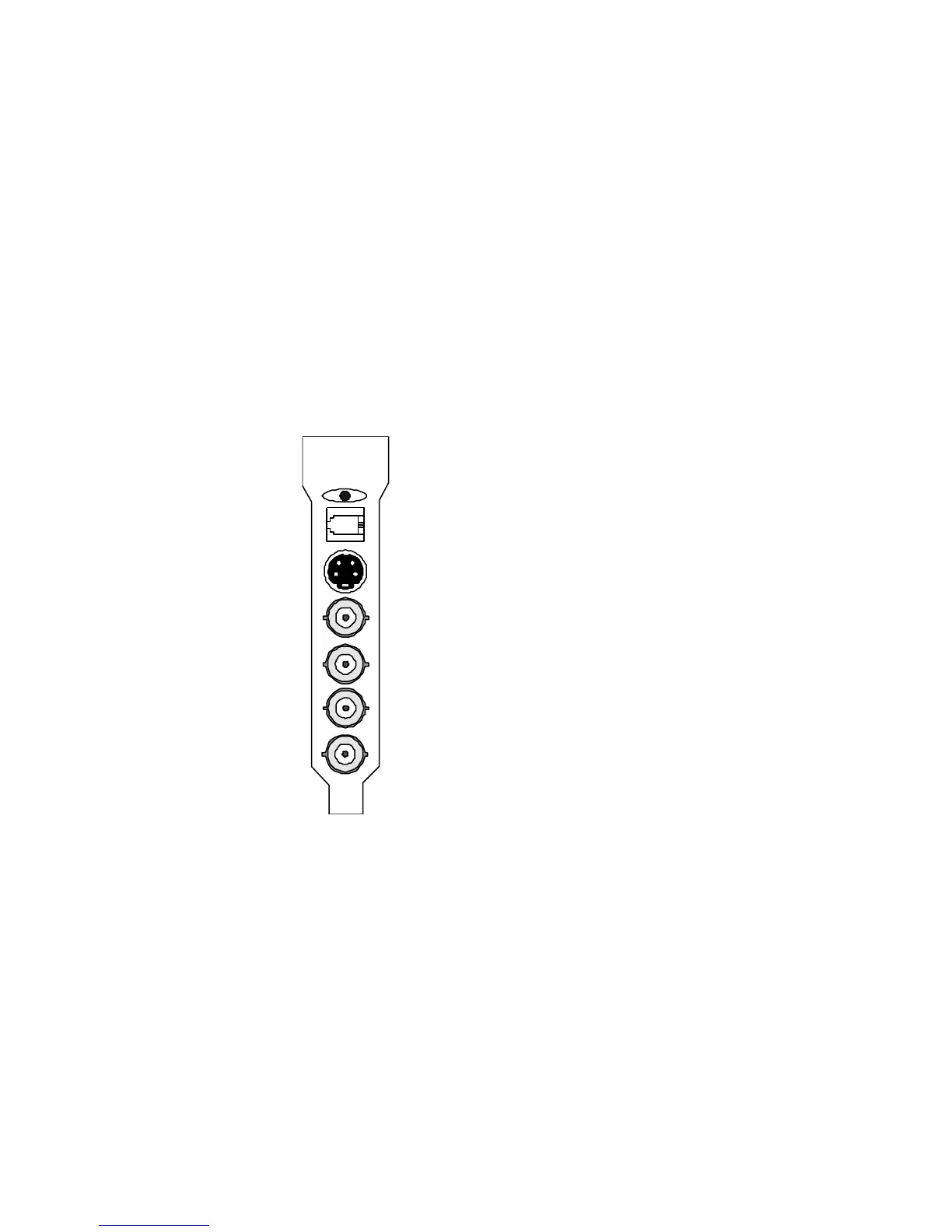

FIGURE 4-1: Personal TBC III I/O Connectors
SERIAL DATA INPUT (RJ-14)
This connector is not used when the TBC III card is used in the ES-2200 Expansion System.
S-VIDEO INPUT
This 4-pin connector is used to input S-Video (SVHS or Hi8) to the TBC card. It is normally connected to the S-Video
output of a playback VCR using a standard 4-pin to 4-pin S-Video cable. Some JVC industrial S-VHS players use a 7-
pin connector for their S-Video output. To interface with such machines, a 7-pin to 4-pin adapter cable is required.
NTSC VIDEO INPUT
This BNC connector feeds composite NTSC video to the TBC card. It can be connected to the video output of a
playback VCR or any composite NTSC source such as a TV tuner, laser disk player, camera, etc.
S-VIDEO INPUT
NTSC VIDEO INPUT
NTSC VIDEO OUTPUT
MULTI I/O OUTPUT
GENLOCK INPUT
