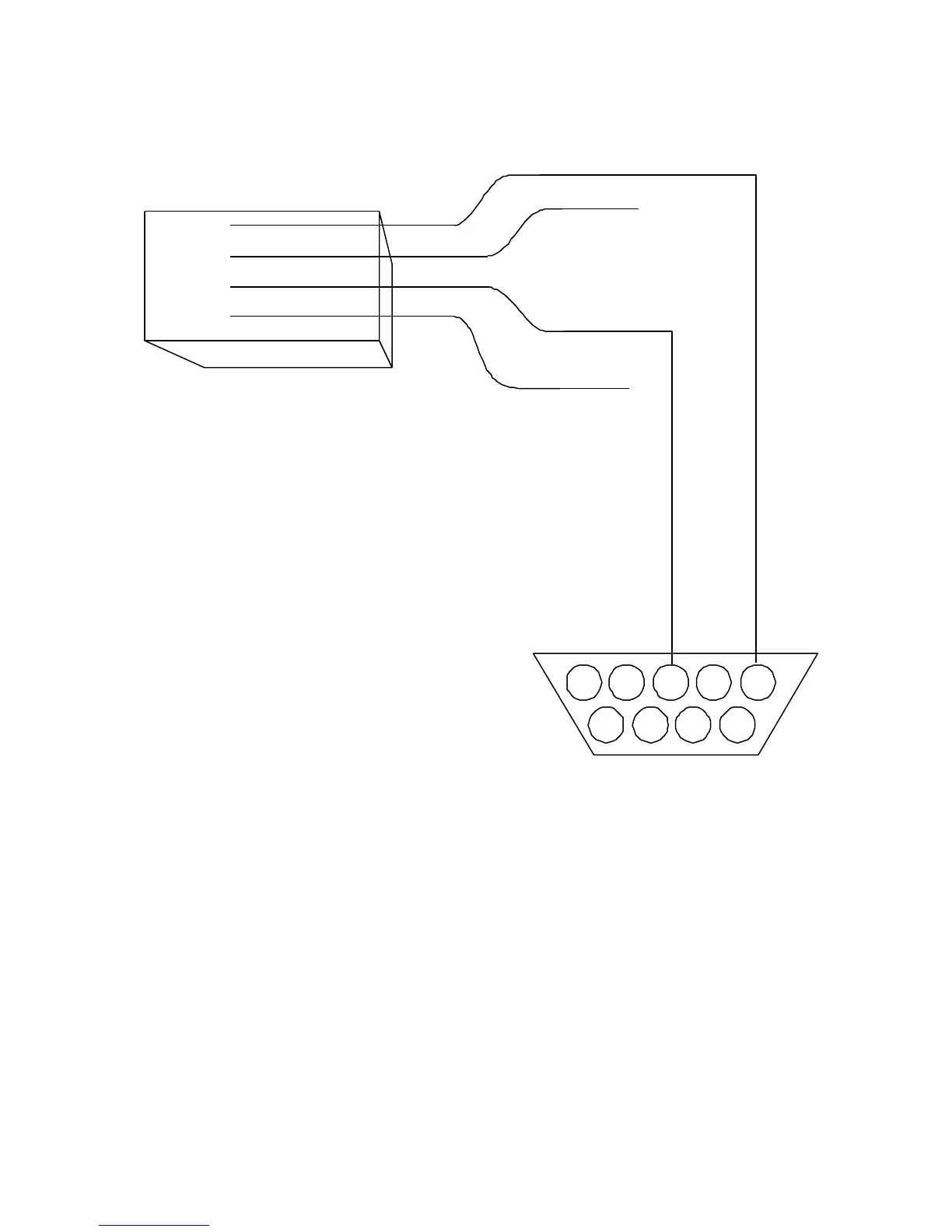

Figure 5-2: RC-2000 to ES-2200 Cable Assembly
BLACK
RED
GREEN
YELLOW
RECEIVE GROUND
DB-9-M CONNECTOR
CONNECT TO ES-2200
RS-232 REMOTE
INPUT PORT
CONNECT TO RC-2000
RS-232 REMOTE PORT
(TYPE RJ-14)
NOTE: RC-2000 MUST BE
POWERED BY AN EXTERNAL
9 VDC ADAPTOR
TAB DOWN, 4-PIN MODULAR
TELCO HANDSET PLUG
1 2 3 4 5
6 7 8 9
