Broadcast DPS ES-2200 - APPENDICES

54
Unit 2
MicroSYNC
Unit 1
MicroSYNC
Unit 4
Routing Switcher
Unit 3
MicroSYNC
Unit 6
V-Scope
Unit 5
MicroSYNC
Power Supply
Power Supply
Power Supply
DIP Switches
3 DOWN
4 DOWN
5 DOWN
6 DOWN
7 DOWN
DIP Switches
3 UP
4 UP
5 UP
6 UP
7 UP
DIP Switches
3 DOWN
4 DOWN
5 DOWN
6 UP
7 DOWN
DIP Switches
3 DOWN
4 DOWN
5 DOWN
6 DOWN
7 UP
DIP Switches
3 DOWN
4 DOWN
5 DOWN
6 UP
7 UP
ES-2200T
DIP Switches
1 UP
2 UP
3 UP
4 UP
5 UP
ES-22OOT
DIP Switches
1 UP
2 DOWN
3 DOWN
4 DOWN
5 DOWN
ES-2200T
DIP Switches
1 UP
2 UP
3 DOWN
4 DOWN
5 DOWN
ES-2200 #1 ES-2200 #2 ES-2200 #3
DB-9-M
DB-9-M
DB-9-M
DB-9-F
DB-9-F
Ribbon Cable Daisy Chain (User Supplied)
RS-232 Cable
(Customer Supplied)
Computer Control
ES-2200S
DIP Switches
2 UP
3 UP
4 UP
5 UP
6 UP
ES-2200S
DIP Switches
2 UP
3 DOWN
4 DOWN
5 DOWN
6 DOWN
ES-2200S
DIP Switches
2 UP
3 UP
4 DOWN
5 DOWN
6 DOWN

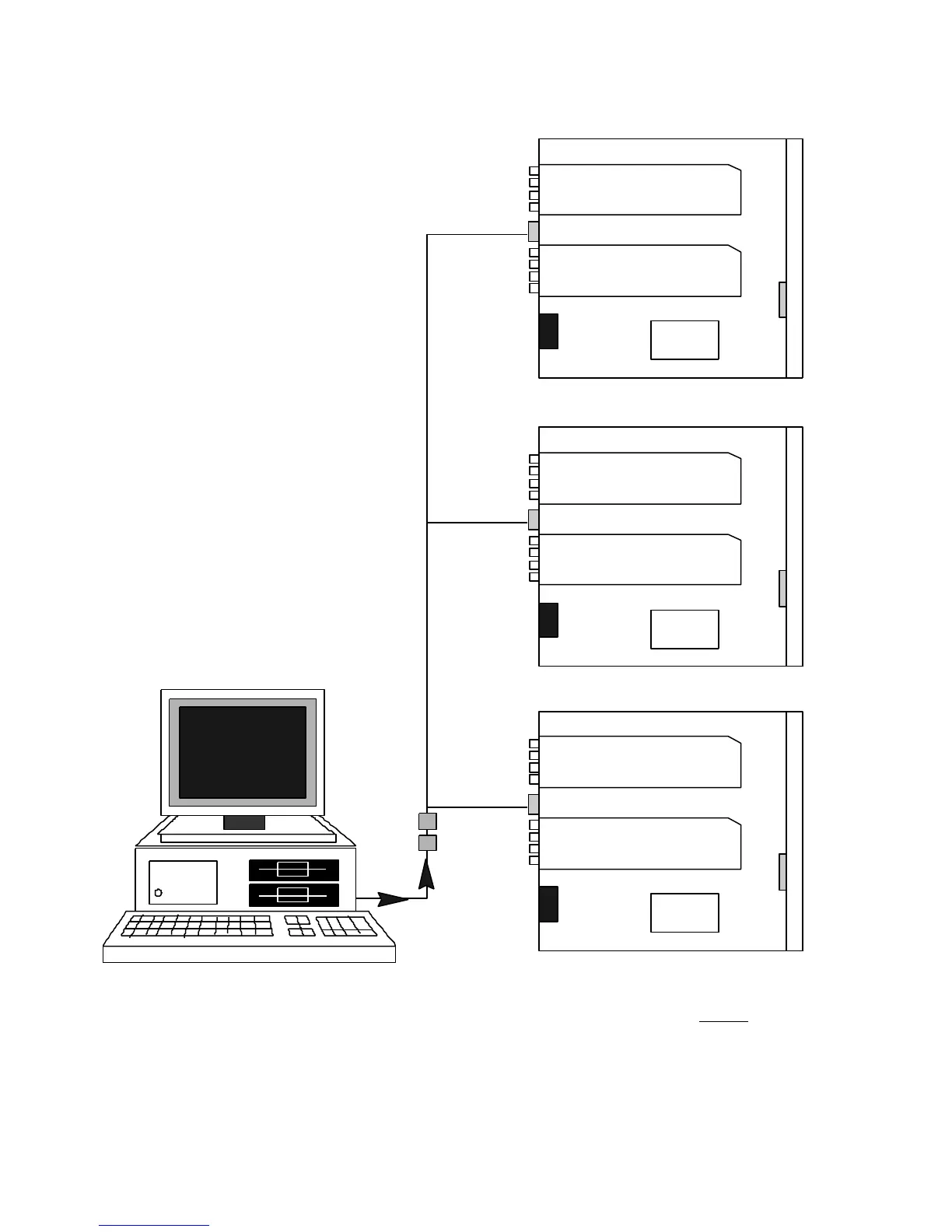

Figure 5-4: Controlling Three ES-2200 Units
