42
BUFFERED VIDEO OUTPUT
This BNC type connector provides a buffered video output signal, which is a copy of the video signal applied to the
input connector. It is normally connected to your record VCR.
SUPERIMPOSE OUTPUT
The ES-2000 front panel V-Scope control selection determines this BNC type connector output. When the
SUPERIMPOSE mode is selected, this output will contain the synthesized waveform/vector display superimposed on
the video input signal. When the SUPERIMPOSE mode is not selected, this output will be a copy of the video input
signal.
FULL TIME OUTPUT
This BNC type connector output contains the synthesized waveform/vector display superimposed on the input video
signal at all times. This output is normally connected to a video monitor (if one is available) which is dedicated to
displaying the V-Scope waveform/vector information.
4 3 2 1
INTERNAL SERIAL DATA
CONNECTORS
DIP Switches
DHE2 DHE1 DHE3
W/F Output
CHE1
B&W COLOR

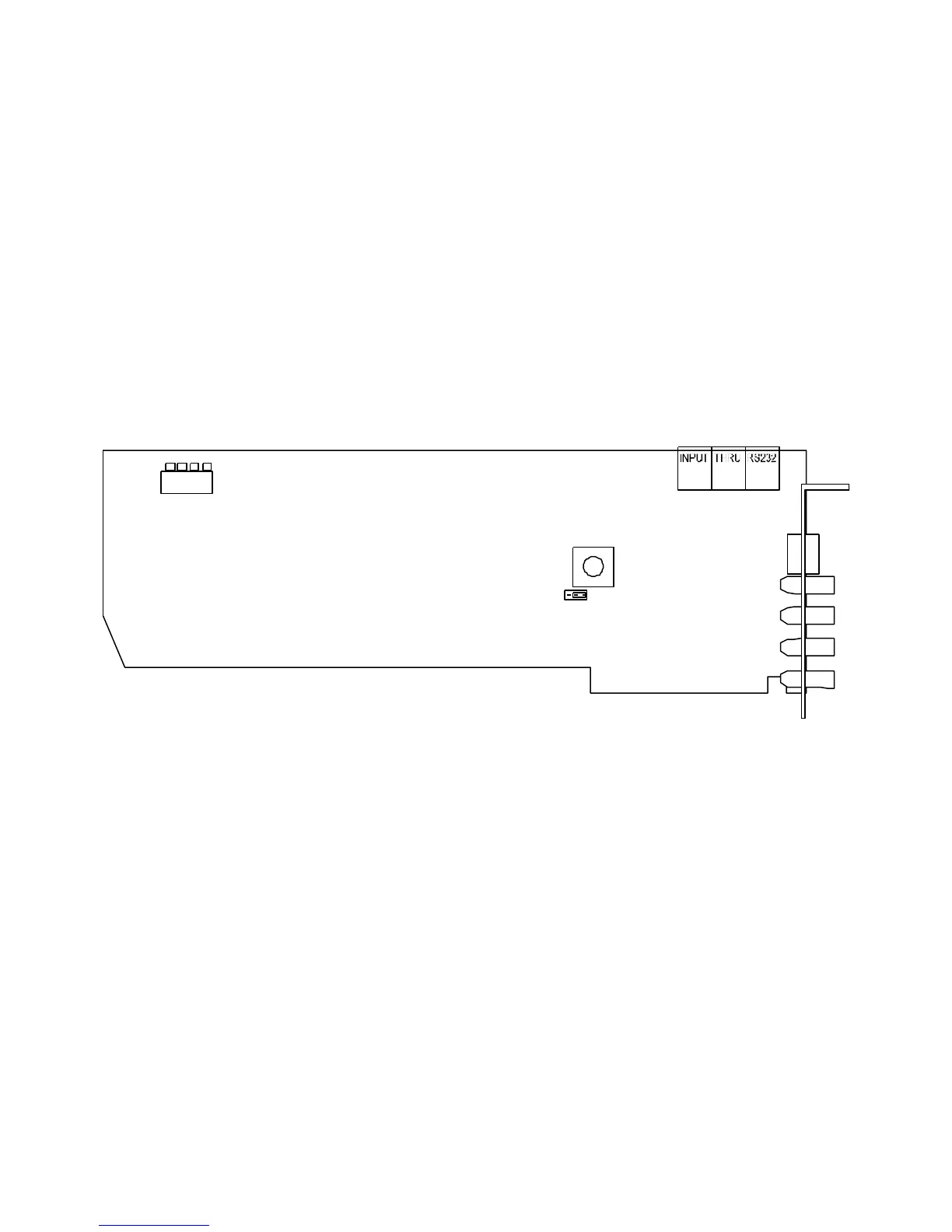

Figure 4-10: DPS Personal V-Scope Card
