Broadcom 95xx User Guide
Broadcom
®
95xx PCIe 4.0 MegaRAID
®
and HBA Tri-Mode Storage Adapters
Connector Type Description
J11 Global drive fault LED header 2-pin connector.
Connects to an LED that indicates whether a drive is in a fault condition.
J14 CacheVault power module interface
9-pin connector.
Connects the adapter to a CacheVault power module.
J17, J18 Storage interface connectors Two SFF-8654 8-port internal connectors.
Connect the adapter by cable to the storage devices.
The following table describes the LEDs on the adapter.
Table 13: LED Designations
LED Type Description
LED 2 Yellow controller over temperature Stays on solid to indicate that the SAS3916 device temperature sensor is over the
temperature threshold. When the device is in the proper temperature range, this LED is
off.
LED 3 Green system heartbeat Indicates that the SAS3916 RoC ASIC is operating normally. This LED blinks at 1 Hz.
LED 5 Yellow supercap fault Indicates that the CacheVault power module is in fault state or is over temperature. This
LED resides on the nonheat-sink side of the board.
LED 6 Green ONFI activity Indicates when the ONFI is active for cache offload or recovery. This LED resides on the
nonheat-sink side of the board.
MegaRAID 9560-8i Adapter – Connector and LED Designations
The adapter is a 6.127 in. × 2.712 in. (155.65 mm × 68.90 mm) board. The component height on the top and bottom of the
adapter complies with the PCIe specification.
The following figure shows the connectors and LED locations on the adapter. Pin 1 on the headers and connectors is
highlighted in red in the figure.

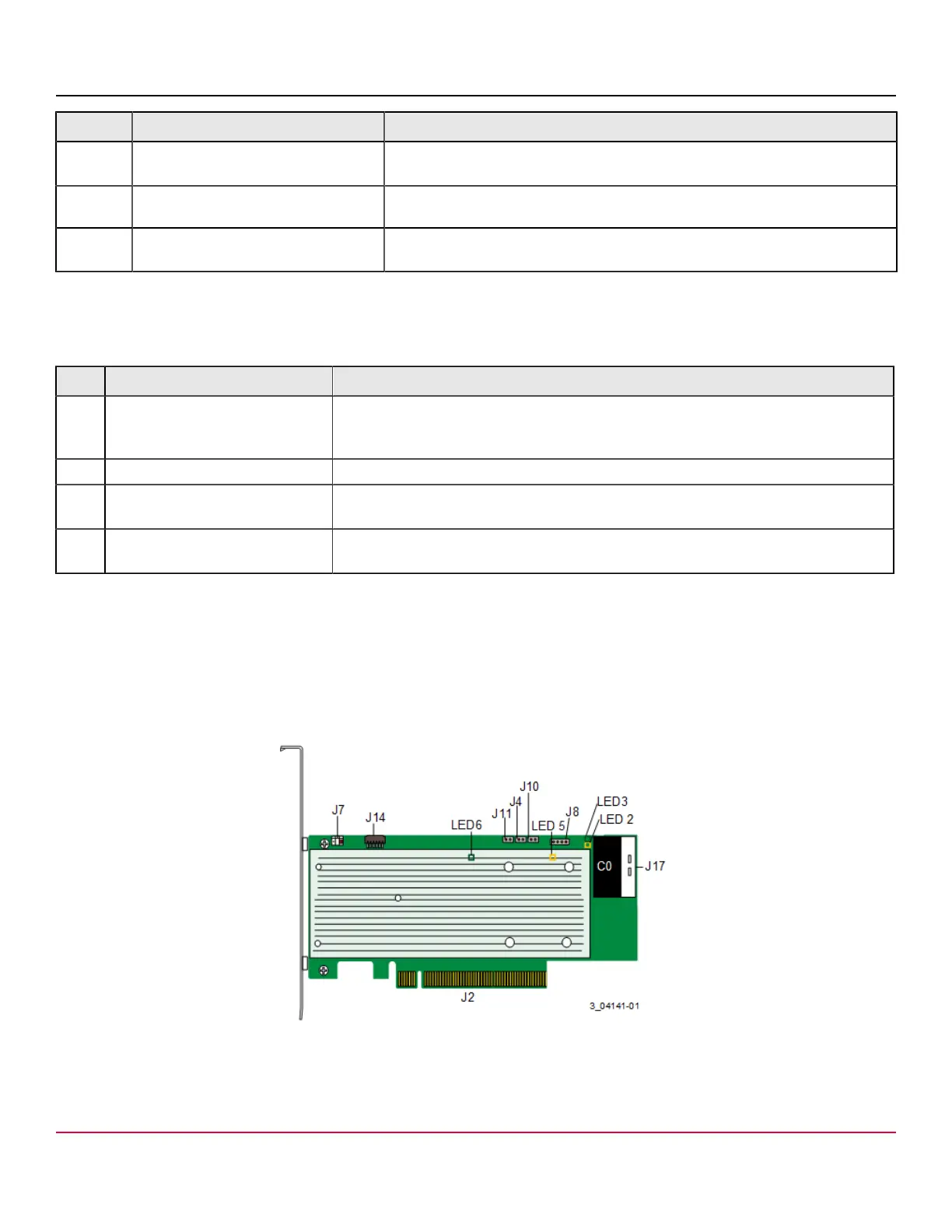

Figure 4: Card Layout for the MegaRAID 9560-8i Tri-Mode Storage Adapter
Broadcom
95xx-MR-HBA-Tri-Mode-UG104
25
