Broadcom 95 Series - Cable 05-60007-00

Broadcom 95xx User Guide Broadcom
®
95xx PCIe 4.0 MegaRAID
®
and HBA Tri-Mode Storage Adapters
Cable 05-60007-00

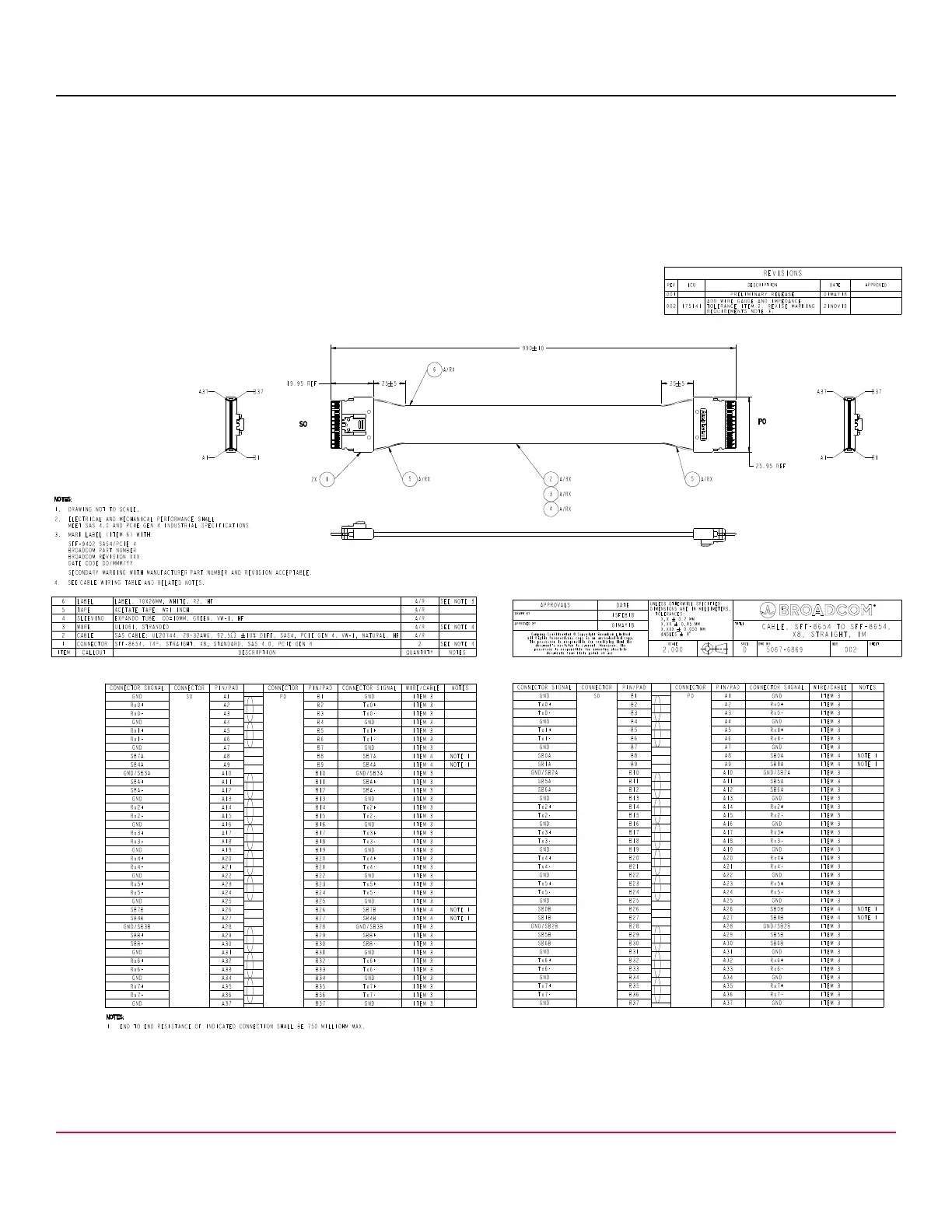

The following figure shows the drawing and pinout for Broadcom cable, 05-60007-00, a x8 SFF-8654 to x8 SFF-8654
connection.
Figure 16: Cable 05-60007-00 Drawing and Pinout
