The following table describes the LEDs on the adapter.
Table 21: LED Designations
LED Type Description
LED 2 Yellow IOC over
temperature
Stays on solid to indicate that the SAS3808 IOC temperature sensor is over the temperature
threshold. When the IOC is in the proper temperature range, this LED is off.
LED3 Green system heartbeat Indicates that the SAS3808 IOC is operating normally.
HBA 9500-16e Adapter – Connector and LED Designations
The adapter is a 6.600 in. × 2.707 in. (167.65 mm × 68.77 mm) board. The component height on the top and bottom of the
adapter complies with the PCIe specification.
The following figure shows the connectors and LED locations on the adapter. Pin 1 on the headers and connectors is
highlighted in red in the figure.

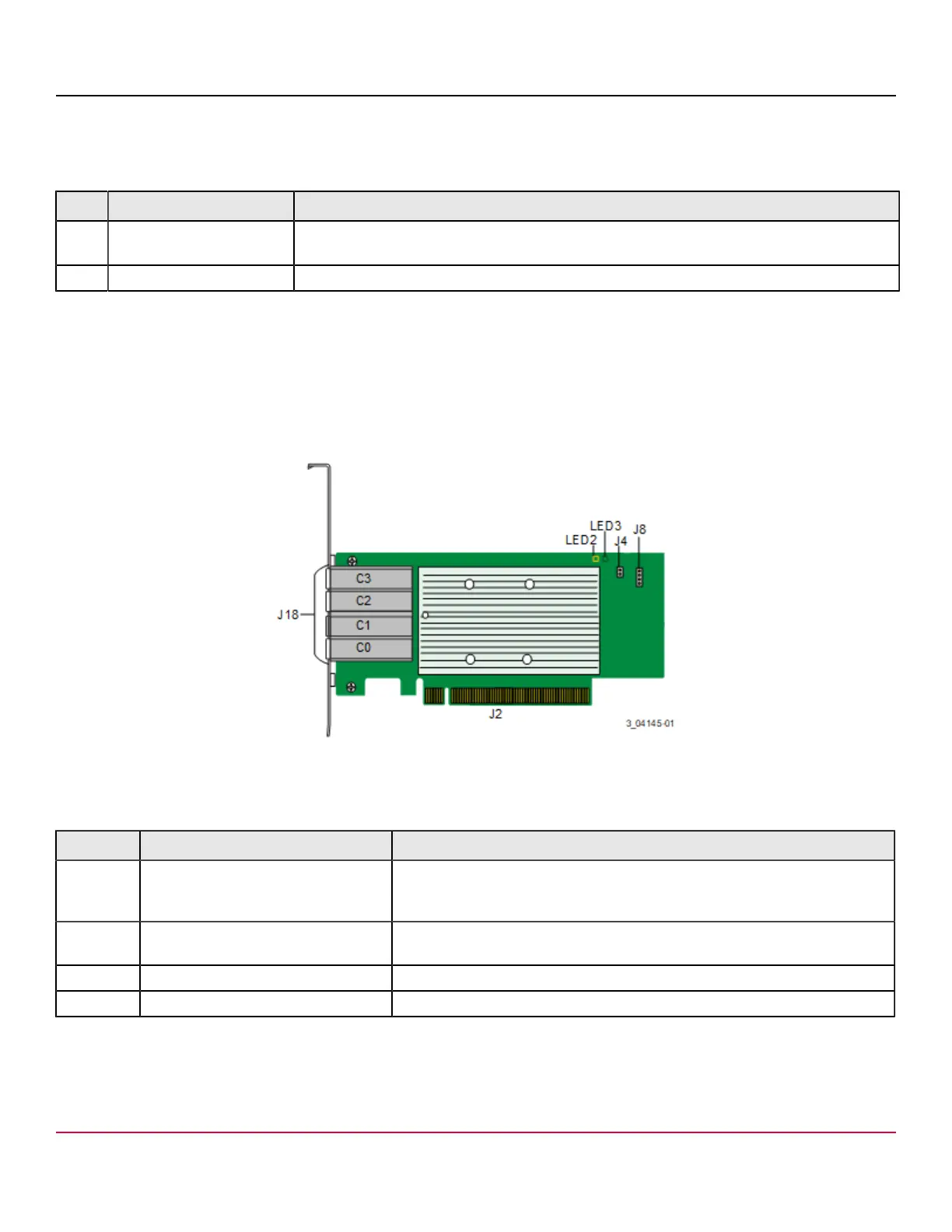

Figure 8: Card Layout of the HBA 9500-16e Storage Adapter
The following table describes the headers and connectors on the adapter.
Table 22: Connectors
Connector Type Description
J2 Standard board edge connector PCIe x8 board edge connector.
With the PCIe interface, this connector provides power to the board and an I
2
C
interface connected to the I
2
C bus for the IPMI.
J18 Storage interface connectors Four SFF-8644 external connectors.
Connect the adapter by cable to the storage devices.
J4 Default SBR header
2-pin connector. Reserved for Broadcom use.
J8 Onboard serial UART connector
4-pin connector. Reserved for Broadcom use.
The following table describes the LEDs on the adapter.
Broadcom
95xx-MR-HBA-Tri-Mode-UG104
30
