Document ENGSRVT52-CDUM100-R iSCSI Offload Page 97

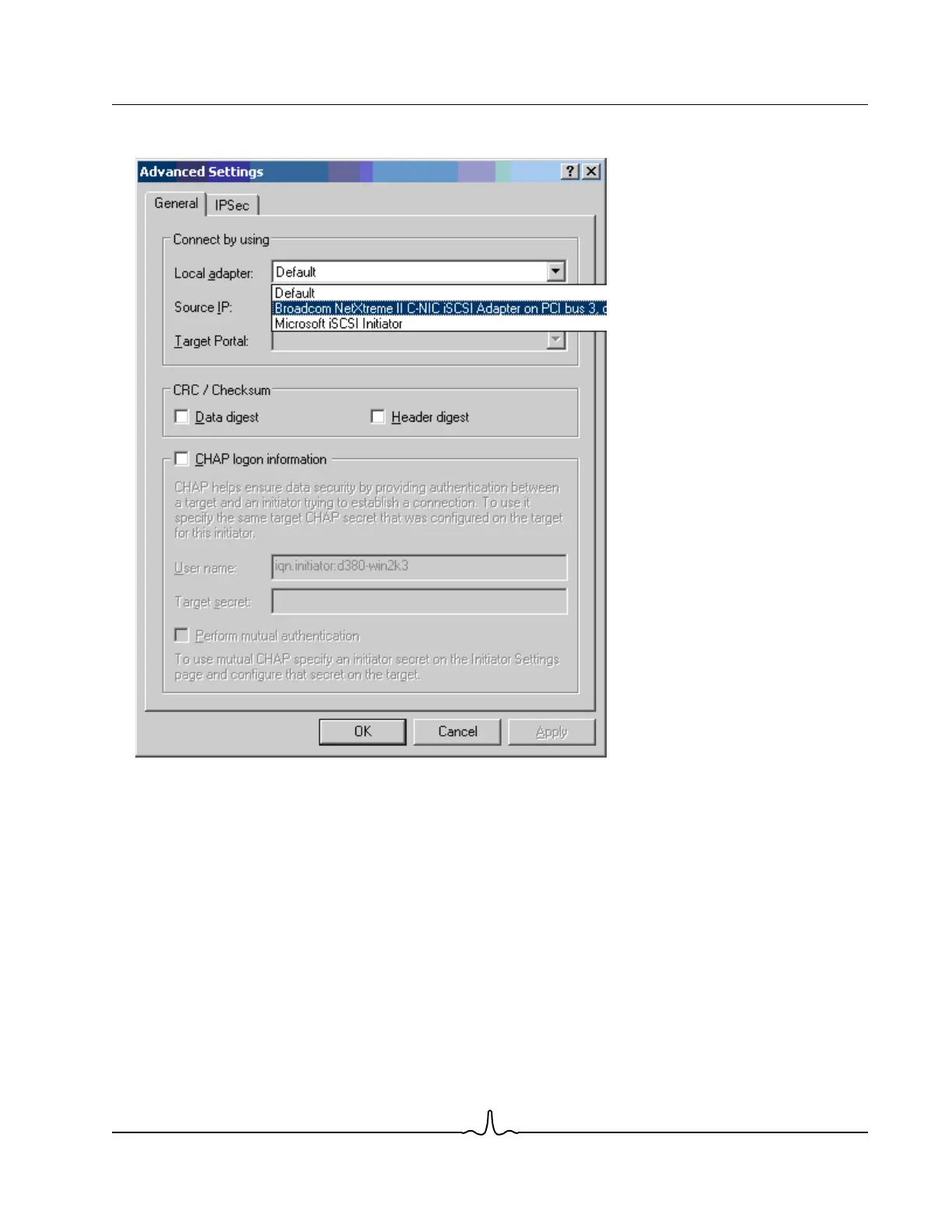

6. From the General tab, select Broadcom NetXtreme II C-NIC iSCSI Adapter from Local adapter.
