3. Replace the cover:
• Hold the cover on each side at the center and align the front of the cover with the end of
the serial interface on the front panel, so that the cover extends slightly past the front
panel of the device.
• Slide the cover backwards until it is fully flush with the top of the device and slides into
place.
• Re-insert the cover screws.
4. If applicable, re-attach the rack mounting ears.
5. Reinstall the device in the equipment rack, if applicable.
6. Re-insert any power cables and power on the device.
Your EPREM upgrade is now complete. Refer to the FastIron Configuration Guide for information
about the Edge Layer 3 features available with release 07.0.01.

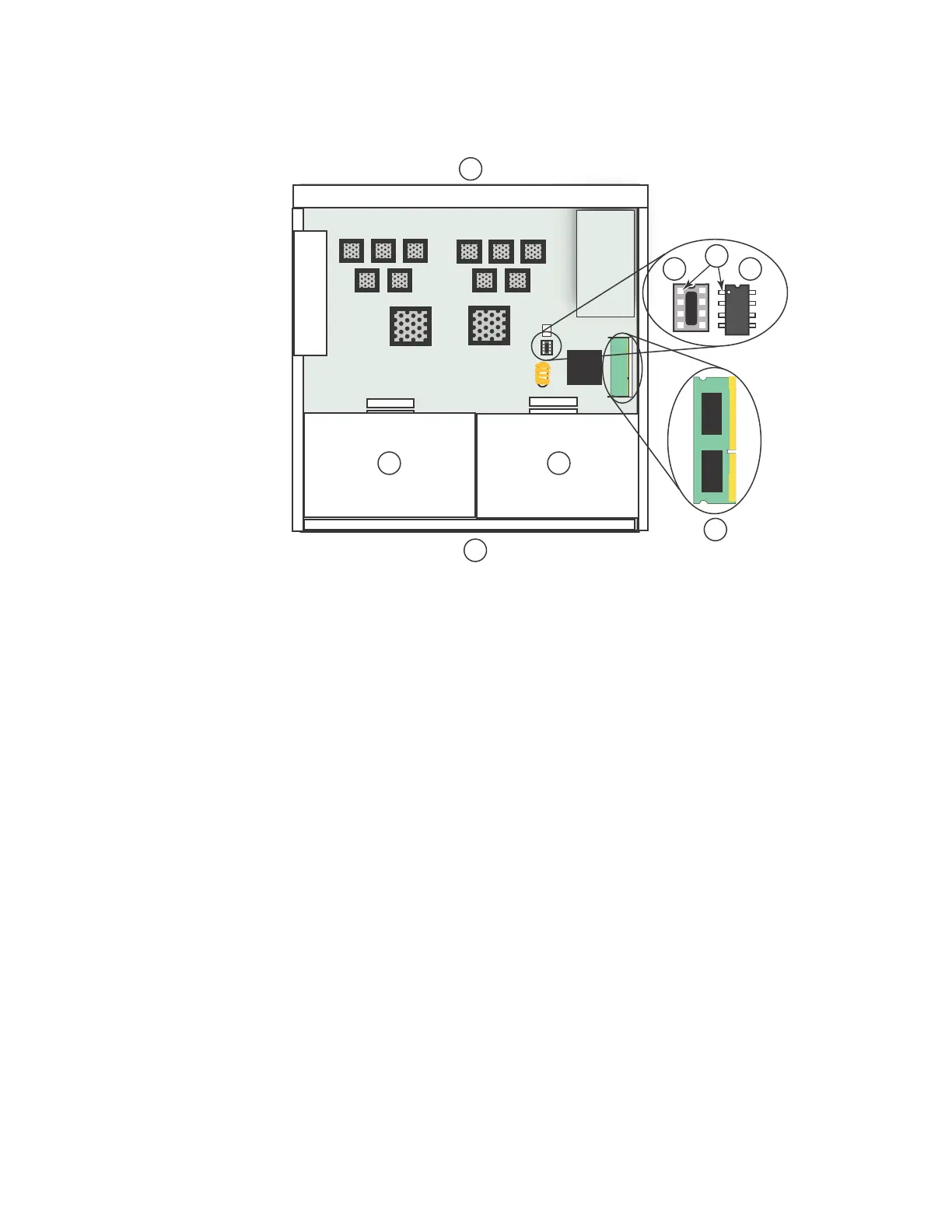

1Front panel
2 Power supplies
3Rear panel
4Pin 1
5EEPROM socket
6EEPROM
Memory DIMM
