3-8

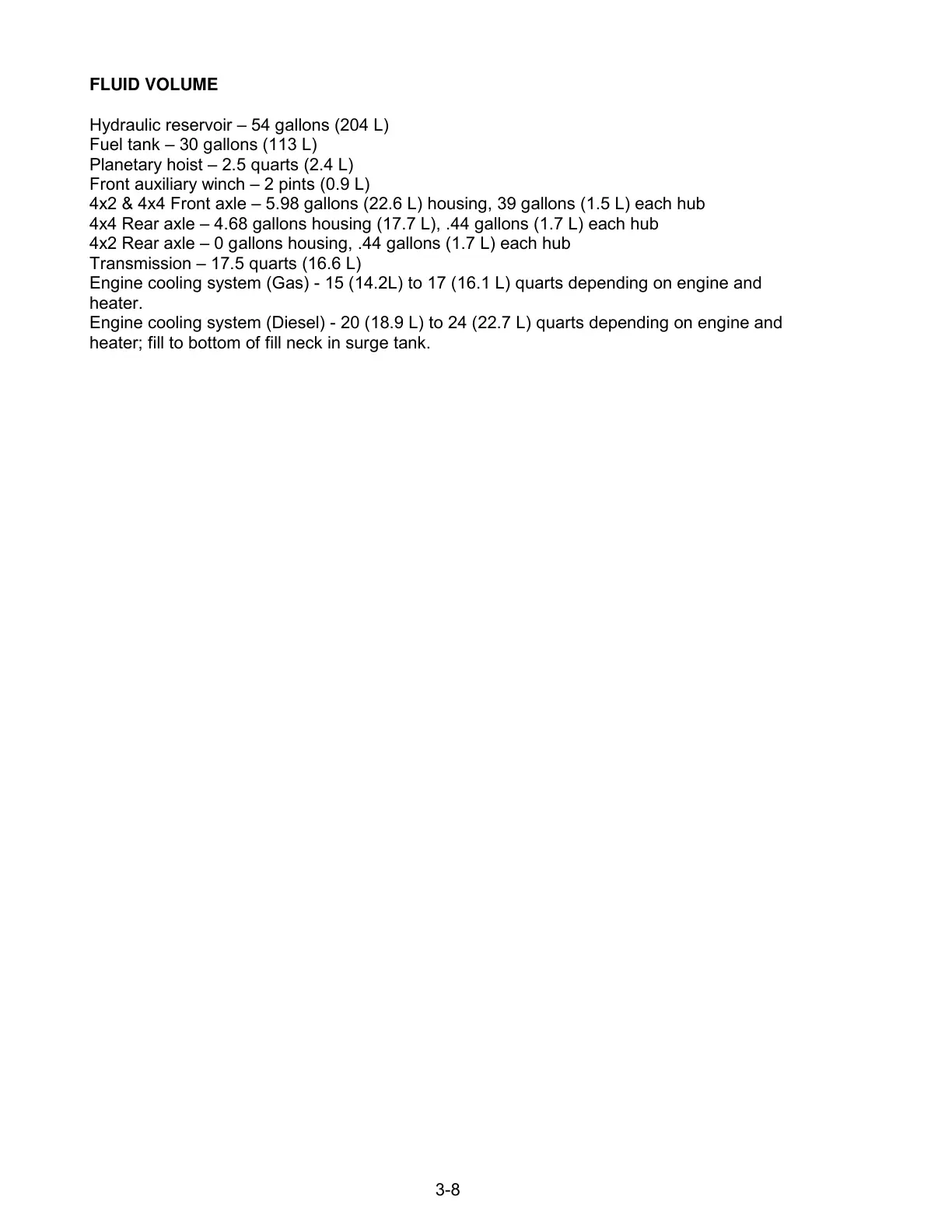

FLUID VOLUME
Hydraulic reservoir – 54 gallons (204 L)
Fuel tank – 30 gallons (113 L)
Planetary hoist – 2.5 quarts (2.4 L)
Front auxiliary winch – 2 pints (0.9 L)
4x2 & 4x4 Front axle – 5.98 gallons (22.6 L) housing, 39 gallons (1.5 L) each hub
4x4 Rear axle – 4.68 gallons housing (17.7 L), .44 gallons (1.7 L) each hub
4x2 Rear axle – 0 gallons housing, .44 gallons (1.7 L) each hub
Transmission – 17.5 quarts (16.6 L)
Engine cooling system (Gas) - 15 (14.2L) to 17 (16.1 L) quarts depending on engine and
heater.
Engine cooling system (Diesel) - 20 (18.9 L) to 24 (22.7 L) quarts depending on engine and
heater; fill to bottom of fill neck in surge tank.
