1-5

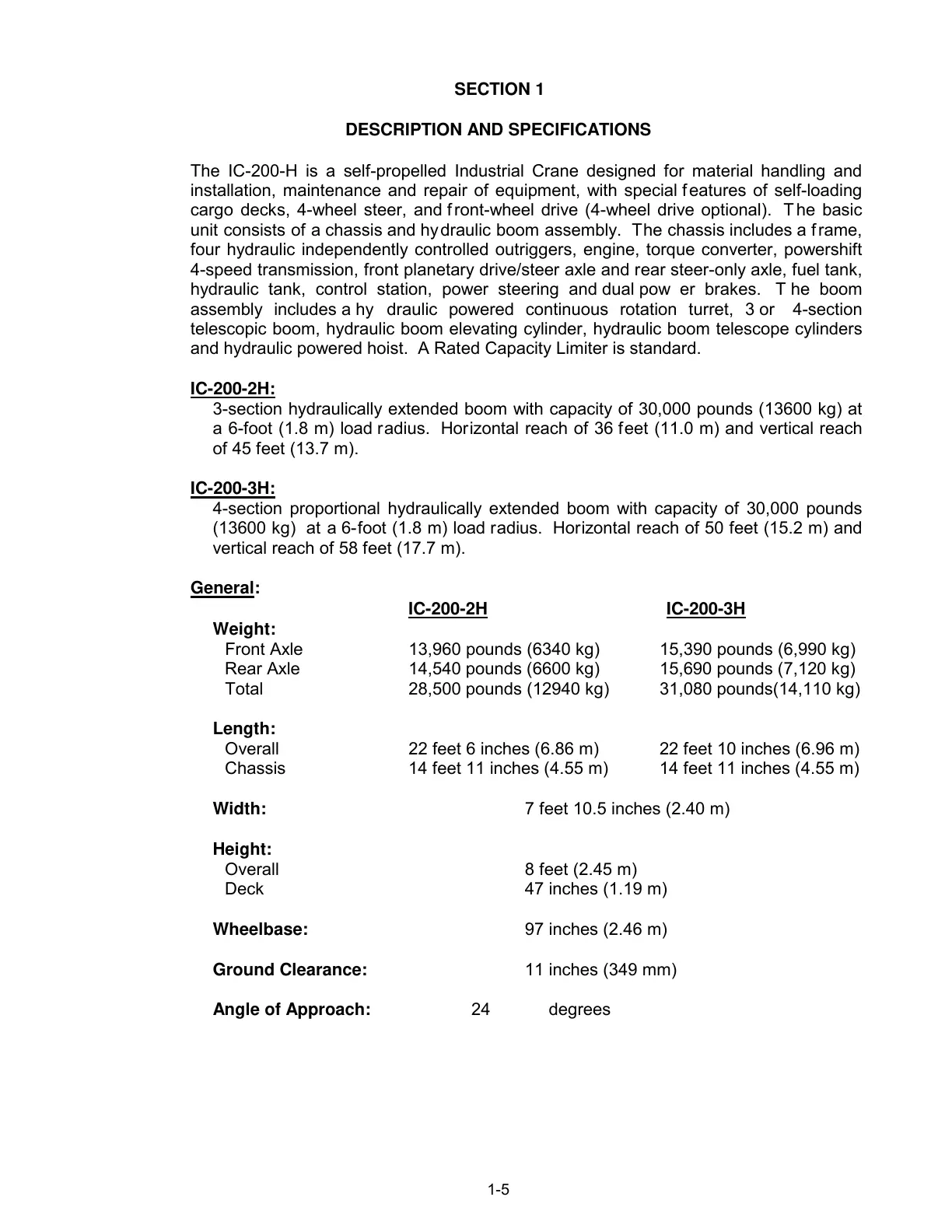

SECTION 1
DESCRIPTION AND SPECIFICATIONS
The IC-200-H is a self-propelled Industrial Crane designed for material handling and
installation, maintenance and repair of equipment, with special f eatures of self-loading
cargo decks, 4-wheel steer, and f ront-wheel drive (4-wheel drive optional). T he basic
unit consists of a chassis and hydraulic boom assembly. The chassis includes a f rame,
four hydraulic independently controlled outriggers, engine, torque converter, powershift
4-speed transmission, front planetary drive/steer axle and rear steer-only axle, fuel tank,
hydraulic tank, control station, power steering and dual pow er brakes. T he boom
assembly includes a hy draulic powered continuous rotation turret, 3 or 4-section
telescopic boom, hydraulic boom elevating cylinder, hydraulic boom telescope cylinders
and hydraulic powered hoist. A Rated Capacity Limiter is standard.
IC-200-2H:
3-section hydraulically extended boom with capacity of 30,000 pounds (13600 kg) at
a 6-foot (1.8 m) load radius. Horizontal reach of 36 feet (11.0 m) and vertical reach
of 45 feet (13.7 m).
IC-200-3H:
4-section proportional hydraulically extended boom with capacity of 30,000 pounds
(13600 kg) at a 6-foot (1.8 m) load radius. Horizontal reach of 50 feet (15.2 m) and
vertical reach of 58 feet (17.7 m).
General
:
IC-200-2H
IC-200-3H
Weight:
Front Axle 13,960 pounds (6340 kg) 15,390 pounds (6,990 kg)
Rear Axle 14,540 pounds (6600 kg) 15,690 pounds (7,120 kg)
Total 28,500 pounds (12940 kg) 31,080 pounds(14,110 kg)
Length:
Overall 22 feet 6 inches (6.86 m) 22 feet 10 inches (6.96 m)
Chassis 14 feet 11 inches (4.55 m) 14 feet 11 inches (4.55 m)
Width: 7 feet 10.5 inches (2.40 m)
Height:
Overall 8 feet (2.45 m)
Deck 47 inches (1.19 m)
Wheelbase: 97 inches (2.46 m)
Ground Clearance: 11 inches (349 mm)
Angle of Approach: 24 degrees
