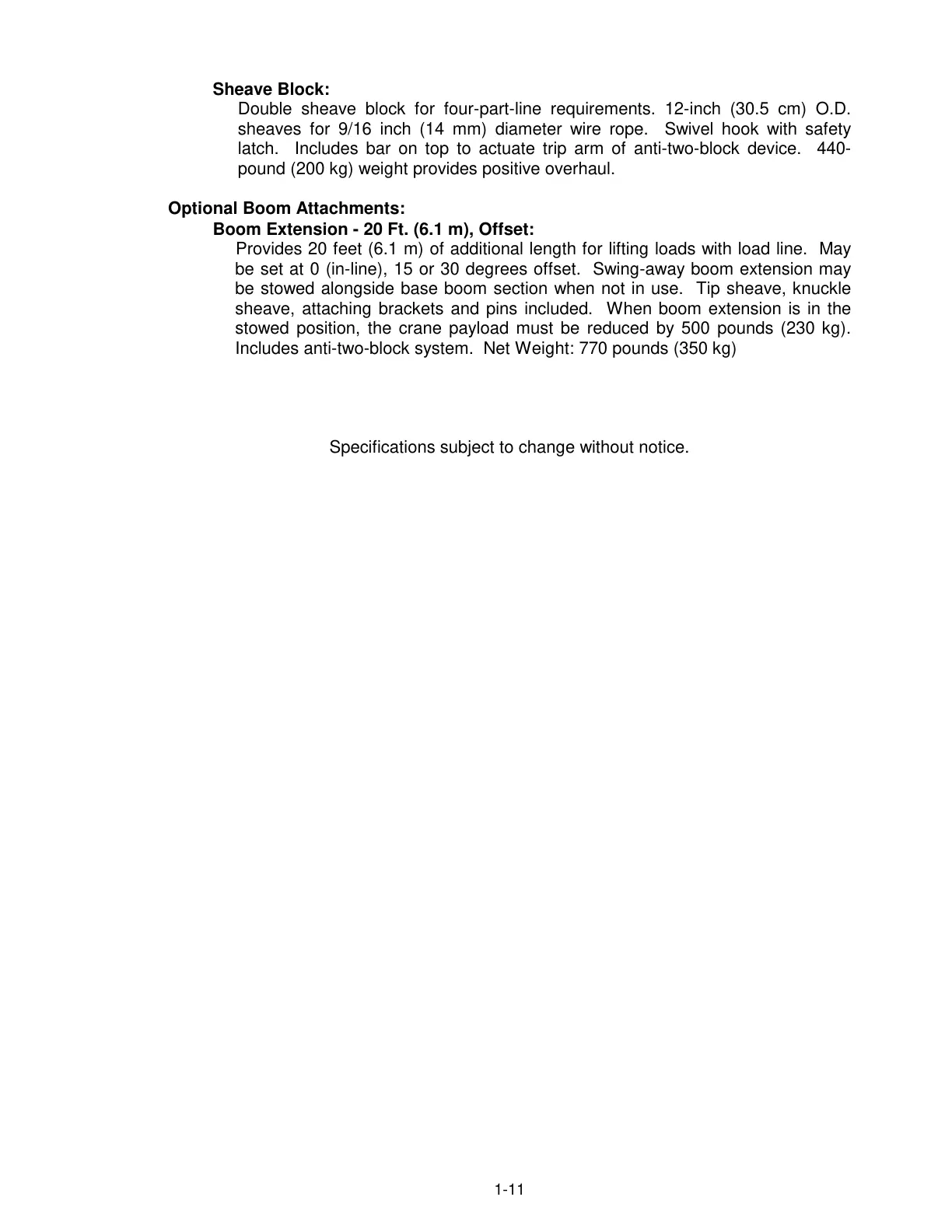

1-11
Sheave Block:
Double sheave block for four-part-line requirements. 12-inch (30.5 cm) O.D.
sheaves for 9/16 inch (14 mm) diameter wire rope. Swivel hook with safety
latch. Includes bar on top to actuate trip arm of anti-two-block device. 440-
pound (200 kg) weight provides positive overhaul.
Optional Boom Attachments:
Boom Extension - 20 Ft. (6.1 m), Offset:
Provides 20 feet (6.1 m) of additional length for lifting loads with load line. May
be set at 0 (in-line), 15 or 30 degrees offset. Swing-away boom extension may
be stowed alongside base boom section when not in use. Tip sheave, knuckle
sheave, attaching brackets and pins included. When boom extension is in the
stowed position, the crane payload must be reduced by 500 pounds (230 kg).
Includes anti-two-block system. Net Weight: 770 pounds (350 kg)
Specifications subject to change without notice.
