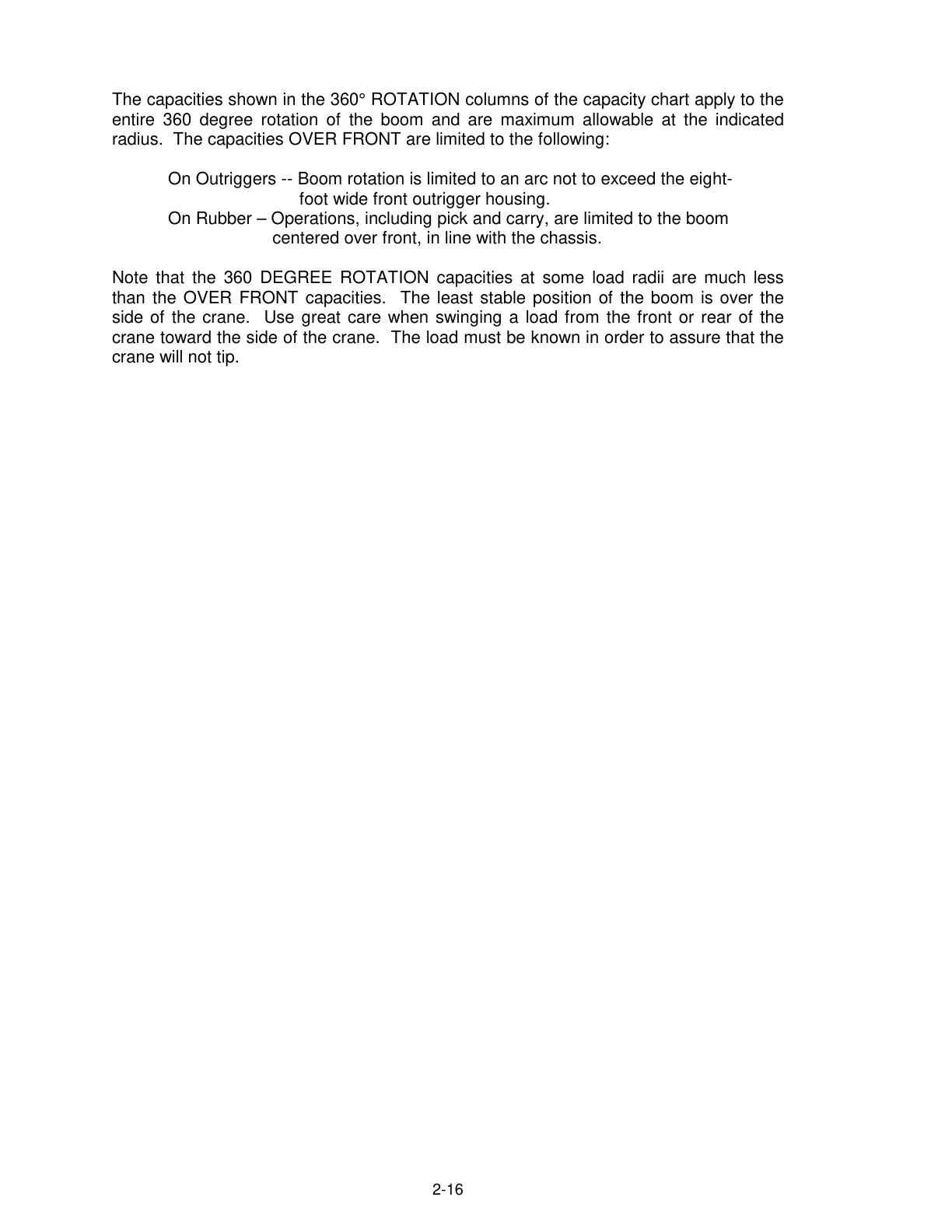

The capacities shown in the 360° ROTATION columns of the capacity chart apply to the
entire 360 degree rotation of the boom and are maximum allowable at the indicated
radius. The capacities OVER FRONT are limited to the following:
On Outriggers -- Boom rotation is limited to an arc not to exceed the eight-
foot wide front outrigger housing.
On Rubber – Operations, including pick and carry, are limited to the boom
centered over front, in line with the chassis.
Note that the 360 DEGREE ROTATION capacities at some load radii are much less
than the OVER FRONT capacities. The least stable position of the boom is over the
side of the crane. Use great care when swinging a load from the front or rear of the
crane toward the side of the crane. The load must be known in order to assure that the
crane will not tip.
