3-40

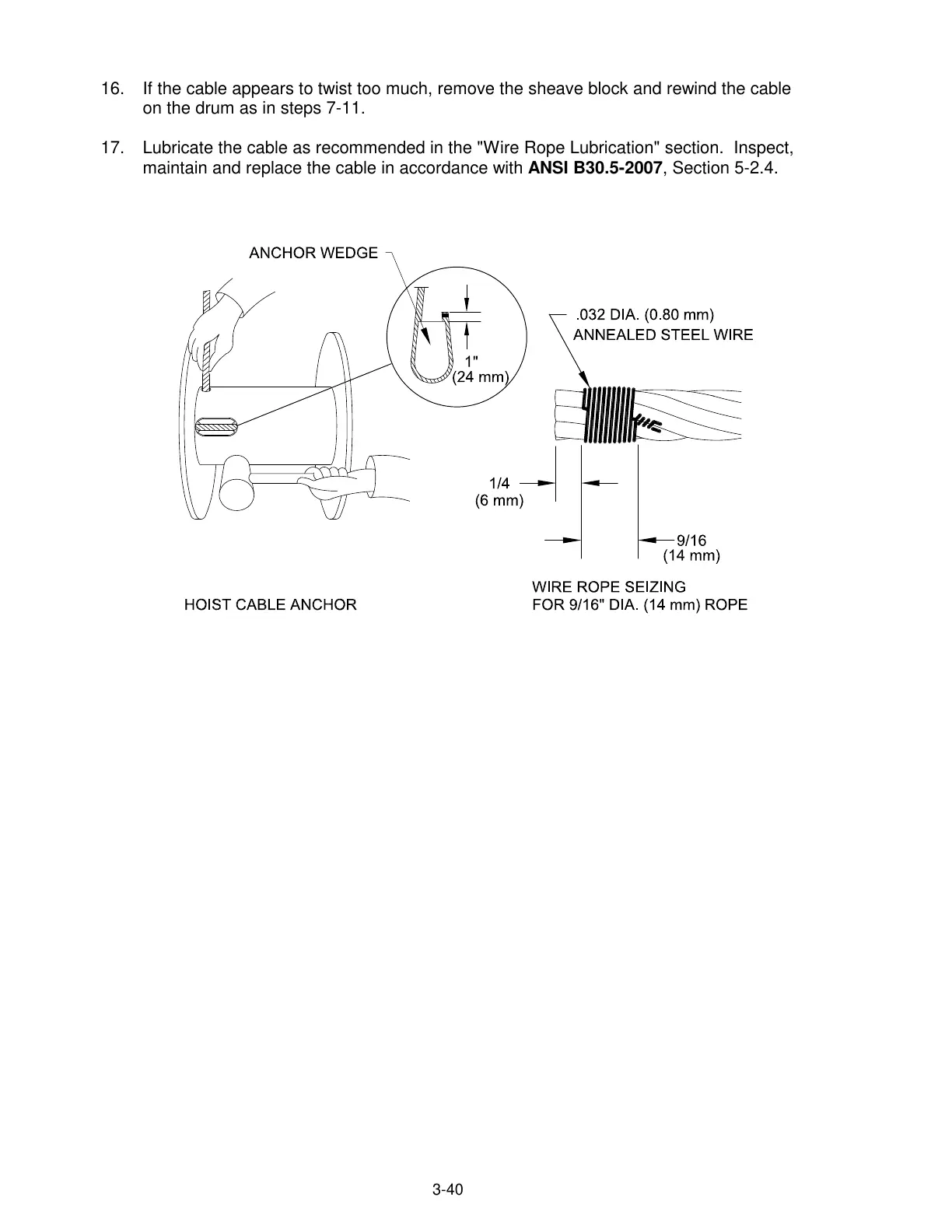

16. If the cable appears to twist too much, remove the sheave block and rewind the cable
on the drum as in steps 7-11.
17. Lubricate the cable as recommended in the "Wire Rope Lubrication" section. Inspect,
maintain and replace the cable in accordance with ANSI B30.5-2007, Section 5-2.4.
