Brookfield DV-I+ Series User Manual

Brookfield Engineering Laboratories, Inc. Page 45 Manual No. M/92-021-N0902

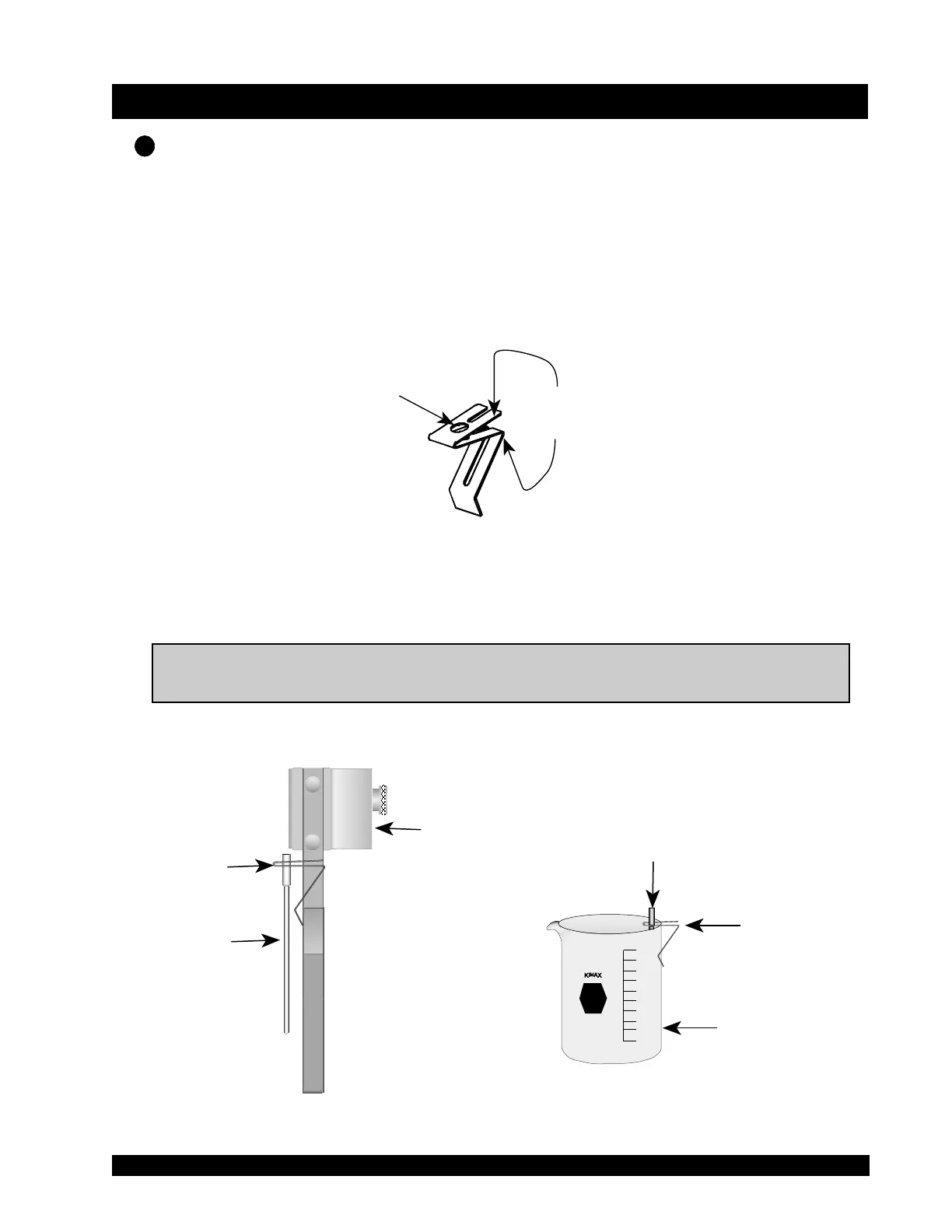

Appendix I - DVE-50 Probe Clip
Probe Clip DVE-50 is supplied with all model DV-II+ Viscometers, DV-III Rheometers, and
Digital Temperature Indicators. It is used to attach the RTD temperature probe to the LV Guard
Leg (Part No. B-20Y) or 600 ml low form Griffin beaker. Figure I-1 is a view of the Probe Clip,
showing the hole into which the RTD probe is inserted, and the slot which fits onto the LV guard
leg. When inserting the RTD probe into the Probe Clip, the upper part of the Clip is compressed
by squeezing the points shown in Figure I-1. Note: All Viscometer/Rheometer models — except
LV — use the Probe Clip as shown in Figure I-1 through I-3.
Figure I-1 shows the Probe Clip (with RTD temperature probe installed) mounted on the LV
guard leg.
RTD Probe
Hole
Squeeze Here when
installing RTD
Temperature Probe
Figure I-1
Figure I-3 shows the Probe Clip mounted in a 600 ml low form Griffin beaker. This mounting
may be used with LV, RV, HA and HB series instruments.
Note: The RTD probe must be parallel to the beaker wall so as not to interfere with the
viscosity measurement.
LV Guard Leg
Assembly, B-20Y
DVE-50
Probe Clip
RTD Temperature
Probe
600 ml
USA
No. 14000
500 ml
400
300
200
100
RTD Temperature
Probe
DVE-50
Probe Clip
600 ml Low Form
Griffin Beaker
Figure I-2 Figure I-3
