Maintenance 147
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d

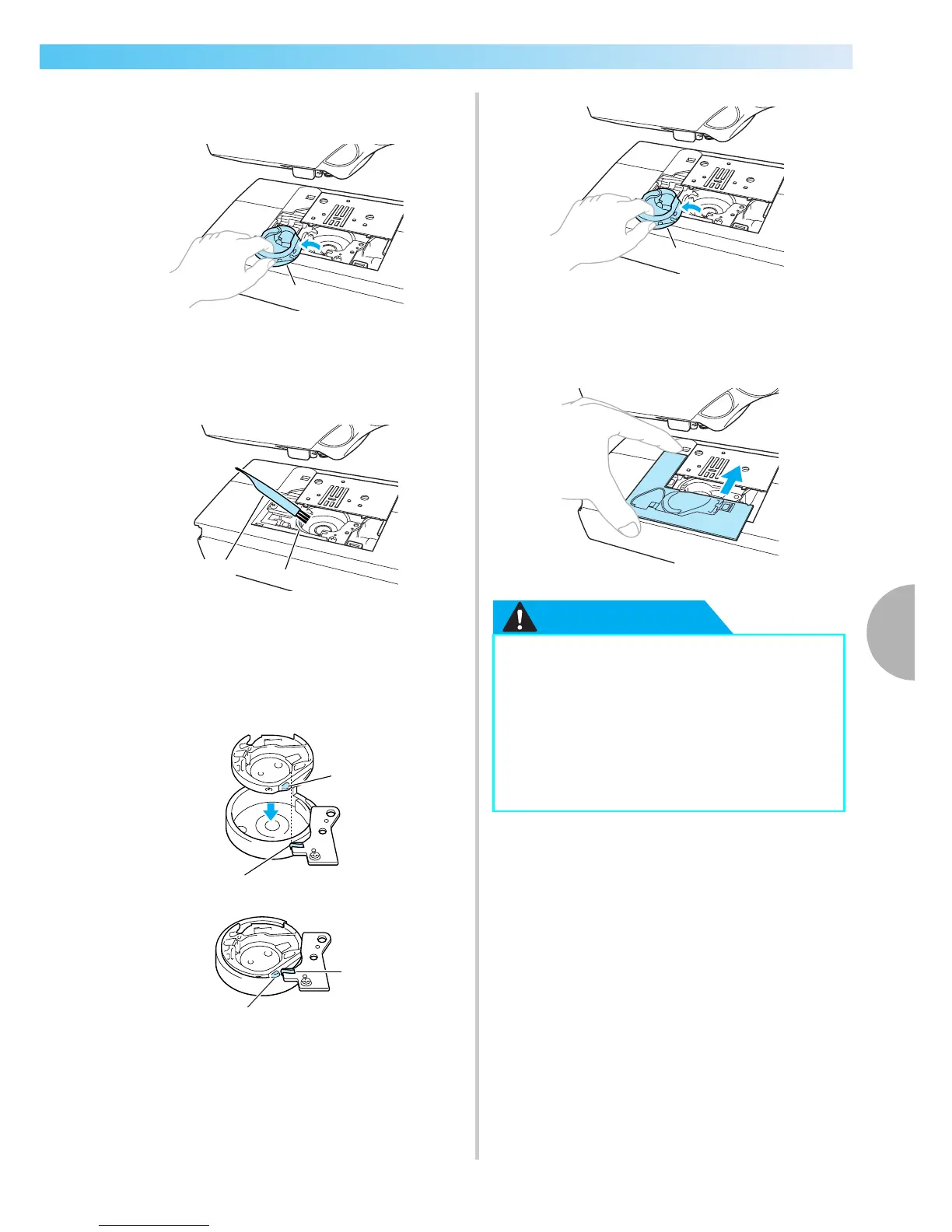

Remove the shuttle.
Grasp the shuttle, and then pull it out.
a Shuttle
e
Use the cleaning brush or a vacuum cleaner to
remove any lint and dust from the race and its
surrounding area.
a Cleaning brush
b Shuttle race
• Do not apply oil to the shuttle.
f
Insert the shuttle so that the projection on the
shuttle aligns with the spring.
a Projection
b Spring
a Shuttle
g
Insert the tabs on the needle plate cover into
the needle plate, and then slide the cover back
on.
CAUTION
1
1
2
1
2
2
1
● Never use a shuttle that is scratched,
otherwise the upper thread may become
tangled, the needle may break or sewing
performance may suffer. For a new
shuttle (part code: XC3153-051), contact
your nearest authorized service center.
● Be sure that the shuttle is correctly
installed, otherwise the needle may break.
1
To Next Page
